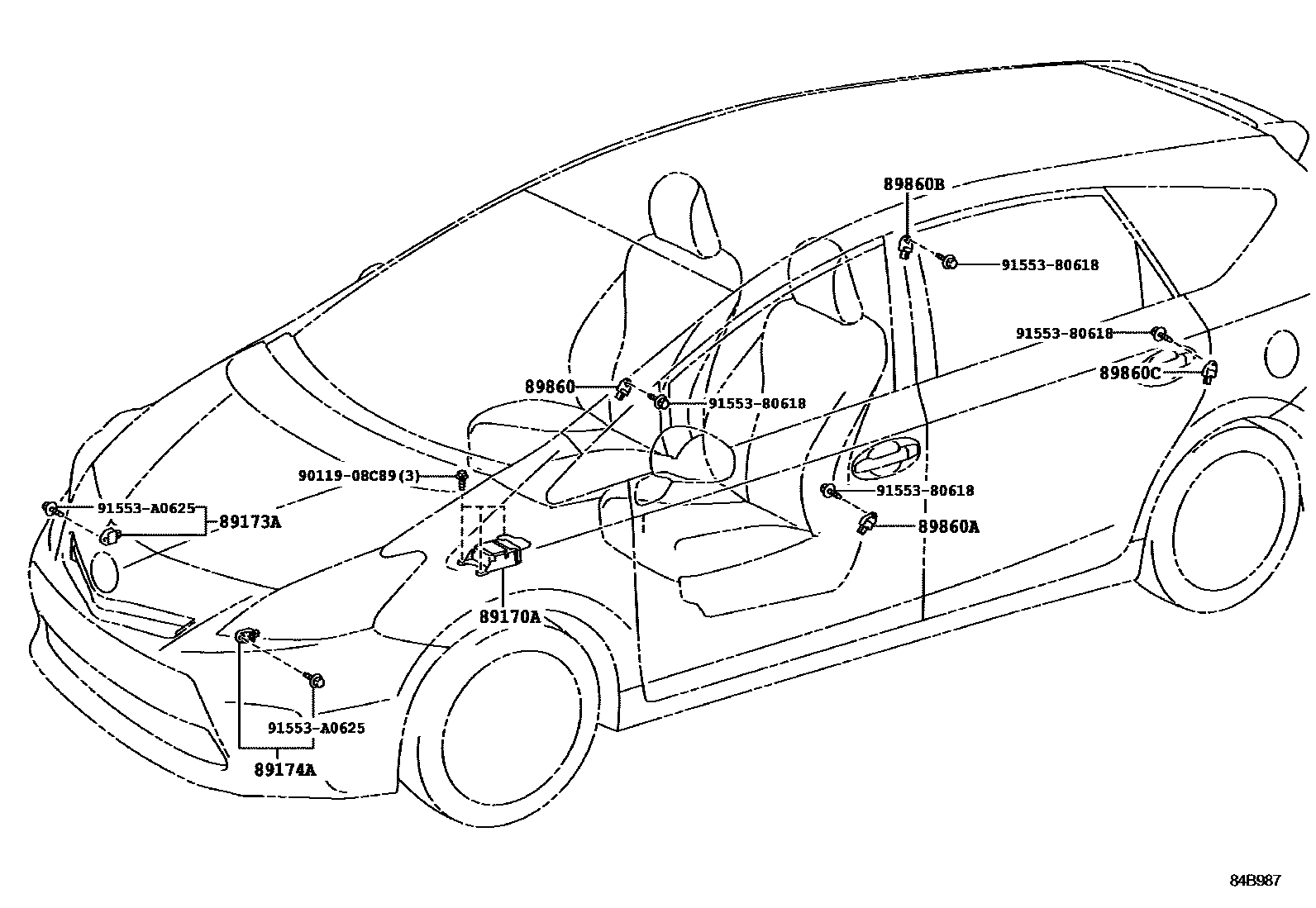

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-47220iZVW40201203-201411

main89170-47570iZVW40201411-201605

main89170-47760iZVW40..RHD201605-202109

main89170-47770supersedes 89170-47760iZVW40..LHD202008-202109

main89170-47580iZVW40..LHD201508-201605

TAIWAN SPEC

89173ASENSOR, AIRBAG, FRONT RH

main89173-19445iZVW40201411-202109

main89173-79025iZVW40201203-201411

89174ASENSOR, AIRBAG, FRONT LH

main89173-19445iZVW40201411-202109

main89173-79025iZVW40201203-201411

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-52020iZVW40201411-202109

main89831-75010iZVW40201203-201411

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-52020iZVW40201411-202109

main89831-75010iZVW40201203-201411

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-30020iZVW40201203-201411

main89831-52030iZVW40201411-202109

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-30020iZVW40201203-201411

main89831-52030iZVW40201411-202109

9011908C89

main90119-08C89

9155380618

main91553-80618

91553A0625

main91553-A0625

10 parts on this diagram · 1 diagram in section
