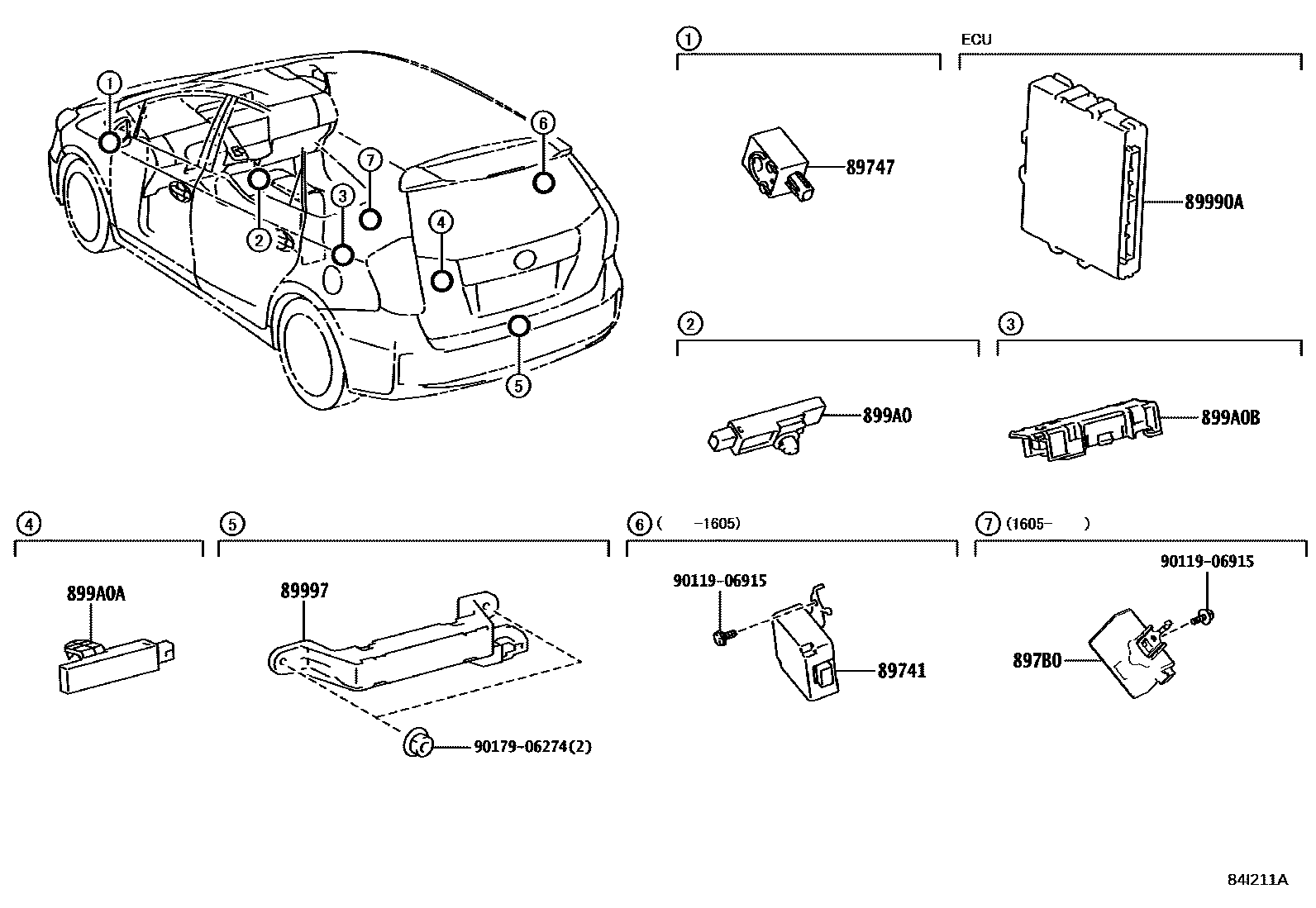

WIRELESS DOOR LOCK

0001 1 0002 1

89741RECEIVER, DOOR CONTROL

main89740-47031iZVW40201411-201605

main89740-47120iZVW40..RHD201411-201605

HONG KONG SPEC

main89740-47240iZVW40..LHD201508-201605

TAIWAN SPEC&SMART ENTRY-W(FRONT & BACK DOOR) & W(PANIC SWITCH)

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iZVW40201203-201411

897B0RECEIVER ASSY, ELECTRICAL KEY & TPMS

main897B0-47120iZVW40..RHD201605

main897B0-47140supersedes 897B0-47120iZVW40..LHD202008

89990ACOMPUTER ASSY, SMART KEY

main89990-47102iZVW40201411-201605

main89990-47310iZVW40201605-201710

sub89990-47311

main89990-47091supersedes 89990-47311iZVW40201203-201411

VALUE PACKAGE

main89990-47092iZVW40..LHD201411-201605

SMART ENTRY-W(DRIVER SIDE ONLY) & W/O(PANIC SWITCH)

main89990-47290iZVW40..LHD201508-201605

TAIWAN SPEC&SMART ENTRY-W(FRONT & BACK DOOR) & W(PANIC SWITCH)

main89990-47300iZVW40..LHD201605-201710

SMART ENTRY-W(DRIVER SIDE ONLY) & W/O(PANIC SWITCH)

main89990-47301iZVW40..LHD201711-202008

SMART ENTRY-W(DRIVER SIDE ONLY) & W/O(PANIC SWITCH)

89997ANTENNA, ELECTRICAL KEY

main89997-30070iZVW40201203-201411

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-47010iZVW40201411-202109

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-47030iZVW40201203-201411

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-47040iZVW40201203-201211

main899A0-47041iZVW40201212-201403

main899A0-47042iZVW40201404-201411

9011906915

main90119-06915

9017906274

main90179-06274

10 parts on this diagram · 2 diagrams in section
