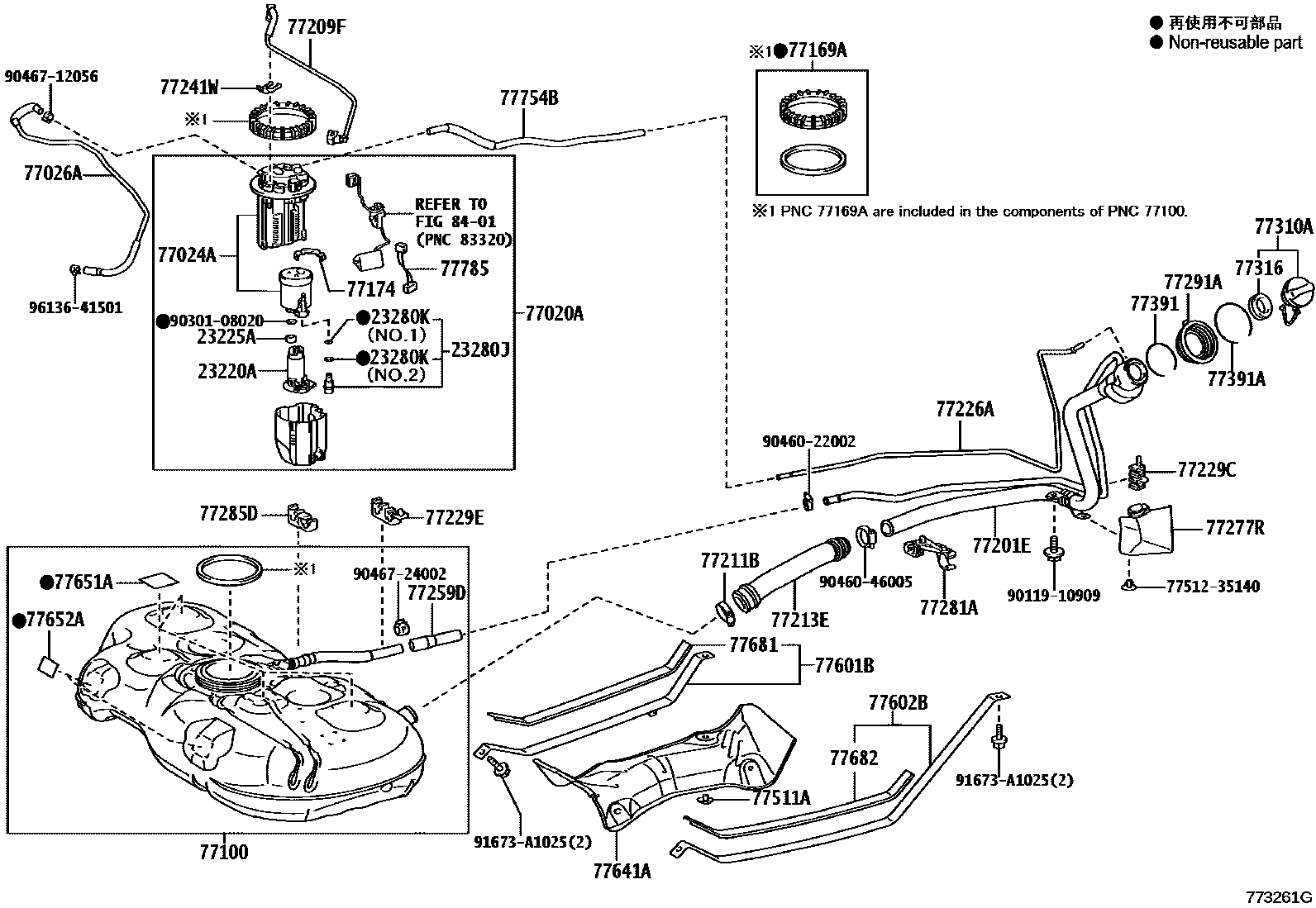

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TUBE 0004 1FUEL LID OPENER 0005 1FUEL LID OPENER

23220APUMP ASSY, FUEL W/FILTER

main23220-21211i2ZRFXE..ZVW40201203-202109

23225ASPACER, FUEL PUMP

main23225-21020i2ZRFXE..ZVW40201203-202109

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i2ZRFXE..ZVW40201203-202109

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i2ZRFXE..ZVW40201203-202109

NO.1

main90301-15024i2ZRFXE..ZVW40201203-202109

NO.2

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-47100iZVW40201203-201311

sub77020-47101

main77020-47101iZVW40201312-201501

sub77020-47102

main77020-47102iZVW40201502-202109

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-47050iZVW40201203-201501

sub77024-47110

main77024-47110iZVW40201502-202109

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-47030iZVW40201203-202109

77100TANK ASSY, FUEL

main77001-47190iZVW40201203-202109

main77001-47250iZVW40201903-202008

77169AGASKET, FUEL SUCTION TUBE SET

main77169-47050iZVW40201903-202008

sub77169-76010

main77169-52040iZVW40201203-202109

77174SUPPORT, FUEL SUCTION, NO.1

main77174-75010iZVW40201203-202109

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-47150iZVW40201203-201411

sub77201-47230

sub77300-12020

main77201-47210iZVW40201411-202109

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-47080iZVW40201203-202109

main77209-47110iZVW40201903-202008

77211BCLAMP (FOR FUEL FILLER PIPE)

main90460-46005iZVW40201903-202008

main90460-50008iZVW40201203-202109

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-47080iZVW40201203-202109

main77213-47130iZVW40201903-202008

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-47080iZVW40201203-201411

sub77226-47140

main77226-47140iZVW40201411-202109

77229CCLAMP, BREATHER TUBE

main77229-12070iZVW40201203-202109

77229ECLAMP, BREATHER TUBE

main77229-47090iZVW40201203-202109

77241WCLIP, TUBE JOINT

main77241-33011iZVW40201203-202107

main77241-60550iZVW40202108-202109

77259DHOSE, FUEL, NO.1

main77259-76010iZVW40201203-202109

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-12180iZVW40201203-202109

77281ACLAMP, FUEL FILLER PIPE

main77281-72010iZVW40201203-202109

77285DCLAMP, FUEL TUBE, NO.1

main77285-47070iZVW40201203-202109

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-47060iZVW40201203-202109

77310ACAP ASSY, FUEL TANK

main77300-12020iZVW40201411-202109

main77300-48020iZVW40201903-202008

main77300-52030iZVW40201203-201411

77316GASKET, FUEL TANK CAP

main77316-52040iZVW40201203-202109

main77316-75020iZVW40201903-202008

77391RING, FUEL INLET BOX

main77391-12020iZVW40201203-202109

77391ARING, FUEL INLET BOX

main77391-75010iZVW40201203-202109

77511ABRACKET, FUEL TANK

main77512-35140iZVW40201203-202109

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-47080iZVW40201203-201505

main77601-47120iZVW40201505-202109

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-47060iZVW40201203-201505

main77602-47110iZVW40201505-202109

77641APROTECTOR, FUEL TANK, NO.1

main77641-47040iZVW40201203-202109

77651ACUSHION, FUEL TANK, NO.1

main77651-12070iZVW40201203-202109

77652ACUSHION, FUEL TANK, NO.2

main77652-47010iZVW40201203-202109

77681SEAT, FUEL TANK BAND, RH

main77681-21010iZVW40201203-202109

77682SEAT, FUEL TANK BAND, LH

main77681-28060iZVW40201203-201505

main77681-47030iZVW40201505-202109

77754BHOSE, CHARCOAL CANISTER OUTLET

main77754-47060iZVW40201203-202109

77785HARNESS, FUEL PUMP

main77785-12010iZVW40201203-202109

8401

7751235140BRACKET, FUEL TANK, REAR

main77512-35140

9011910909

main90119-10909

9030108020

main90301-08020

9046022002

main90460-22002

9046046005

main90460-46005

9046712056

main90467-12056

9046724002

main90467-24002

91673A1025

main91673-A1025

9613641501

main96136-41501

47 parts on this diagram · 5 diagrams in section
