EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75301AEMBLEM SUB-ASSY, FRONT BUMPER

main53141-33140iZVW40..LHD201712-202109

main75310-33050iZVW40..RHD202008-202109

main53141-47011iZVW40201709-201712

PRE-COLLISION SYSTEM-WITH

main53141-47012iZVW40201203-201411

PRE-COLLISION SYSTEM-WITH

sub53141-47011

75374EMBLEM, SIDE PANEL

main75374-47061iZVW40201203-202008

LH

sub75374-47062

main75374-47062iZVW40202008-202109

LH

main75374-47111iZVW40201203-202008

RH

sub75374-47112

main75374-47112iZVW40202008-202109

RH

75431AEMBLEM, BACK DOOR, NO.1

main75310-47020iZVW40201203-202109

75441DPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75441-47070iZVW40..RHD201203-201712

TOYOTA,NEW ZEALAND SPEC

75441EPLATE, BACK DOOR NAME, NO.1

main75441-47021iZVW40201203-201712

HYBRID SYNERGY DRIVE

main75441-47130iZVW40201712-202109

HYBRID S

75442APLATE, BACK DOOR NAME, NO.2

main75442-47050iZVW40..LHD202008-202109

main75442-47080iZVW40201203-201411

PRIUS +

main75442-47060iZVW40..RHD201203-201411

PRIUS V,NEW ZEALAND SPEC

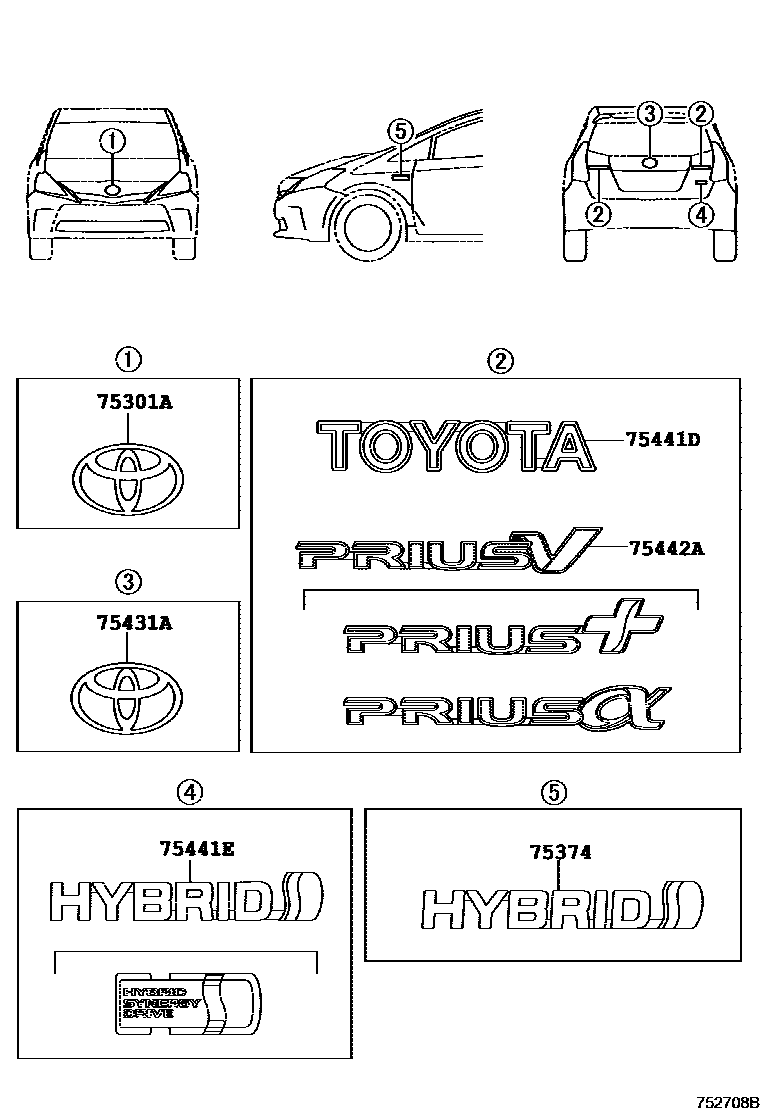

6 parts on this diagram · 1 diagram in section
