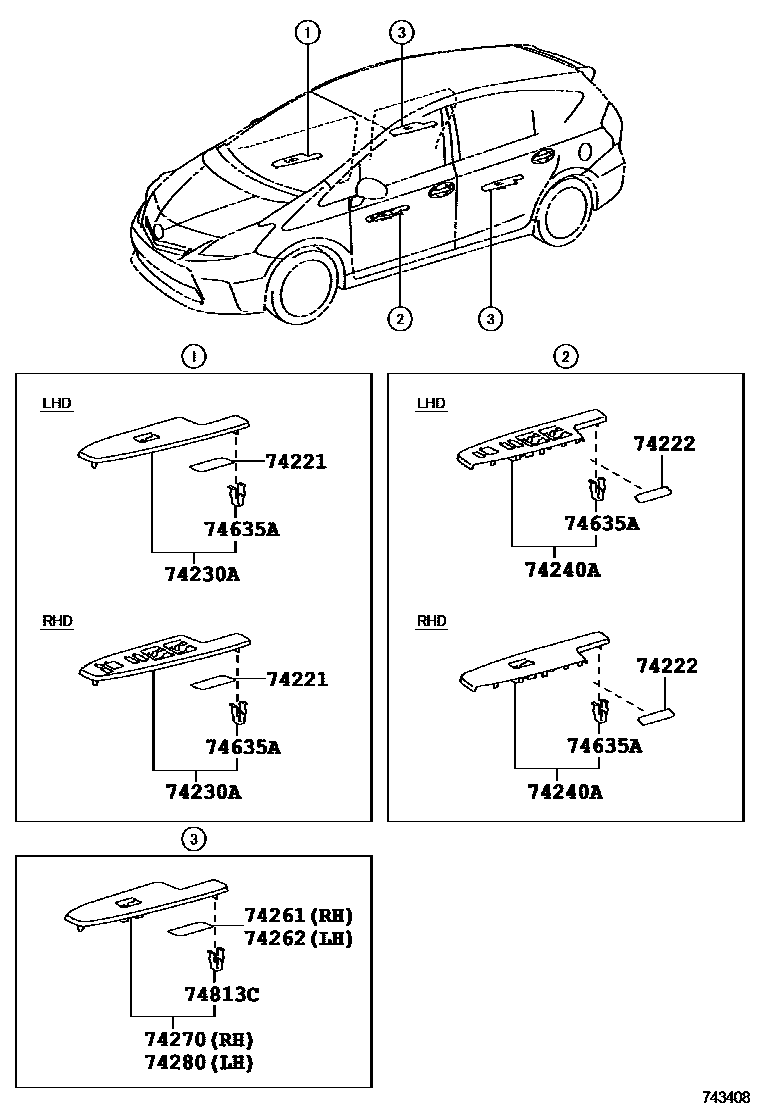

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74221COVER, DOOR ARMREST, RH

main74221-47030iZVW40201203-201411

74222COVER, DOOR ARMREST, LH

main74221-47030iZVW40201203-201411

74230APANEL ASSY, FRONT DOOR ARMREST BASE, RH

main74231-47140iZVW40..RHD201203-201411

main74231-47160iZVW40..LHD201203-201411

main74231-47250iZVW40..RHD201411-202109

main74231-47270iZVW40..LHD201411-202109

74240APANEL ASSY, FRONT DOOR ARMREST BASE, LH

main74232-47110iZVW40..RHD201203-201411

main74232-47130iZVW40..LHD201203-201411

main74232-47220iZVW40..RHD201411-202109

main74232-47240iZVW40..LHD201411-202109

74261COVER, REAR DOOR ARMREST, RH

main74221-47030iZVW40201203-201411

74262COVER, REAR DOOR ARMREST, LH

main74221-47030iZVW40201203-201411

74270PANEL ASSY, REAR DOOR ARMREST BASE, RH

main74271-47070iZVW40201203-201411

main74271-47140iZVW40201411-202109

74280PANEL ASSY, REAR DOOR ARMREST BASE, LH

main74272-47070iZVW40201203-201411

main74272-47140iZVW40201411-202109

74635ACLIP

main90467-12080×2iZVW40201203-201411

74813CCLIP

main90467-12080×2iZVW40201203-201411

10 parts on this diagram · 2 diagrams in section
