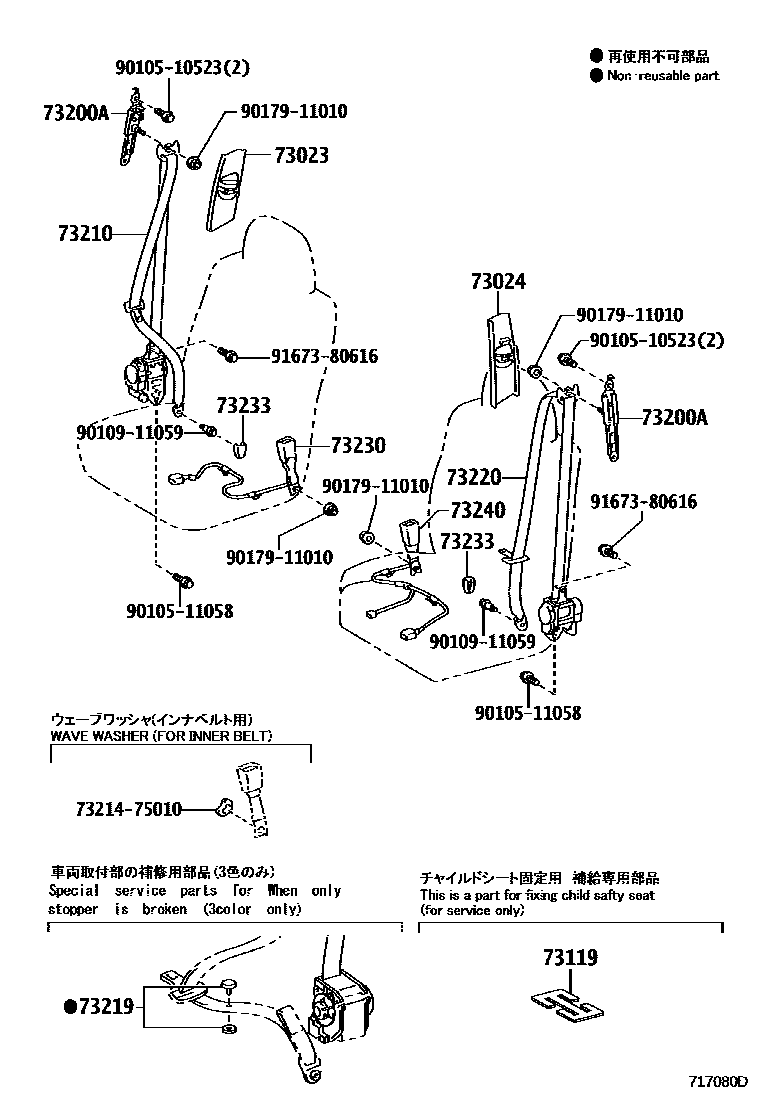

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR NO.1 SEAT 0003 1REAR NO.2 SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-53020-B0iZVW40201411-202109

LT.GRAY,TRIM1#,2#

main73023-53020-B0iZVW40201203-201411

LT.GRAY,TRIM1#,6#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-53020-B0iZVW40201203-201411

LT.GRAY,TRIM1#,6#

main73024-53020-B0iZVW40201411-202109

LT.GRAY,TRIM1#,2#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iZVW40201203-202109

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070iZVW40201507-202109

main73200-53010iZVW40201203-201506

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-47190-B0iZVW40201203-201301

BLACK,TRIM1#

sub73210-47191

main73210-47190-B1iZVW40201203-201301

GRAY,TRIM6#

sub73210-47191

main73210-47191-B0iZVW40201302-201411

BLACK,TRIM1#

main73210-47191-B1iZVW40201302-201411

GRAY,TRIM6#

main73210-47310-B0iZVW40201411-201507

BLACK,TRIM1#,2#

sub73210-47311

main73210-47311-B0iZVW40201508-202109

BLACK,TRIM1#,2#

73219STOPPER, TONGUE PLATE

main73219-33010iZVW40201203-202109

BLACK

main73219-33020iZVW40201203-202109

GRAY

main73219-33030iZVW40201203-202109

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-47160-B0iZVW40201203-201301

BLACK,TRIM1#

sub73220-47161

main73220-47160-B1iZVW40201203-201301

GRAY,TRIM6#

sub73220-47161

main73220-47161-B0iZVW40201302-201411

BLACK,TRIM1#

main73220-47161-B1iZVW40201302-201411

GRAY,TRIM6#

main73220-47250-B0iZVW40201411-201507

BLACK,TRIM1#,2#

sub73220-47251

main73220-47251-B0iZVW40201508-202109

BLACK,TRIM1#,2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-47150-C0iZVW40..RHD201203-201411

BLACK,TRIM1#

sub73230-47110

main73230-47150-G0iZVW40..RHD201203-201411

AQUA,TRIM6#

sub73230-47110

main73230-47380-C0iZVW40..RHD201411-202109

BLACK,TRIM1#,2#

main73240-47090-C0iZVW40..LHD201203-201411

BLACK,TRIM1#

main73240-47090-G0iZVW40..LHD201203-201411

AQUA,TRIM6#

main73240-47140-C0iZVW40..LHD201411-202109

BLACK,TRIM1#,2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C0iZVW40201203-201411

BLACK,TRIM1#,6#

sub73233-60020

sub73233-35010

main73233-60020-C0iZVW40201411-201610

BLACK,TRIM1#,2#

sub73233-60020

sub73233-35010

main73233-60020-C1iZVW40201610-202109

BLACK,TRIM1#,2#

sub73233-60020

sub73233-35010

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-47170-C0iZVW40..LHD201203-201411

BLACK,TRIM1#

main73230-47170-G0iZVW40..LHD201203-201411

AQUA,TRIM6#

main73230-47380-C0iZVW40..LHD201411-202008

BLACK,TRIM1#,2#

main73230-47540-C0iZVW40..LHD202008-202109

BLACK,TRIM1#,2#

main73240-47060-C0iZVW40..RHD201203-201411

BLACK,TRIM1#

main73240-47060-G0iZVW40..RHD201203-201411

AQUA,TRIM6#

main73240-47140-C0iZVW40..RHD201411-202109

BLACK,TRIM1#,2#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010511058

main90105-11058

9010911059

main90109-11059

9017911010

main90179-11010

9167380616

main91673-80616

16 parts on this diagram · 3 diagrams in section
