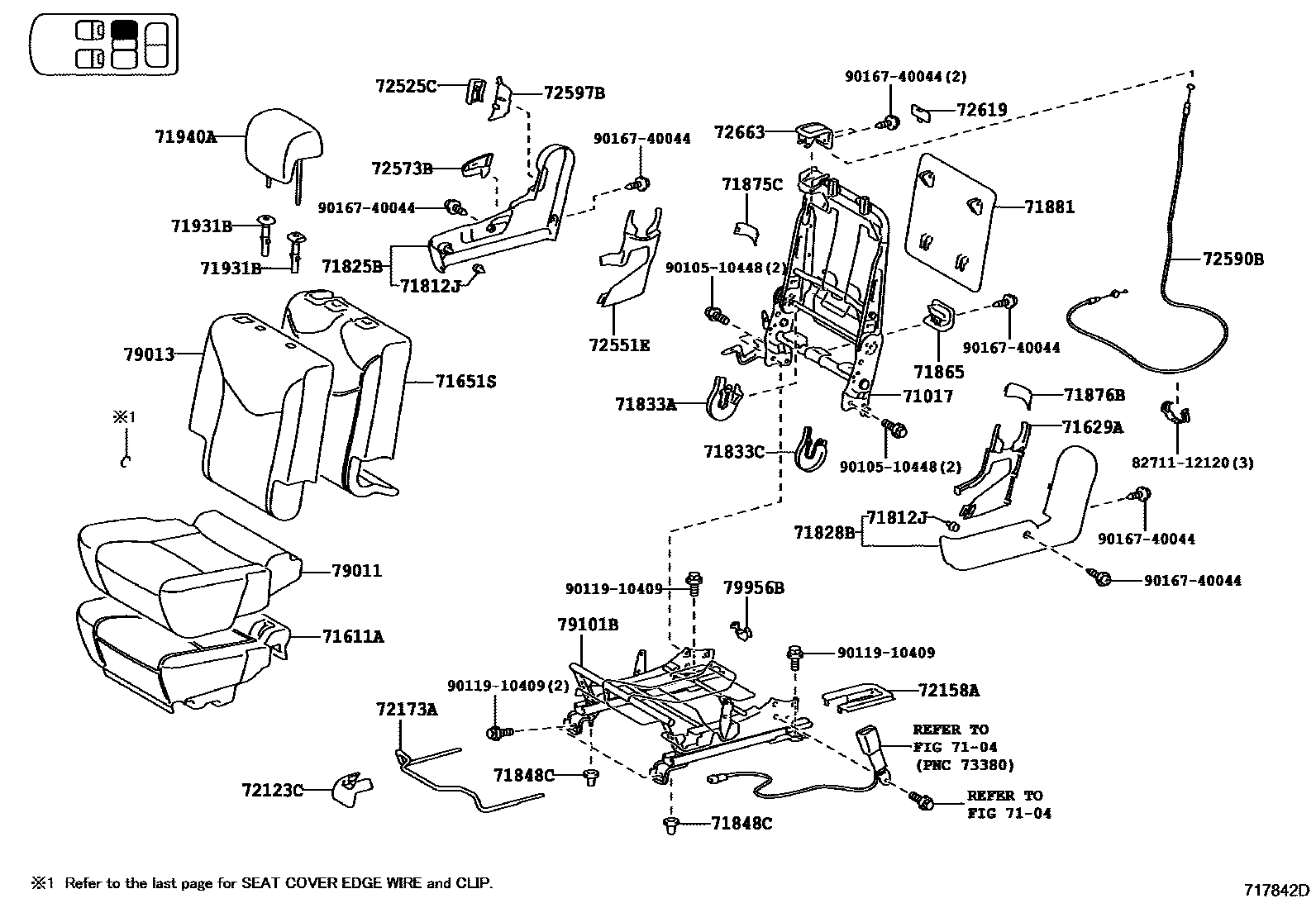

REAR SEAT & SEAT TRACK

0001 1REAR NO.1 SEAT,RH 0002 1REAR NO.1 SEAT,CENTER 0003 1REAR NO.1 SEAT,LH 0004 1REAR NO.2 SEAT 0005 1SEAT COVER EDGE WIRE & CLIP 0006 1SEAT COVER EDGE WIRE & CLIP

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-47210iZVW40201203-202109

7104

71611APAD, REAR SEAT CUSHION, RH

main71611-47070iZVW40201203-202109

71629ACOVER, REAR SEAT CUSHION HINGE, RH

main71629-47020-B0iZVW40201203-201411

DK.GRAY,TRIM1#

sub71629-47020

main71629-47020-C0iZVW40201411-202109

BLACK,TRIM1#,2#

sub71629-47020

main71629-47020-G0iZVW40201203-201411

AQUA,TRIM6#

sub71629-47020

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-47110iZVW40201203-202109

71812JCLIP, REAR SEAT COVER

main71769-47020iZVW40¥80201207-202109

71825BMOULDING, REAR SEAT CUSHION, RH

main71825-47030-B0iZVW40201203-201411

DK.GRAY,TRIM1#

sub71825-47030

main71825-47030-C0iZVW40201411-202109

BLACK,TRIM1#,2#

sub71825-47030

main71825-47030-G0iZVW40201203-201411

AQUA,TRIM6#

sub71825-47030

71828BMOULDING, REAR SEAT CUSHION, REAR RH

main71828-47020-B0iZVW40201203-201411

DK.GRAY,TRIM1#

sub71828-47020

main71828-47020-C0iZVW40201411-202109

BLACK,TRIM1#,2#

sub71828-47020

main71828-47020-G0iZVW40201203-201411

AQUA,TRIM6#

sub71828-47020

71833ACOVER, REAR SEAT RECLINING, NO.1 RH

main71833-47020-B1iZVW40201203-201411

DK.GRAY,TRIM1#

sub71833-47020¥1,710

main71833-47020-C0iZVW40201411-202109

BLACK,TRIM1#,2#

sub71833-47020¥1,710

main71833-47020-G0iZVW40201203-201411

AQUA,TRIM6#

sub71833-47020¥1,710

71833CCOVER, REAR SEAT RECLINING, NO.2 RH

main71834-47050-B0iZVW40201203-201411

DK.GRAY,TRIM1#

sub71834-47050

main71834-47050-C0iZVW40201411-202109

BLACK,TRIM1#,2#

sub71834-47050

main71834-47050-G0iZVW40201203-201411

AQUA,TRIM6#

sub71834-47050

71848CCAP, SEAT ADJUSTER COVER, RH

main71848-47020iZVW40201203-202109

71865BEZEL, REAR SEAT COVER, NO.1

main71865-47010-B0iZVW40201203-201411

DK.GRAY,TRIM1#,6#

main71865-47010-C0iZVW40201411-202109

BLACK,TRIM1#,2#

71875CCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-47050-B1iZVW40201203-201411

DK.GRAY,TRIM1#

sub71875-47050¥360

main71875-47050-C0iZVW40201411-202109

BLACK,TRIM1#,2#

sub71875-47050¥360

main71875-47050-G0iZVW40201203-201411

AQUA,TRIM6#

sub71875-47050¥360

71876BCOVER, RECLINING ADJUSTER INSIDE, LH

main71876-47050-B1iZVW40201203-201411

DK.GRAY,TRIM1#

sub71876-47050¥360

main71876-47050-C0iZVW40201411-202109

BLACK,TRIM1#,2#

sub71876-47050¥360

main71876-47050-G0iZVW40201203-201411

AQUA,TRIM6#

sub71876-47050¥360

71881BOARD, REAR SEATBACK, RH

main71881-47020-B0iZVW40201203-201411

DK.GRAY,TRIM1#

sub71881-47020

main71881-47020-B1iZVW40201411-202109

MD.GRAY,TRIM19

sub71881-47020

main71881-47020-C0iZVW40201411-202109

BLACK,TRIM19,2#

sub71881-47020

main71881-47020-G0iZVW40201203-201411

AQUA,TRIM6#

sub71881-47020

71931BSUPPORT ASSY, REAR NO.1 SEAT HEADREST

main71930-44020-21iZVW40201710-202109

W(LOCK),BLACK,TRIM2#

sub71930-44020¥1,260

sub71930-02370¥770

main71930-44020-B0iZVW40201203-201411

W(LOCK),DK.GRAY,TRIM1#

sub71930-44020¥1,260

sub71930-02370¥770

main71930-44020-B1iZVW40201411-202109

W(LOCK),MD.GRAY,TRIM1#

sub71930-44020¥1,260

sub71930-02370¥770

main71930-44020-C0iZVW40201411-201710

W(LOCK),BLACK,TRIM2#

sub71930-44020¥1,260

sub71930-02370¥770

main71930-44020-G0iZVW40201203-201411

W(LOCK),AQUA,TRIM6#

sub71930-44020¥1,260

sub71930-02370¥770

main71931-47010-B2iZVW40201203-201411

W/O(LOCK),DK.GRAY,TRIM1#

sub71931-47010¥480

sub71931-42020¥590

main71931-47010-B8iZVW40201411-202109

W/O(LOCK),MD.GRAY,TRIM1#

sub71931-47010¥480

sub71931-42020¥590

main71931-47010-C0iZVW40201411-201710

W/O(LOCK),BLACK,TRIM2#

sub71931-47010¥480

sub71931-42020¥590

main71931-47010-C8iZVW40201710-202109

W/O(LOCK),BLACK,TRIM2#

sub71931-47010¥480

sub71931-42020¥590

main71931-47010-G0iZVW40201203-201411

W/O(LOCK),AQUA,TRIM6#

sub71931-47010¥480

sub71931-42020¥590

71940AHEADREST ASSY, REAR SEAT

main71940-47200-B2iZVW40..LHD201712-202109

GRAY,TRIM1#

main71940-47200-C0iZVW40..LHD201712-202109

BLACK,TRIM2#

main71940-47280-B0iZVW40201203-201411

GRAY,TRIM1#

main71940-47280-G0iZVW40201203-201411

AQUA,TRIM6#

main71940-47420-B0iZVW40201411-201712

GRAY,TRIM1#

main71940-47420-C0iZVW40201411-201712

BLACK,TRIM2#

main71940-47451-B3iZVW40..LHD202008-202109

GRAY,TRIM1#

main71940-47451-C4iZVW40..LHD202008-202109

BLACK,TRIM2#

72123CCOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-47030-C0iZVW40201203-201411

BLACK,TRIM1#,6#

main72123-47030-C0iZVW40201411-202109

BLACK,TRIM1#,2#

72158ACOVER, REAR SEAT TRACK BRACKET, INNER LH

main72157-47070-C0iZVW40201203-201411

BLACK,TRIM1#,6#

main72157-47070-C0iZVW40201411-202109

BLACK,TRIM1#,2#

72173HANDLE, REAR SEAT TRACK ADJUSTING

main72173-47030iZVW40201203-202109

72173AHANDLE, REAR SEAT TRACK ADJUSTING, RH

main72173-47020iZVW40201203-202109

72525CHANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH

main72525-47030-B1iZVW40201203-201411

DK.GRAY,TRIM1#

sub72525-47030¥740

main72525-47030-C0iZVW40201411-202109

BLACK,TRIM1#,2#

sub72525-47030¥740

main72525-47030-G0iZVW40201203-201411

AQUA,TRIM6#

sub72525-47030¥740

72551ECOVER, RECLINING HINGE, RH

main72551-47020-B0iZVW40201203-201411

DK.GRAY,TRIM1#

sub72551-47020

main72551-47020-C0iZVW40201411-202109

BLACK,TRIM1#,2#

sub72551-47020

main72551-47020-G0iZVW40201203-201411

AQUA,TRIM6#

sub72551-47020

72573BLEVER, RECLINING CONTROL, RH

main72573-47010-B1iZVW40201203-201411

DK.GRAY,TRIM1#

sub72573-47010¥940

main72573-47010-C0iZVW40201411-202109

BLACK,TRIM1#,2#

sub72573-47010¥940

main72573-47010-G0iZVW40201203-201411

AQUA,TRIM6#

sub72573-47010¥940

72590BCABLE ASSY, RECLINING REMOTE CONTROL

main72590-47040iZVW40201203-202109

72597BBEZEL, RECLINING REMOTE CONTROL LEVER, NO.1

main72597-47010-B1iZVW40201203-201411

DK.GRAY,TRIM1#

sub72597-47010¥940

main72597-47010-C0iZVW40201411-202109

BLACK,TRIM1#,2#

sub72597-47010¥940

main72597-47010-G0iZVW40201203-201411

AQUA,TRIM6#

sub72597-47010¥940

72619COVER, REAR SEATBACK LOCK STRIKER

main72615-47010-B0iZVW40201411-202109

MD.GRAY,TRIM19

main72615-47010-B1iZVW40201203-201411

DK.GRAY,TRIM1#

main72615-47010-C0iZVW40201411-202109

BLACK,TRIM19,2#

main72615-47010-G0iZVW40201203-201411

AQUA,TRIM6#

72663LEVER, REAR SEAT LOCK CONTROL, NO.1

main72057-47010-B0iZVW40201712-202109

MD.GRAY,TRIM19

sub72057-47010¥3,370

main72057-47010-B0iZVW40201411-201712

MD.GRAY,TRIM1#

sub72057-47010¥3,370

main72057-47010-B1iZVW40201203-201411

DK.GRAY,TRIM1#

sub72057-47010¥3,370

main72057-47010-C0iZVW40201712-202109

BLACK,TRIM19,2#

sub72057-47010¥3,370

main72057-47010-G0iZVW40201203-201411

AQUA,TRIM6#

sub72057-47010¥3,370

79011COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

main79011-47050-B0iZVW40201203-201411

GRAY,TRIM1#

sub79011-47051

main79011-47050-G1iZVW40201203-201411

AQUA,TRIM6#

sub79011-47051

main79011-47141-B3iZVW40201712-202008

GRAY,TRIM1#

main79011-47141-C3iZVW40201712-202008

BLACK,TRIM2#

main79011-47142-B4iZVW40..RHD202008-202109

GRAY,TRIM1#

sub79011-47143

main79011-47142-C4iZVW40..RHD202008-202109

BLACK,TRIM2#

sub79011-47143

main79011-47150-B2iZVW40201411-201712

GRAY,TRIM1#

sub79011-47400

main79011-47150-C3iZVW40201411-201712

BLACK,TRIM2#

sub79011-47400

main79011-47162-B4iZVW40..LHD202008-202109

GRAY,TRIM1#

sub79011-47163

main79011-47162-C5iZVW40..LHD202008-202109

BLACK,TRIM2#

sub79011-47163

79013COVER SUB-ASSY, NO.1 SEATBACK, RH

main79013-47100-B0iZVW40201203-201308

GRAY,TRIM1#

sub79013-47100

main79013-47100-B1iZVW40201308-201411

GRAY,TRIM1#

sub79013-47100

main79013-47100-G0iZVW40201203-201308

AQUA,TRIM6#

sub79013-47100

main79013-47100-G1iZVW40201308-201411

AQUA,TRIM6#

sub79013-47100

main79013-47250-B5iZVW40201712-202008

GRAY,TRIM1#

main79013-47250-C3iZVW40201712-202008

BLACK,TRIM2#

main79013-47251-B6iZVW40..RHD202008-202109

GRAY,TRIM1#

sub79013-47252

main79013-47251-C4iZVW40..RHD202008-202109

BLACK,TRIM2#

sub79013-47252

main79013-47260-B4iZVW40201411-201712

GRAY,TRIM1#

main79013-47260-C4iZVW40201411-201712

BLACK,TRIM2#

main79013-47271-B6iZVW40..LHD202008-202109

GRAY,TRIM1#

sub79013-47272

main79013-47271-C6iZVW40..LHD202008-202109

BLACK,TRIM2#

sub79013-47272

79101BFRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

main79101-47030iZVW40201203-202109

79956BCOVER, REAR SEAT LEG SIDE, RH

main79956-47010iZVW40¥220201203-202109

8271112120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12120¥190

9010510448

main90105-10448¥110

9011910409

main90119-10409¥110

9016740044

main90167-40044¥70

36 parts on this diagram · 6 diagrams in section
