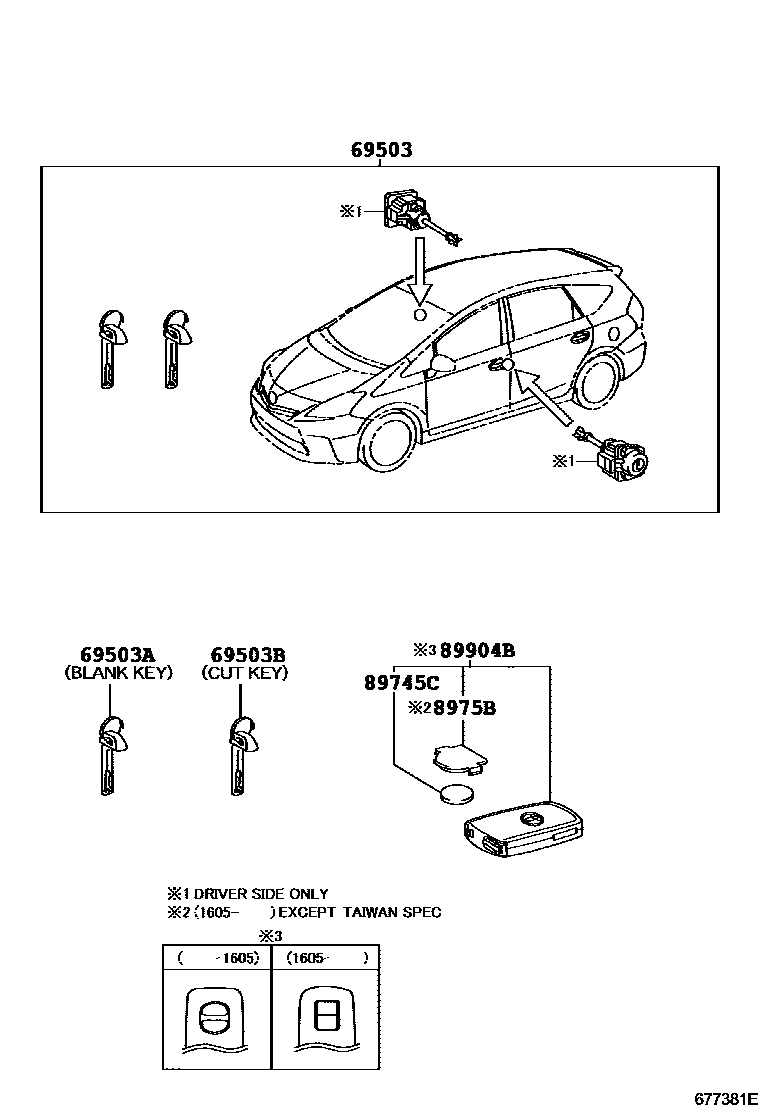

LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-47200iZVW40..RHD201203-201605

main69005-47210iZVW40..LHD201203-201605

main69005-47280iZVW40..RHD201605-202109

main69005-47290iZVW40..LHD201605-202109

69503AKEY, BLANK

main69515-33100iZVW40201605-202109

MASTER KEY,W(*68)

main69515-52120iZVW40201203-201605

MASTER KEY,W(*68)

69503BKEY, CUT

main69515-33090iZVW40201605-202109

MASTER KEY,W(*68)

main69515-52110iZVW40201203-201605

MASTER KEY,W(*68)

89745CBATTERY, TRANSMITTER

main89745-45010iZVW40..LHD202008-202109

CR2032

sub89745-50020

main89745-50020iZVW40..LHD201605-202109

CR2032

main89745-52030iZVW40201203-201411

CR1632

main89745-52030iZVW40201411-201605

8975BCOVER, TRANSMITTER BATTERY HOUSING

main8975B-33010iZVW40..RHD201605-202008

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-12370iZVW40..LHD201605-202109

REFER TO ILLUST.

main89904-47190iZVW40201411-201605

REFER TO ILLUST.

main89904-47190iZVW40201203-201411

main89904-47620iZVW40..LHD202008-202109

REFER TO ILLUST.

6 parts on this diagram · 1 diagram in section
