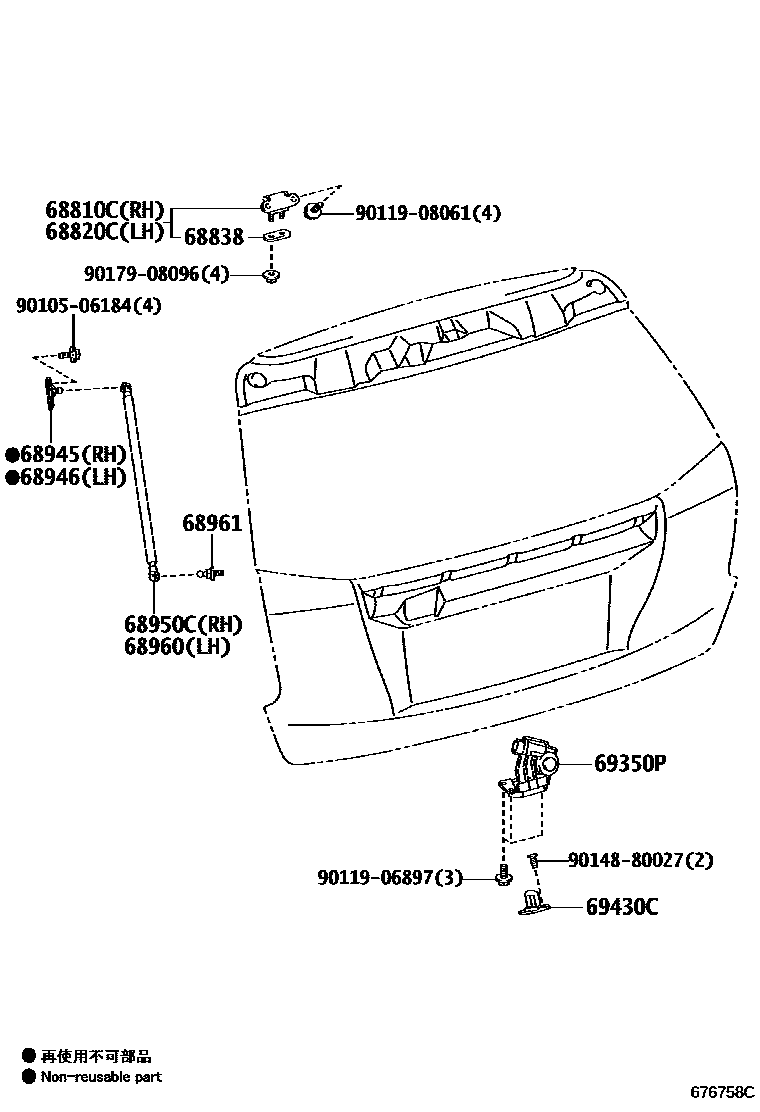

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-21050iZVW40201203-201411

68820CHINGE ASSY, BACK DOOR, LH

main68810-21050iZVW40201203-201411

68838PAD, BACK DOOR HINGE, NO.1

main68838-32010×2iZVW40201411-202109

T=2.0

main68838-44020×2iZVW40201203-201411

T=1.0

main68838-52020×2iZVW40201203-201411

T=1.6

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-47030iZVW40201203-201411

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-47020iZVW40201411-202109

68950CSTAY ASSY, BACK DOOR, RH

main68950-0W790iZVW40201308-201411

main68950-47051iZVW40201203-201308

68960STAY ASSY, BACK DOOR, LH

main68960-0W790iZVW40201308-201411

main68960-47051iZVW40201203-201308

68961BOLT, BACK DOOR STAY

main68961-20140×2iZVW40201203-201411

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-28150iZVW40201203-201411

main69350-28151iZVW40201601-202109

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-28050iZVW40201203-201411

9010506184

main90105-06184

9011906897

main90119-06897

9011908061

main90119-08061

9014880027

main90148-80027

9017908096

main90179-08096

15 parts on this diagram · 1 diagram in section
