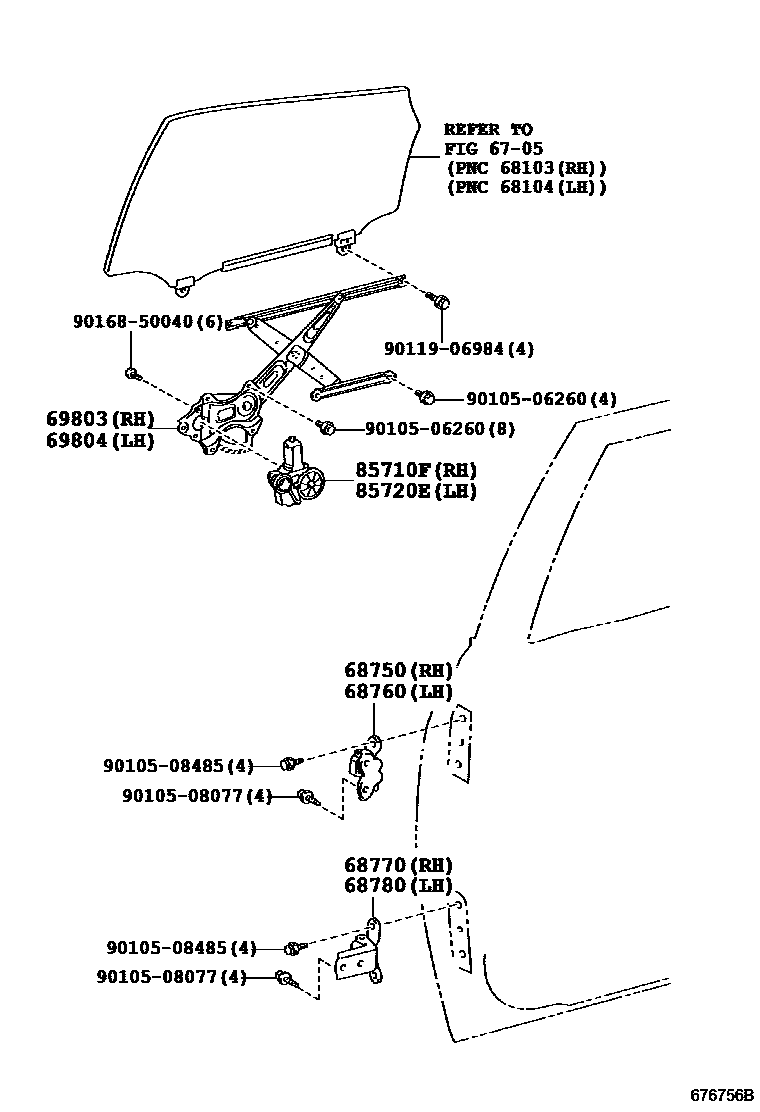

REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20121iZVW40201203-201205

main68750-20122iZVW40201206-201411

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20121iZVW40201203-201205

main68760-20122iZVW40201206-201411

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52031iZVW40201203-201411

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52031iZVW40201203-201411

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69801-21020iZVW40201203-201411

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69802-21010iZVW40201203-201411

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-47070iZVW40201203-201208

main85710-47130iZVW40201209-201411

main85710-47160iZVW40201411-202109

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-47070iZVW40201203-201208

main85720-47130iZVW40201209-201411

main85720-47170iZVW40201411-202109

9010506260

main90105-06260

9010508077

main90105-08077

9010508485

main90105-08485

9011906984

main90119-06984

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
