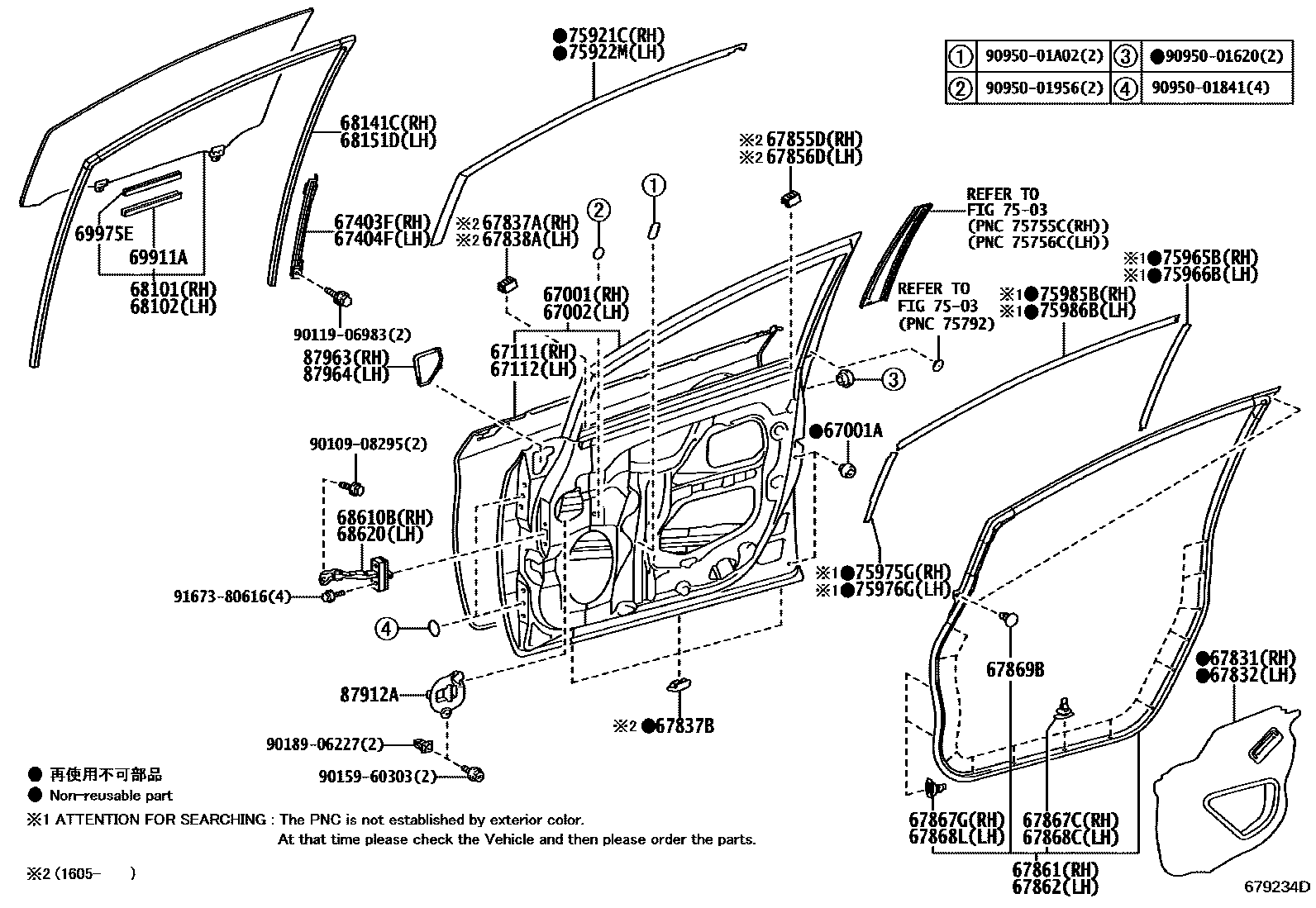

FRONT DOOR PANEL & GLASS
67001ACUSHION, FRONT DOOR PANEL
sub90541-09124
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67837ASEAL, FRONT DOOR VENT, RH
67837BSEAL, FRONT DOOR DUST PROOF
67838ASEAL, FRONT DOOR VENT, LH
67855DPROTECTOR, FRONT DOOR PANEL, RH
67856DPROTECTOR, FRONT DOOR PANEL, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67867GRETAINER, DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67868LRETAINER, DOOR WEATHERSTRIP, LH
67869BCLIP, FRONT DOOR WEATHERSTRIP
68101GLASS SUB-ASSY, FRONT DOOR, RH
68102GLASS SUB-ASSY, FRONT DOOR, LH
68610BCHECK ASSY, FRONT DOOR, RH
68620CHECK ASSY, FRONT DOOR, LH
69911ACHANNEL, FRONT DOOR GLASS, NO.1
69975EFILLER, FRONT DOOR GLASS CHANNEL, NO.1
7503
75921CTAPE, BLACK OUT, NO.1 RH
75922MTAPE, BLACK OUT, NO.1 LH
75965BSTRIPE, FRONT DOOR NO.4 RH
REFER TO ILLUST.
75966BSTRIPE, FRONT DOOR NO.4 LH
REFER TO ILLUST.
75975GSTRIPE, FRONT DOOR, NO.2 RH
REFER TO ILLUST.
75976GSTRIPE, FRONT DOOR, NO.2 LH
REFER TO ILLUST.
75985BSTRIPE, FRONT DOOR, NO.3 RH
REFER TO ILLUST.
75986BSTRIPE, FRONT DOOR, NO.3 LH
REFER TO ILLUST.
87912APROTECTOR, OUTER MIRROR
RH
LH
87963COVER, OUTER MIRROR INSTALL HOLE, RH
87964COVER, OUTER MIRROR INSTALL HOLE, LH
9010908295
main90109-08295
9011906983
main90119-06983
9015960303
main90159-60303
9018906227
main90189-06227
9095001620
main90950-01620
9095001841
main90950-01841
9095001956
main90950-01956
9095001A02
main90950-01A02
9167380616
main91673-80616
50 parts on this diagram · 2 diagrams in section
