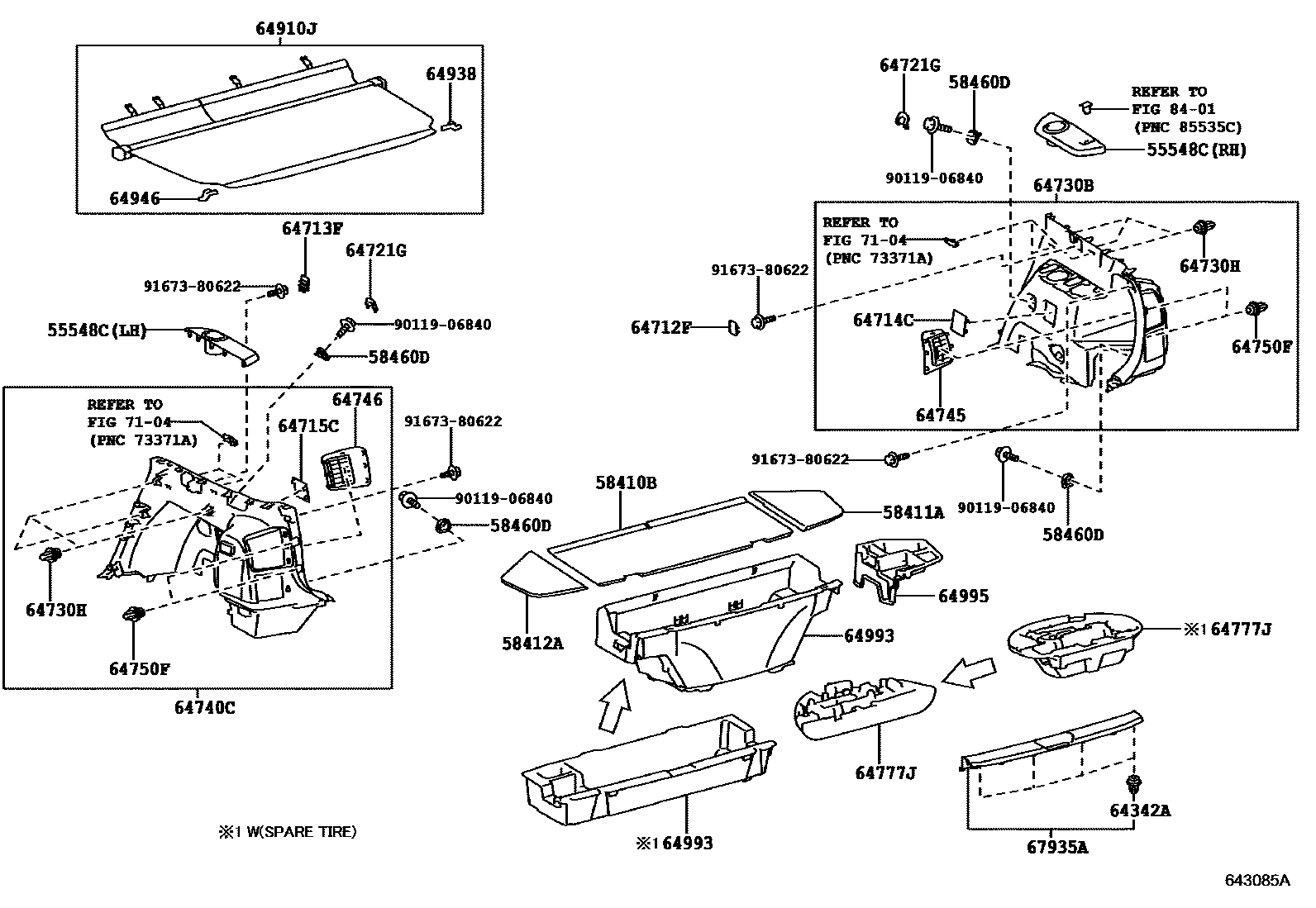

DECK BOARD & DECK TRIM COVER

55548CHOLDER, CUP

main66991-47010-B0iZVW40201203-201411

MD.GRAY,TRIM1#,RH

main66991-47010-B1iZVW40201411-202109

GRAY,TRIM1#,RH

main66991-47010-C0iZVW40201411-202109

BLACK,TRIM2#,RH

main66991-47010-G0iZVW40201203-201411

AQUA,TRIM6#,RH

main66992-47010-B0iZVW40201203-201411

MD.GRAY,TRIM1#,LH

main66992-47010-B1iZVW40201411-202109

GRAY,TRIM1#,LH

main66992-47010-C0iZVW40201411-202109

BLACK,TRIM2#,LH

main66992-47010-G0iZVW40201203-201411

AQUA,TRIM6#,LH

58410BBOARD ASSY, DECK

main58410-47010-B1iZVW40201203-201405

DARK GRAY,TRIM1#

main58410-47010-G2iZVW40201203-201405

AQUA,TRIM6#

main58410-47011-B1iZVW40201405-202109

DARK GRAY,TRIM1#

main58410-47011-C0iZVW40201411-202109

BLACK,TRIM2#

main58410-47011-G2iZVW40201405-201411

AQUA,TRIM6#

58411ABOARD, DECK, NO.1

main58411-47010-B1iZVW40201203-202109

DARK GRAY,TRIM1#

main58411-47010-C0iZVW40201411-202109

BLACK,TRIM2#

main58411-47010-G2iZVW40201203-201411

AQUA,TRIM6#

58412ABOARD, DECK, NO.2

main58412-47010-B1iZVW40201203-202109

DARK GRAY,TRIM1#

main58412-47010-C0iZVW40201411-202109

BLACK,TRIM2#

main58412-47010-G2iZVW40201203-201411

AQUA,TRIM6#

58460DSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020iZVW40201203-202109

64342ACLIP

main90467-10161iZVW40201203-202109

64712FCOVER, DECK SIDE TRIM, FRONT RH

main64712-47010-B0iZVW40201203-201411

MD.GRAY,TRIM1#

main64712-47010-B1iZVW40201411-202109

GRAY,TRIM1#

main64712-47010-C0iZVW40201411-202109

BLACK,TRIM2#

main64712-47010-G0iZVW40201203-201411

AQUA,TRIM6#

64713FCOVER, DECK SIDE TRIM, FRONT LH

main64712-47010-B0iZVW40201203-201411

MD.GRAY,TRIM1#

main64712-47010-B1iZVW40201411-202109

GRAY,TRIM1#

main64712-47010-C0iZVW40201411-202109

BLACK,TRIM2#

main64712-47010-G0iZVW40201203-201411

AQUA,TRIM6#

64714CCOVER, DECK SIDE TRIM, RH

main64714-47040-B0iZVW40201203-201411

MD.GRAY,TRIM1#

main64714-47040-B1iZVW40201411-202109

GRAY,TRIM1#

main64714-47040-C0iZVW40201411-202109

BLACK,TRIM2#

main64714-47040-G0iZVW40201203-201411

AQUA,TRIM6#

64715CCOVER, DECK SIDE TRIM, LH

main64715-47040-B0iZVW40201203-201411

MD.GRAY,TRIM1#

main64715-47040-B1iZVW40201411-202109

GRAY,TRIM1#

main64715-47040-C0iZVW40201411-202109

BLACK,TRIM2#

main64715-47040-G0iZVW40201203-201411

AQUA,TRIM6#

64721GCOVER, DECK TRIM, NO.1

main64721-47020-B0iZVW40201203-201411

MD.GRAY,TRIM1#

main64721-47020-B1iZVW40201411-202109

GRAY,TRIM1#

main64721-47020-C0iZVW40201411-202109

BLACK,TRIM2#

main64721-47020-G0iZVW40201203-201411

AQUA,TRIM6#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-47070-B0iZVW40201203-201411

MD.GRAY,TRIM1#

main64730-47070-B1iZVW40201411-201903

GRAY,TRIM1#

main64730-47070-C0iZVW40201411-201903

BLACK,TRIM2#

main64730-47070-G0iZVW40201203-201411

AQUA,TRIM6#

main64730-47150-B0iZVW40201903-202109

GRAY,TRIM1#

main64730-47150-C0iZVW40201903-202109

BLACK,TRIM2#

64730HCLIP(FOR DECK TRIM SIDE PANEL)

main90467-09236iZVW40201203-201302

main90467-09240iZVW40201303-202109

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-47080-B0iZVW40201203-201411

MD.GRAY,TRIM1#

main64740-47080-B1iZVW40201411-201903

GRAY,TRIM1#

main64740-47080-C0iZVW40201411-201903

BLACK,TRIM2#

main64740-47080-G0iZVW40201203-201411

AQUA,TRIM6#

main64740-47290-B0iZVW40201903-202109

GRAY,TRIM1#

main64740-47290-C0iZVW40201903-202109

BLACK,TRIM2#

64745COVER, REAR COMBINATION LAMP SERVICE, RH

main64745-47040-B0iZVW40201203-201411

MD.GRAY,TRIM1#

main64745-47040-B1iZVW40201411-202109

GRAY,TRIM1#

main64745-47040-C0iZVW40201411-202109

BLACK,TRIM2#

main64745-47040-G0iZVW40201203-201411

AQUA,TRIM6#

64746COVER, REAR COMBINATION LAMP SERVICE, LH

main64746-47030-B0iZVW40201203-201411

MD.GRAY,TRIM1#

main64746-47030-B1iZVW40201411-202109

GRAY,TRIM1#

main64746-47030-C0iZVW40201411-202109

BLACK,TRIM2#

main64746-47030-G0iZVW40201203-201411

AQUA,TRIM6#

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-10161iZVW40201203-202109

64777JCUSHION, SPARE WHEEL

main64777-47070iZVW40201203-202008

main64777-47080iZVW40202008-202109

64910JCOVER ASSY, TONNEAU

main64910-47040-B0iZVW40201203-201411

VALUE PACKAGE&PACKAGE TRAY TRIM & TONNEAU COVER-WITHOUT,LT.GRAY,TRIM1#,6#

main64910-47040-B0iZVW40201411-202109

LT.GRAY,TRIM1#,2#

main64910-47040-B0iZVW40201411-202109

NEW ZEALAND SPEC&TONNEAU COVER-WITHOUT,LT.GRAY,TRIM1#,2#

main64910-47040-B0iZVW40201203-201411

LT.GRAY,TRIM1#,6#

main64910-47040-B0iZVW40201203-201411

VALUE PACKAGE,LT.GRAY,TRIM1#,6#

64938HOOK, TONNEAU COVER, A

main64938-47040-B0iZVW40..RHD201411-202109

NEW ZEALAND SPEC&TONNEAU COVER-WITHOUT,LT.GRAY,TRIM1#,2#

main64938-47040-B0iZVW40201203-201411

LT.GRAY,TRIM1#,6#

main64938-47040-B0iZVW40201203-201411

VALUE PACKAGE,LT.GRAY,TRIM1#,6#

main64938-47040-B0iZVW40201203-201411

VALUE PACKAGE&PACKAGE TRAY TRIM & TONNEAU COVER-WITHOUT,LT.GRAY,TRIM1#,6#

main64938-47040-B0iZVW40201411-202109

LT.GRAY,TRIM1#,2#

64946HOOK, TONNEAU COVER, B

main64946-47040-B0iZVW40201203-201411

LT.GRAY,TRIM1#,6#

main64946-47040-B0iZVW40201203-201411

VALUE PACKAGE,LT.GRAY,TRIM1#,6#

main64946-47040-B0iZVW40201203-201411

VALUE PACKAGE&PACKAGE TRAY TRIM & TONNEAU COVER-WITHOUT,LT.GRAY,TRIM1#,6#

main64946-47040-B0iZVW40201411-202109

LT.GRAY,TRIM1#,2#

main64946-47040-B0iZVW40201411-202109

NEW ZEALAND SPEC&TONNEAU COVER-WITHOUT,LT.GRAY,TRIM1#,2#

64993BOX, DECK FLOOR, REAR

main64993-47040iZVW40201203-202008

main64993-47060iZVW40202008-202109

64995BOX, DECK FLOOR, RH

main64995-47010iZVW40201203-202109

67935APLATE, BACK DOOR SCUFF

main67935-47010-B0iZVW40201203-201411

MD.GRAY,TRIM1#

main67935-47010-B1iZVW40201411-202109

GRAY,TRIM1#

main67935-47010-C0iZVW40201411-202109

BLACK,TRIM2#

main67935-47010-G0iZVW40201203-201411

AQUA,TRIM6#

7104

8401

9011906840

main90119-06840

9167380622

main91673-80622

28 parts on this diagram · 1 diagram in section
