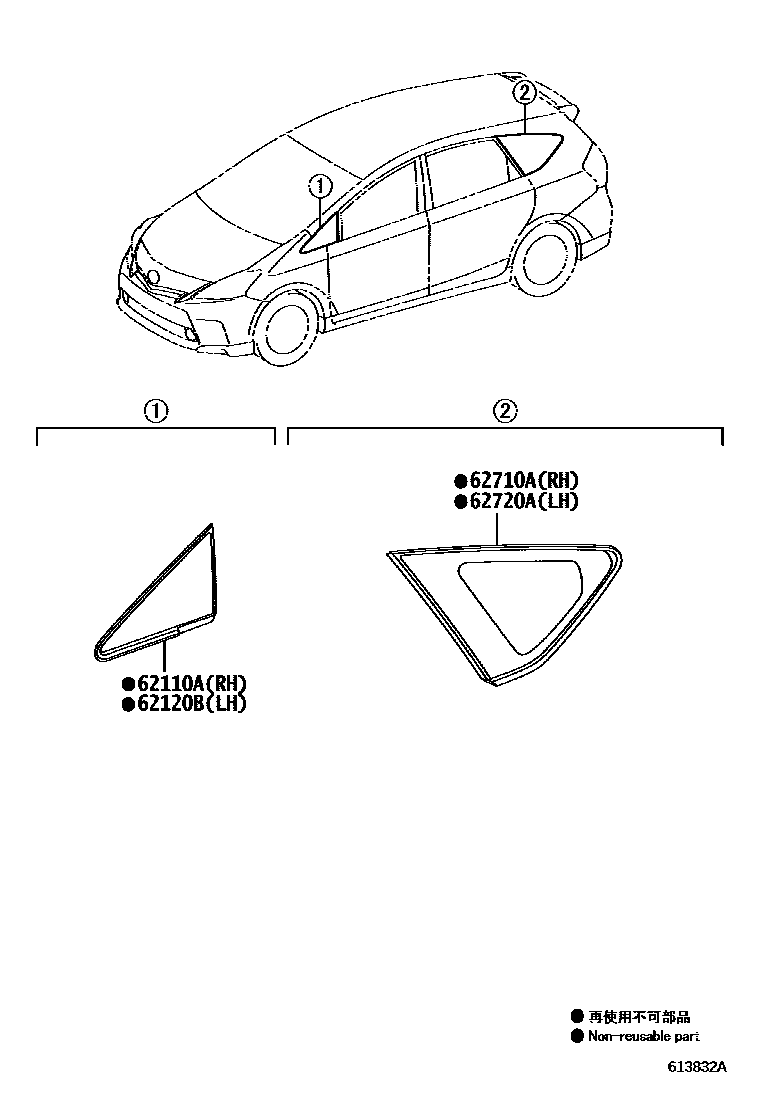

QUARTER WINDOW

62110AWINDOW ASSY, FRONT SIDE FIX, RH

main62110-47040iZVW40201203-202109

62120BWINDOW ASSY, FRONT SIDE FIX, LH

main62120-47040iZVW40201203-202109

62710AWINDOW ASSY, QUARTER, RH

main62710-47070iZVW40..RHD202008-202109

main62710-47080iZVW40201203-202109

main62710-47160iZVW40201411-201712

main62710-47110iZVW40..RHD201203-201411

ENGLAND SPEC

main62710-47170iZVW40..RHD201411-201712

ENGLAND SPEC

62720AWINDOW ASSY, QUARTER, LH

main62720-47070iZVW40..RHD201712-202109

main62720-47080iZVW40..LHD201203-202109

main62720-47110iZVW40..RHD201411-201712

ENGLAND SPEC

4 parts on this diagram · 1 diagram in section
