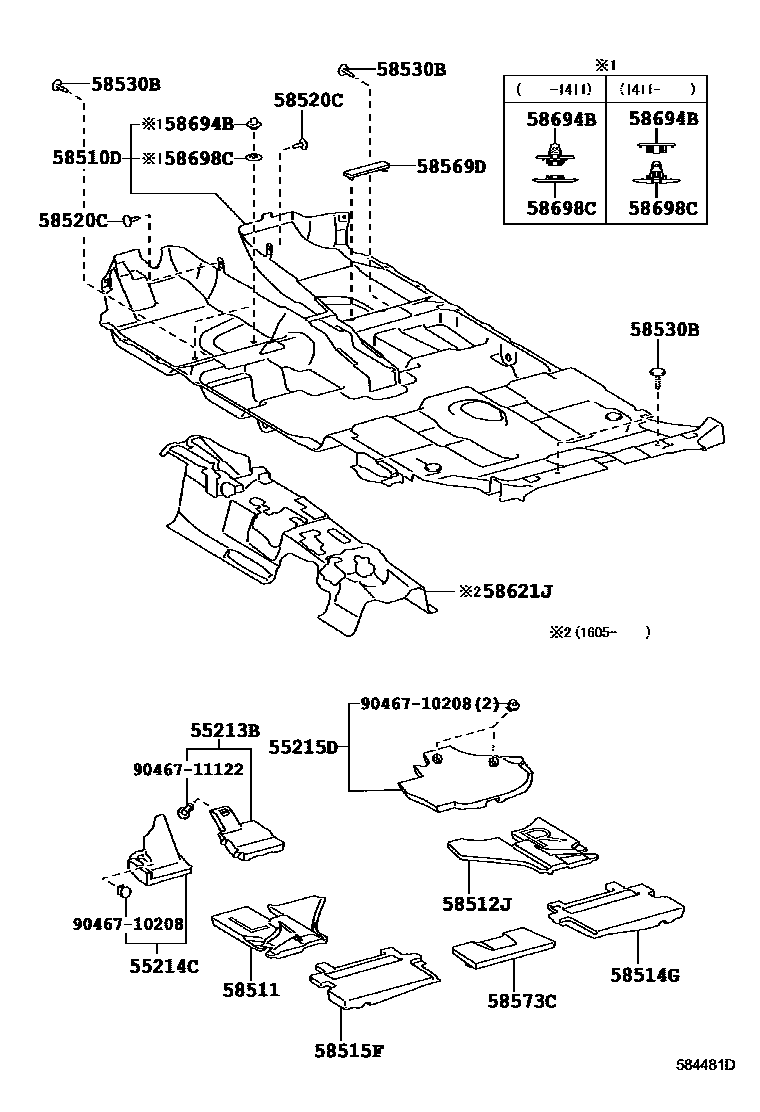

MAT & CARPET

0001 1 0002 1

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-21040iZVW40..LHD201203-201411

main55213-47120iZVW40..RHD201203-201411

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-47030iZVW40..LHD201203-201411

main55214-47040iZVW40..RHD201411-202109

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-47040iZVW40..RHD201411-202109

main55215-47050iZVW40..LHD201203-201411

58510DCARPET ASSY, FLOOR, FRONT

main58510-47240-B0iZVW40..RHD201203-201411

DK. GREY,TRIM1#,6#

main58510-47241-B0iZVW40..RHD201411-202109

DK. GRAY,TRIM1#,2#

main58510-47250-B0iZVW40..LHD201203-201411

DK. GREY,TRIM1#,6#

main58510-47251-B0iZVW40..LHD201411-202109

DK. GRAY,TRIM1#,2#

58511MAT, FLOOR, FRONT

main58511-12620iZVW40201203-201305

main58511-12621iZVW40201305-201411

58512JMAT, FLOOR, NO.2

main58512-12200iZVW40201203-201305

main58512-12201iZVW40201305-201411

58514GMAT, FLOOR, REAR RH

main58514-47010iZVW40201203-201411

58515FMAT, FLOOR, REAR LH

main58515-47010iZVW40201203-201411

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-05164-B2×2iZVW40201203-201411

DK.GRAY

main90467-05164-C7×2iZVW40201701-202109

BLACK

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-B7×4iZVW40201203-201411

DK.GRAY

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-12010-C0iZVW40201203-201411

BLACK,TRIM1#,6#

58573CPAD, FRONT FLOOR CENTER

main58573-47010iZVW40201203-201411

58621JSILENCER, CENTER CONSOLE, NO.1

main58621-47030iZVW40201605-202109

58694BPLATE, MAT SET, UPPER

main58694-76010×2iZVW40201203-201411

main58694-78010×2iZVW40201411-202109

58698CPLATE, MAT SET, LOWER

main58698-76010×2iZVW40201203-201411

main58698-78010×2iZVW40201411-202109

9046710208

main90467-10208

9046711122

main90467-11122

17 parts on this diagram · 2 diagrams in section
