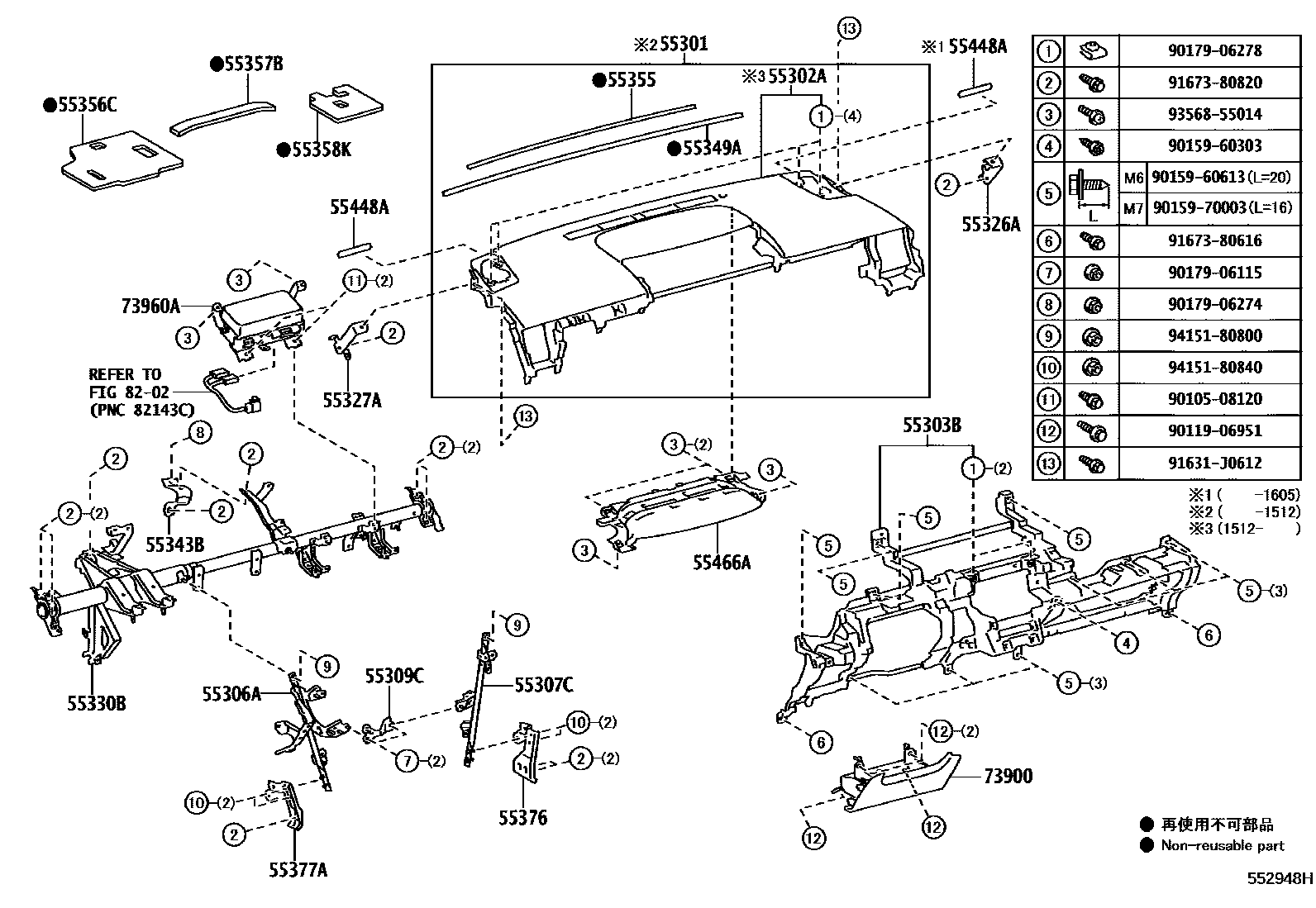

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

55301PANEL SUB-ASSY, INSTRUMENT

main55300-47170-C0iZVW40..RHD201411-201604

BLACK,TRIM1#,2#

main55300-47110-C0supersedes 55300-47170-C0iZVW40..RHD201203-201411

VALUE PACKAGE,BLACK,TRIM1#,6#

main55300-47120-C0supersedes 55300-47180-C0iZVW40..LHD201411-201604

EU ENTRY GRADE,BLACK,TRIM1#,2#

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-47090-C0iZVW40..RHD201712-202109

BLACK,TRIM1#,2#

main55302-47100-C0supersedes 55302-47160-C0iZVW40..LHD201712-202109

BLACK,TRIM1#,2#

main55302-47150-C0iZVW40..RHD201512-201712

BLACK,TRIM1#,2#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-47030-B0iZVW40..RHD201203-201411

MD.GRAY,TRIM1#

main55303-47030-B1iZVW40..RHD201411-202109

GRAY,TRIM1#

main55303-47030-C0iZVW40..RHD201411-201809

BLACK,TRIM2#

main55303-47030-C1iZVW40..RHD201809-202109

BLACK,TRIM2#

main55303-47030-G0iZVW40..RHD201203-201411

AQUA,TRIM6#

main55303-47060-B0iZVW40..LHD201203-201411

MD.GRAY,TRIM1#

main55303-47060-B1iZVW40..LHD201411-202109

GRAY,TRIM1#

main55303-47060-C0iZVW40..LHD201411-201809

BLACK,TRIM2#

main55303-47060-C1iZVW40..LHD201809-202109

BLACK,TRIM2#

main55303-47060-G0iZVW40..LHD201203-201411

AQUA,TRIM6#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-47081iZVW40..RHD201411-202109

main55306-47091iZVW40..LHD201411-202109

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-47030iZVW40..RHD201411-202109

main55307-47040iZVW40..LHD201203-201411

55309CREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, CENTER

main55309-47010iZVW40..RHD201203-201411

main55309-47020iZVW40..LHD201203-201411

55326ASTAY, INSTRUMENT PANEL, NO.1

main55326-47050iZVW40201203-201411

55327ASTAY, INSTRUMENT PANEL, NO.2

main55327-47070iZVW40201203-201411

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-47122iZVW40..RHD201203-201206

main55330-47123iZVW40..RHD201207-201411

main55330-47132iZVW40..LHD201203-201206

main55330-47133iZVW40..LHD201207-201411

main55330-47134iZVW40..LHD201411-201601

main55330-47135iZVW40..LHD201602-202109

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-47020iZVW40..RHD201411-202109

main55343-47030iZVW40..LHD201203-201411

55349ACUSHION, INSTRUMENT PANEL

main55349-47040iZVW40201605-202109

main55349-47070iZVW40201203-201411

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-47080iZVW40201203-201411

main55355-47120iZVW40201605-202109

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-47060iZVW40201203-201411

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-47080iZVW40201203-201411

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-47070iZVW40201203-201411

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-47050iZVW40201203-201411

55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2

main55377-47040iZVW40201203-201411

55448ACUSHION, INSTRUMENT PANEL FINISH, NO.1

main55448-47080×2iZVW40201203-201411

55466ARETAINER, INSTRUMENT PANEL SAFETY PAD

main55466-47030iZVW40..RHD201411-202109

main55466-47040iZVW40..LHD201203-201411

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-47031-B0iZVW40..LHD201203-201411

MD.GRAY,TRIM1#

main73900-47031-B1iZVW40..LHD201411-202109

GRAY,TRIM1#

main73900-47031-C0iZVW40..LHD201411-202109

BLACK,TRIM2#

main73900-47031-G0iZVW40..LHD201203-201411

AQUA,TRIM6#

main73900-47040-B0iZVW40..RHD201203-201411

MD.GRAY,TRIM1#

main73900-47040-B1iZVW40..RHD201411-202109

GRAY,TRIM1#

main73900-47040-C0iZVW40..RHD201411-202109

BLACK,TRIM2#

main73900-47040-G0iZVW40..RHD201203-201411

AQUA,TRIM6#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-47080iZVW40201411-202109

8202

9010508120

main90105-08120

9011906951

main90119-06951

9015960303

main90159-60303

9015960613

main90159-60613

9015970003

main90159-70003

9017906115

main90179-06115

9017906274

main90179-06274

9017906278

main90179-06278

91631J0612

main91631-J0612

9167380616

main91673-80616

9167380820

main91673-80820

9356855014

main93568-55014

9415180800

main94151-80800

9415180840

main94151-80840

36 parts on this diagram · 8 diagrams in section
