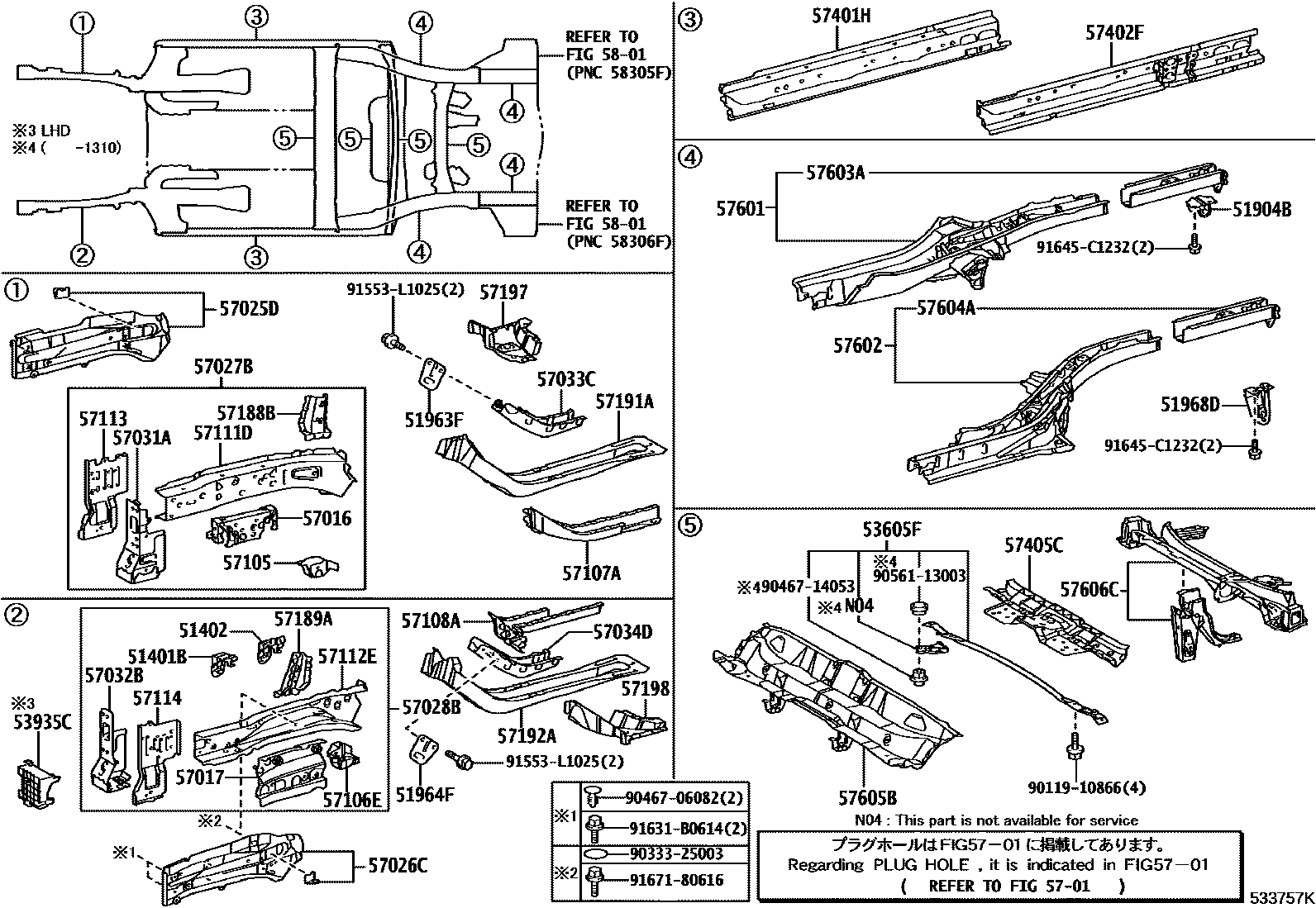

FLOOR SIDE MEMBER

51401BBRACKET SUB-ASSY, ENGINE FRONT MOUNTING

main51401-12020iZVW40201203-201411

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-12020iZVW40201203-201411

51904BHANGER SUB-ASSY, EXHAUST PIPE, NO.4

main51904-47010iZVW40201203-201411

51963FHOOK, TRANSPORT

main51963-12250iZVW40201203-201411

51964FHOOK, TRANSPORT, LH

main51964-12040iZVW40201203-201411

51968DHOOK, TRANSPORT, REAR LH

main51968-12180iZVW40201203-201411

53605FBRACE SUB-ASSY, REAR SUSPENSION

main53605-47020iZVW40201203-201306

main53605-47021iZVW40201307-201411

53935CPROTECTOR, FRONT END PANEL

main53935-47010iZVW40..LHD201203-201411

5701

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-12110iZVW40201203-201411

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-12070iZVW40201203-201411

57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-12010iZVW40201203-201411

sub57115-12090

sub51681-12080

57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-12020iZVW40201203-201411

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-12010iZVW40201203-201411

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-12020iZVW40201203-201411

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-12010iZVW40201203-201411

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-12010iZVW40201203-201411

57033CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH

main57033-12010iZVW40201203-201411

57034DREINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH

main57034-12010iZVW40201203-201411

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-12160iZVW40201203-201411

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57106-12150iZVW40201203-201411

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-12120iZVW40201203-201411

57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57108-12140iZVW40201203-201411

57111DMEMBER, FRONT SIDE, INNER RH

main57111-12230iZVW40201203-201411

57112EMEMBER, FRONT SIDE, INNER LH

main57112-12190iZVW40201203-201411

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-12220iZVW40201203-201411

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-12190iZVW40201203-201406

main57114-12191iZVW40201407-201411

57188BGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH

main57188-12030iZVW40201203-201411

57189AGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH

main57189-12010iZVW40201203-201411

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-12070iZVW40201203-201411

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-12060iZVW40201203-201411

57197BOX, TORQUE, FRONT RH

main57197-12040iZVW40201203-201411

57198BOX, TORQUE, FRONT LH

main57198-12040iZVW40201203-201411

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-72010iZVW40201203-201411

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-72010iZVW40201203-201411

57405CMEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR

main57405-72011iZVW40201203-201411

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-47900iZVW40201203-201411

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-47900iZVW40201203-201411

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-47050iZVW40201203-201411

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-47050iZVW40201203-201411

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-47070iZVW40201203-201411

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-47061iZVW40201203-201411

5801

9011910866

main90119-10866

9033325003

main90333-25003

9046706082

main90467-06082

9046714053

main90467-14053

9056113003

main90561-13003

91553L1025

main91553-L1025

91631B0614

main91631-B0614

91645C1232

main91645-C1232

9167180616

main91671-80616

52 parts on this diagram · 1 diagram in section
