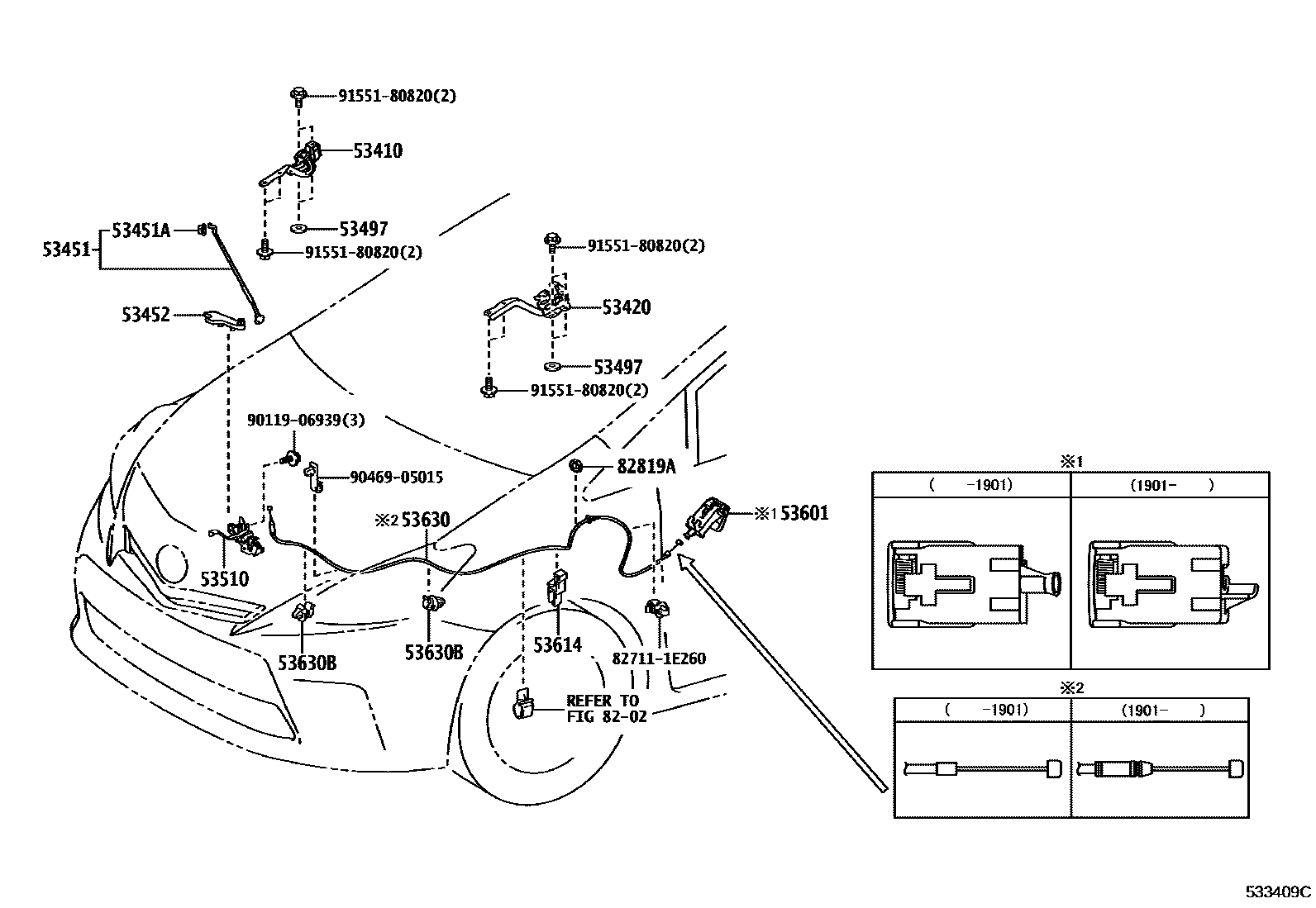

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-47100iZVW40201203-201411

sub53410-47160

main53410-47160iZVW40201411-202109

53420HINGE ASSY, HOOD, LH

main53420-47100iZVW40201203-201411

sub53420-47160

main53420-47160iZVW40201411-202109

53451ROD, HOOD SUPPORT

main53440-47041iZVW40201203-201210

sub53440-47042

main53440-47042iZVW40201211-202109

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15034iZVW40201203-202109

53452HOLDER, HOOD STAY

main53452-47020iZVW40201203-202109

53497PAD, HOOD HINGE, NO.1

main53497-20070iZVW40201203-202109

T=2.0

main53497-42010iZVW40201203-202109

T=0.5

53510LOCK ASSY, HOOD

main53510-47110iZVW40..LHD201203-201206

sub53510-47111

main53510-47111iZVW40..LHD201207-202109

main53510-47120iZVW40..RHD201203-201206

sub53510-47121

main53510-47121iZVW40..RHD201207-202109

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30100-B2iZVW40201901-202109

GRAY,TRIM1#

main53601-30100-C0iZVW40201901-202109

BLACK,TRIM2#

main53601-52010-B6iZVW40201203-201411

MD.GRAY,TRIM1#

sub53601-52010

main53601-52010-B9iZVW40201411-201901

GRAY,TRIM1#

sub53601-52010

main53601-52010-C0iZVW40201411-201612

BLACK,TRIM2#

sub53601-52010

main53601-52010-C1iZVW40201612-201901

BLACK,TRIM2#

sub53601-52010

main53601-52010-G1iZVW40201203-201411

AQUA,TRIM6#

sub53601-52010

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-47030iZVW40201203-202109

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-47060iZVW40..RHD201203-201901

main53630-47070iZVW40..LHD201203-201901

main53630-47120iZVW40..RHD201901-202109

main53630-47130iZVW40..LHD201901-202109

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iZVW40201203-202109

8202

82819AGROMMET, WIRE

main82817-1A810iZVW40201203-202109

827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E260

9011906939

main90119-06939

9046905015

main90469-05015

9155180820

main91551-80820

17 parts on this diagram · 2 diagrams in section
