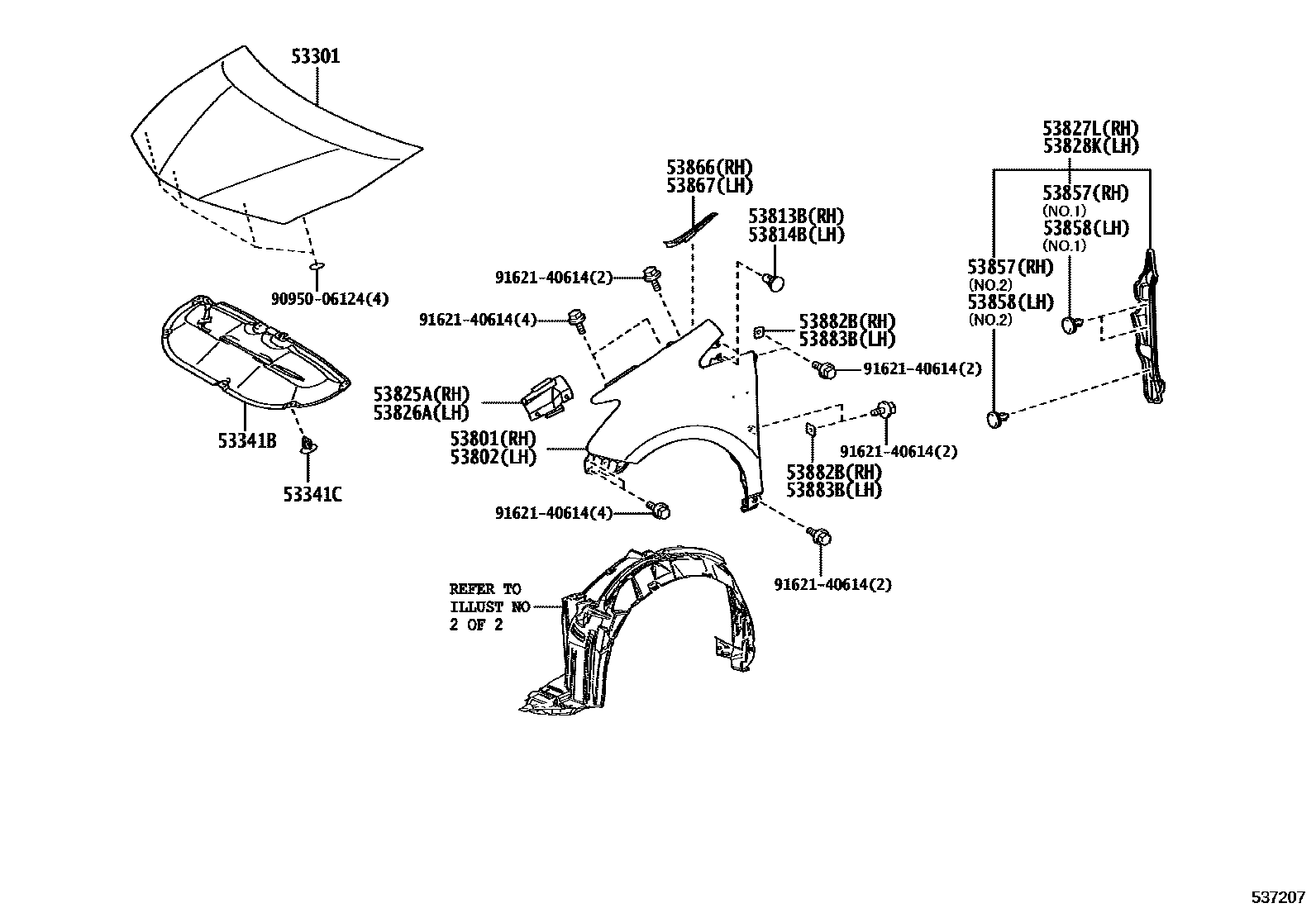

HOOD & FRONT FENDER
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53813BEXTENSION, FRONT FENDER, RH
53814BEXTENSION, FRONT FENDER, LH
53825APROTECTOR, FRONT FENDER, UPPER RH
53826APROTECTOR, FRONT FENDER, UPPER LH
53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
NO.2
NO.1
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
NO.2
NO.1
53866SEAL, FRONT FENDER TO COWL SIDE, RH
53867SEAL, FRONT FENDER TO COWL SIDE, LH
53882BSEAL, FRONT FENDER, RH
53883BSEAL, FRONT FENDER, LH
9095006124
9162140614
19 parts on this diagram · 2 diagrams in section
