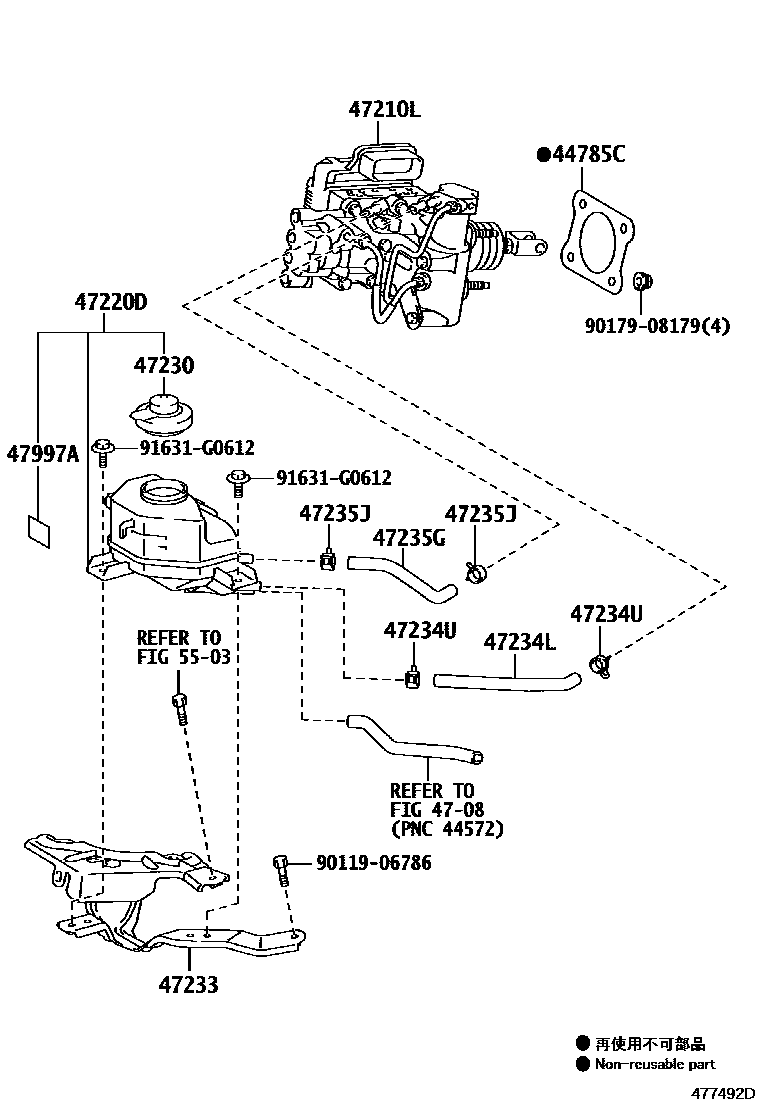

BRAKE MASTER CYLINDER

0001 1 0002 1

44785CGASKET, BRAKE BOOSTER

main44785-12040iZVW40201203-202109

4708

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-47220iZVW40..RHD201203-201309

main47050-47230iZVW40..LHD201203-201309

main47050-47270iZVW40..RHD201309-201411

main47050-47280iZVW40..LHD201309-201411

main47050-47370iZVW40..RHD201411-201605

main47050-47371iZVW40..RHD201605-201712

main47050-47380iZVW40..LHD201411-201605

main47050-47381iZVW40..LHD201605-201712

main47050-47770iZVW40..RHD201712-202007

sub47050-47771

main47050-47771iZVW40..RHD202008-202109

main47050-47780iZVW40..LHD201712-202007

sub47050-47781

main47050-47781iZVW40..LHD202008-202109

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-47070iZVW40..RHD201203-202109

main47220-47080iZVW40..LHD201203-202109

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iZVW40201203-202109

47233BRACKET, RESERVOIR

main47233-47040iZVW40..RHD201203-202109

main47233-47050iZVW40..LHD201203-202109

47234LHOSE, RESERVOIR, NO.1

main47234-47050iZVW40..RHD201203-202109

main47234-47060iZVW40..LHD201203-202109

47234UCLIP(FOR RESERVOIR HOSE NO.1)

main96137-41501iZVW40201203-202109

47235GHOSE, RESERVOIR, NO.2

main47235-47050iZVW40..RHD201203-202109

main47235-47060iZVW40..LHD201203-202109

47235JCLIP(FOR RESERVOIR HOSE NO.2)

main96137-41501iZVW40201203-202109

47997ALABEL, ACCUMULATOR CAUTION, NO.1

main47997-76010iZVW40201203-202109

5503

9011906786

main90119-06786

9017908179

main90179-08179

91631G0612

main91631-G0612

15 parts on this diagram · 2 diagrams in section
