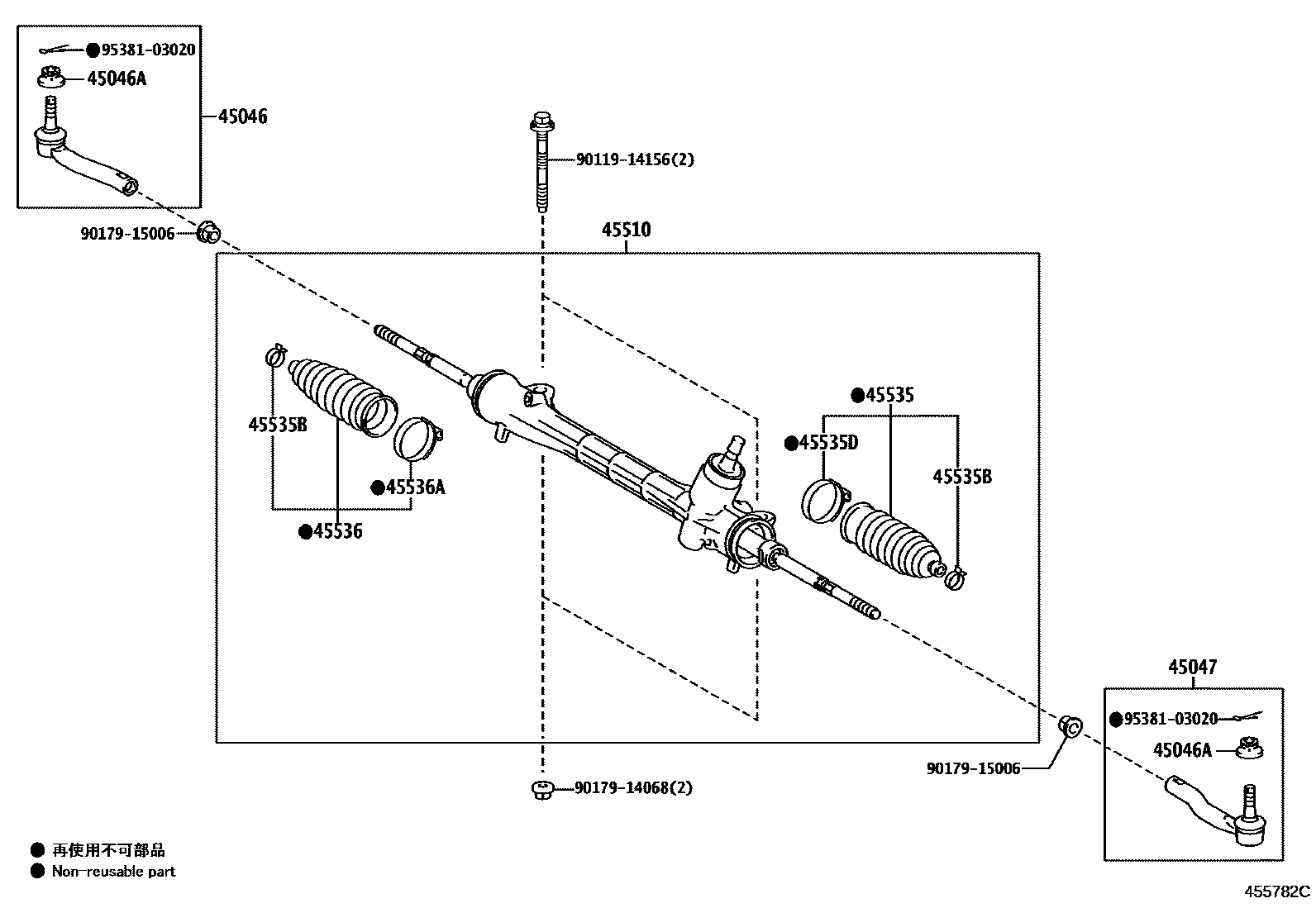

FRONT STEERING GEAR & LINK

0001 1 0002 1

45046END SUB-ASSY, TIE ROD, RH

main45046-19415iZVW40201203-202109

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iZVW40201203-202109

45047END SUB-ASSY, TIE ROD, LH

main45047-19215iZVW40201203-202109

45510GEAR ASSY, STEERING

main45510-47080iZVW40..RHD201203-202109

main45510-47090iZVW40..RHD201203-202008

TIRE & DISC WHEEL-215/5OR17 7J ALUMINUM

main45510-47100iZVW40..LHD201203-202109

main45510-47110iZVW40..LHD201203-202109

TIRE & DISC WHEEL-215/5OR17 7J ALUMINUM

45535BOOT, STEERING RACK, NO.1

main45535-49015iZVW40201203-202109

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021iZVW40201203-202109

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-47010iZVW40201203-202109

45536BOOT, STEERING RACK, NO.2

main45535-49015iZVW40201203-202109

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-47010iZVW40201203-202109

9011914156

main90119-14156

9017914068

main90179-14068

9017915006

main90179-15006

9538103020

main95381-03020

13 parts on this diagram · 2 diagrams in section
