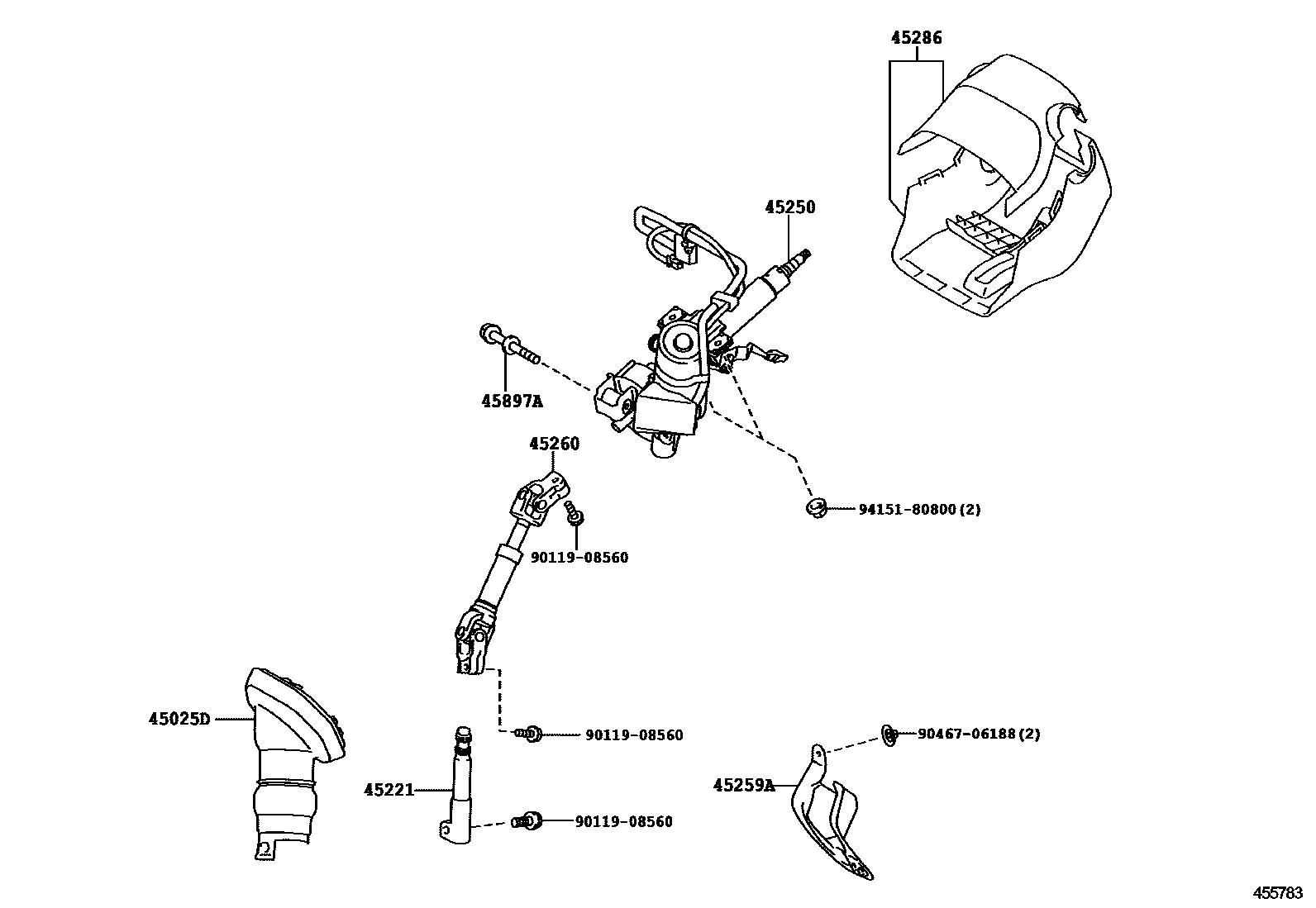

STEERING COLUMN & SHAFT

0001 1 0002 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-12280iZVW40..RHD201203-202109

main45025-12300iZVW40..LHD201203-202109

45221SHAFT, STEERING INTERMEDIATE

main45221-12330iZVW40201203-202109

45250COLUMN ASSY, STEERING

main45250-47290iZVW40..RHD201203-202109

main45250-47310iZVW40..LHD201203-202109

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-12050iZVW40..RHD201203-202109

main45259-47030iZVW40..LHD201203-202109

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-12760iZVW40..LHD201302-201412

sub45260-12761

main45260-12761iZVW40..LHD201501-202109

main45260-12770iZVW40..RHD201302-201412

sub45260-12771

main45260-12771iZVW40..RHD201501-202109

main45260-47070iZVW40..RHD201203-201301

sub45260-12770

main45260-47080iZVW40..LHD201203-201301

sub45260-12760

45286COVER, STEERING COLUMN

main45286-12993-C0iZVW40201203-201411

BLACK,TRIM1#,6#

sub45286-12993

main45286-12993-C0iZVW40201411-202109

BLACK,TRIM1#,2#

sub45286-12993

45897ABOLT, TILT STEERING PAWL SET

main45897-42010iZVW40201203-201211

main90119-10980iZVW40201212-202109

9011908560

main90119-08560

9046706188

main90467-06188

9415180800

main94151-80800

10 parts on this diagram · 2 diagrams in section
