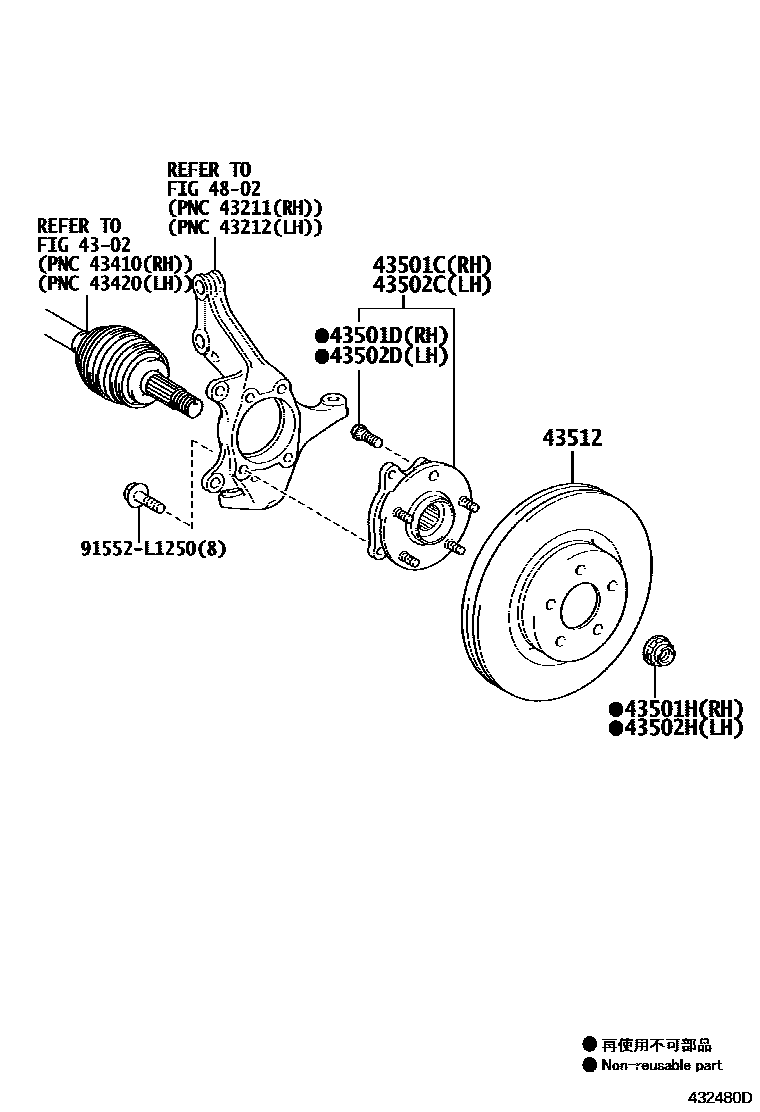

FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-42010iZVW40201203-201411

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iZVW40201203-201411

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iZVW40201203-201411

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-42010iZVW40201203-201411

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iZVW40201203-201411

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iZVW40201203-201411

43512DISC, FRONT

main43512-42050×2iZVW40201203-201411

4802

91552L1250

main91552-L1250

10 parts on this diagram · 1 diagram in section
