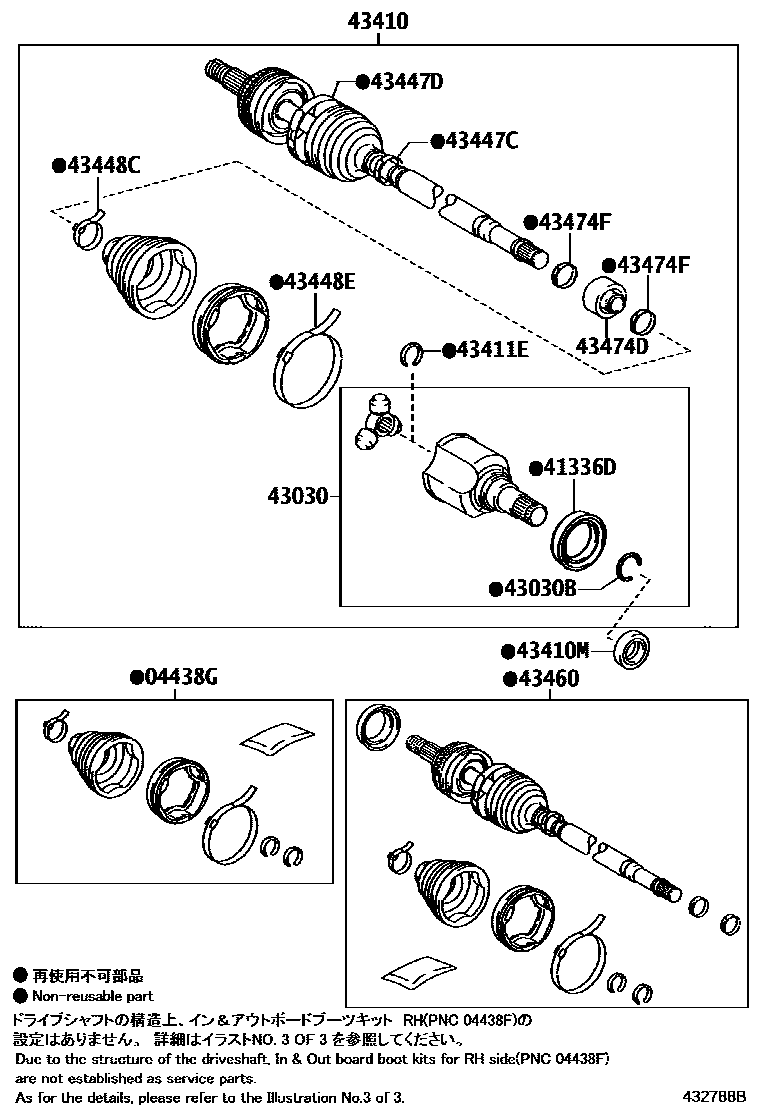

FRONT DRIVE SHAFT

0001 1RH 0002 1LH 0003 1

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-47031iZVW40¥6,700201203-201509

sub04437-47032¥6,700

main04437-47032iZVW40¥6,700201509-201511

sub04437-47033¥4,150

main04437-47033iZVW40¥4,150201511-202109

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12020iZVW40¥330201203-202109

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43040-47010iZVW40¥18,300201203-202109

43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)

main90521-33002iZVW40¥100201203-202109

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-12B30iZVW40¥59,200201203-202109

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40037iZVW40¥470201203-202109

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-12070iZVW40¥40201203-202109

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12230iZVW40¥220201203-202109

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12240iZVW40¥340201203-202109

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12230iZVW40¥220201203-202109

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12180iZVW40¥330201203-202109

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-80124iZVW40¥59,500201203-201509

sub43460-80174¥59,500

main43460-80174iZVW40¥59,500201509-201511

sub43460-80179¥41,300

main43460-80179iZVW40¥41,300201511-202109

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-47020iZVW40¥4,230201203-202109

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-12100iZVW40¥180201203-202109

14 parts on this diagram · 3 diagrams in section
