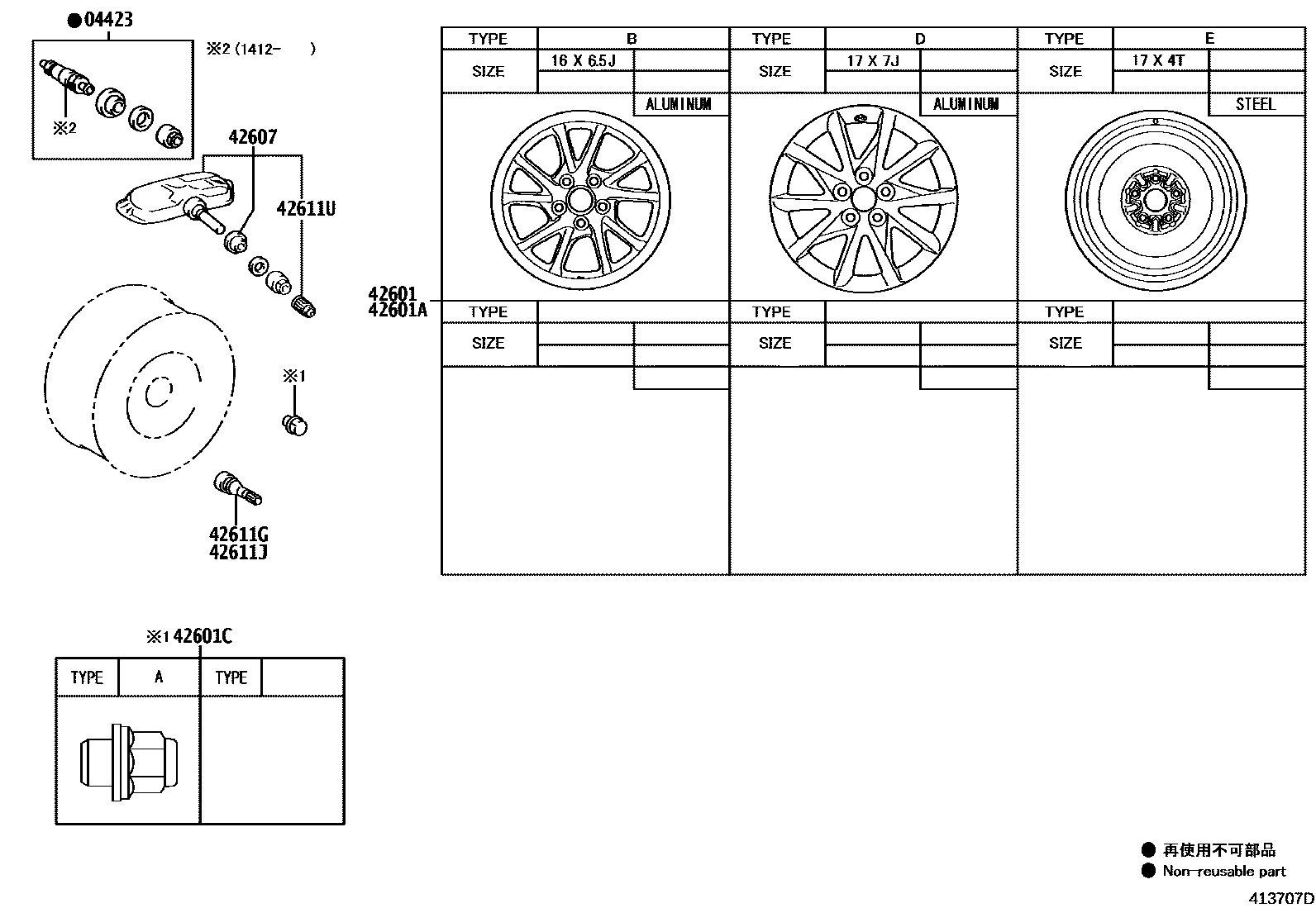

DISC WHEEL & WHEEL CAP

0001 1 0002 1

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33030iZVW40201405-201412

sub04423-33060

main04423-33060iZVW40..LHD201412-202008

42601WHEEL, DISC

main42611-47310iZVW40201203-202109

16X6.5J, #,TYPE B:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-75101iZVW40202008-202109

17X4T,TYPE E:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033iZVW40201203-202109

TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-42021iZVW40201405-202008

main42607-52020iZVW40..LHD202008

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iZVW40201203-201405

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iZVW40202008-202109

42611UCAP, TIRE VALVE

main90942-05039iZVW40201405-201411

8 parts on this diagram · 2 diagrams in section
