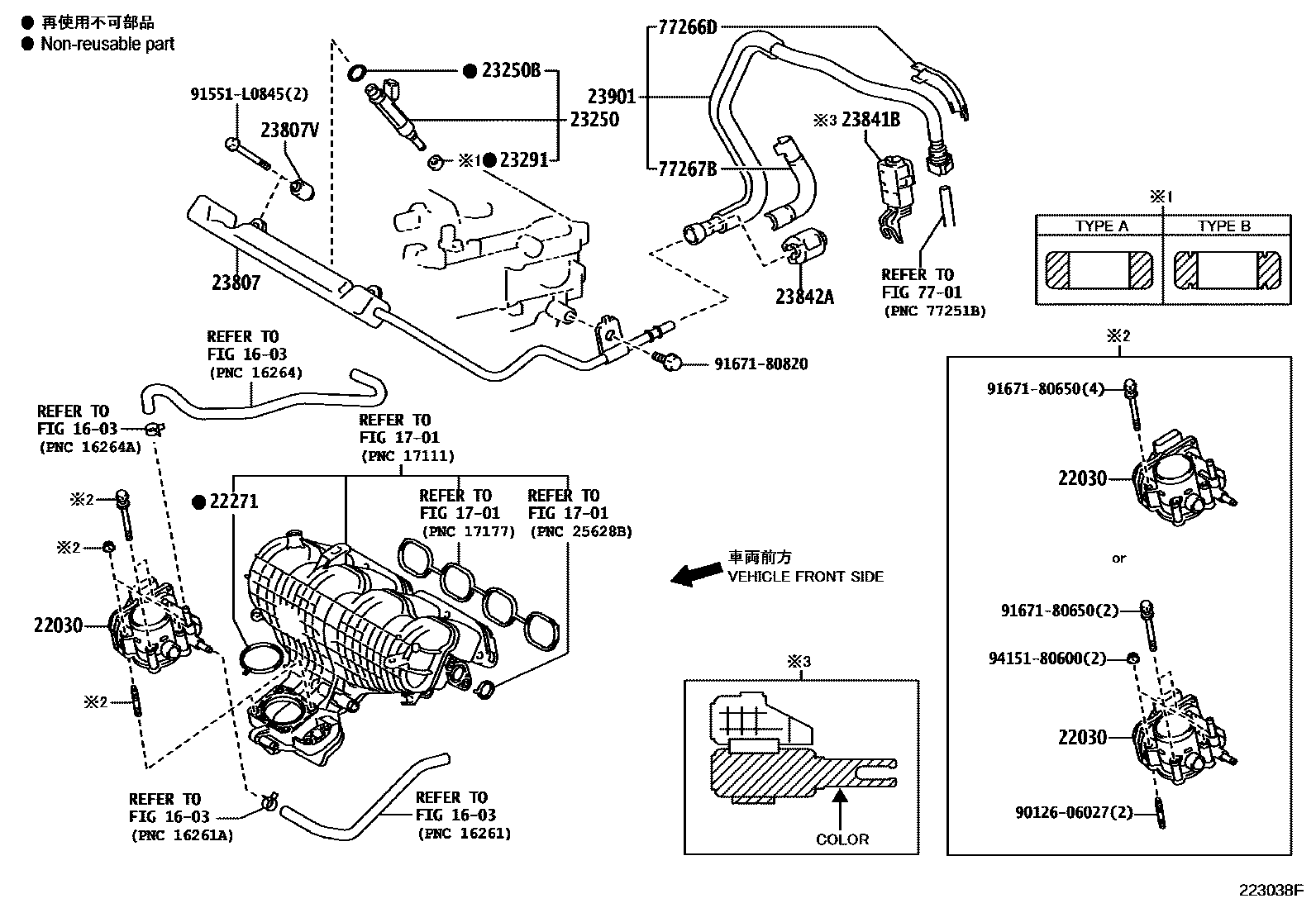

FUEL INJECTION SYSTEM

1603

1701

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0T110supersedes 22030-37060i2ZRFXE..ZVW40201210-201411

ENGINE-2ZRFXE(MADE IN UK),(L)

22271GASKET, THROTTLE BODY

main22271-0T030supersedes 22271-37010i2ZRFXE..ZVW40201404-201411

ENGINE-2ZRFXE(MADE IN UK),(L)

23250INJECTOR ASSY, FUEL

main23209-09130×4supersedes 23209-39146i2ZRFXE..ZVW40201204-201411

ENGINE-2ZRFXE(MADE IN UK),(L)

main23209-39145×4supersedes 23209-39146i2ZRFXE..ZVW40201204-201411

ENGINE-2ZRFXE(MADE IN UK),(J)

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i2ZRFXE..ZVW40201203-201411

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×4i2ZRFXE..ZVW40201203-201411

TYPE A:REFER ILLUST.

main23291-28020×4i2ZRFXE..ZVW40201203-201411

TYPE B:REFER ILLUST.

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-37061i2ZRFXE..ZVW40201411-202109

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-37010×2i2ZRFXE..ZVW40201203-201411

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21040i2ZRFXE..ZVW40201203-201208

main23841-37090i2ZRFXE..ZVW40201208-201411

COLOR : BLACK

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010i2ZRFXE..ZVW40201203-201411

23901TUBE SUB-ASSY, FUEL

main23901-37180i2ZRFXE..ZVW40201203-201411

7701

77266DPROTECTOR, FUEL TUBE

main77266-47020iZVW40201203-201411

77267BPROTECTOR, FUEL TUBE, NO.2

main77267-47030iZVW40201203-201411

9012606027

main90126-06027

91551L0845

main91551-L0845

9167180650

main91671-80650

9167180820

main91671-80820

9415180600

main94151-80600
