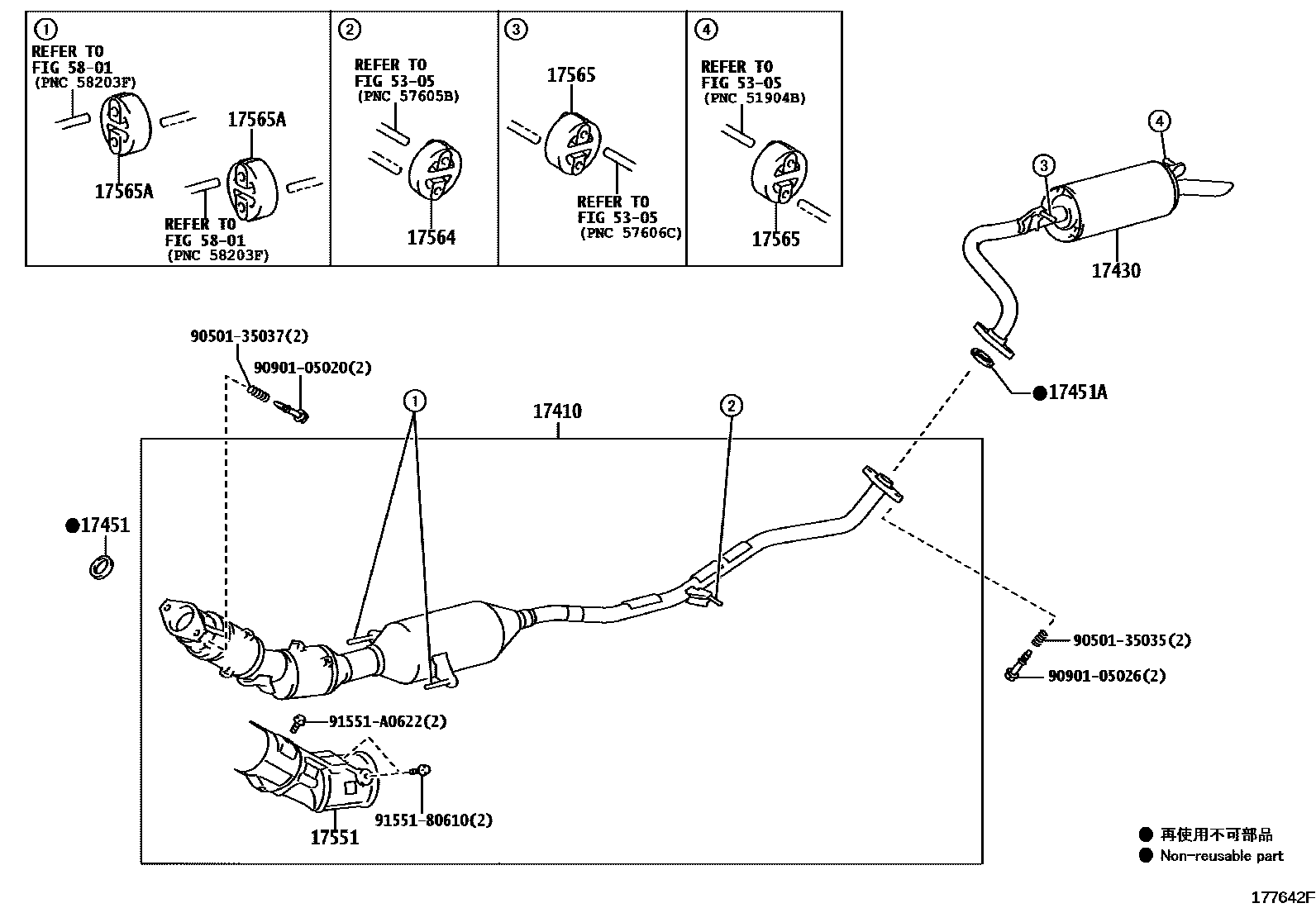

EXHAUST PIPE

0001 1 0002 1COLD AREA SPEC

17410PIPE ASSY, EXHAUST, FRONT

main17410-37570i2ZRFXE..ZVW40201203-201211

*114=TOYOTA/GP1TB1/Y

sub17410-37571

main17410-37571i2ZRFXE..ZVW40201212-201401

*114=TOYOTA/GP1TB1/Y

sub17410-37572

main17410-37572i2ZRFXE..ZVW40201402-202109

*114=*405

17430PIPE ASSY, EXHAUST, TAIL

main17430-37480i2ZRFXE..ZVW40201203-202109

17451GASKET, EXHAUST PIPE

main17451-28040i2ZRFXE..ZVW40201203-202109

sub17451-28041

17451AGASKET, EXHAUST PIPE, NO.2

main17451-23042i2ZRFXE..ZVW40201203-202109

sub17451-23043

17551INSULATOR, EXHAUST PIPE HEAT, NO.1

main17055-37010i2ZRFXE..ZVW40201203-201603

main17551-37050i2ZRFXE..ZVW40201603-202109

17564SUPPORT,EXHAUST PIPE, NO.4

main17565-22030i2ZRFXE..ZVW40201203-202109

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-22040i2ZRFXE..ZVW40201203-202109

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-28010i2ZRFXE..ZVW40201203-202109

5305

5801

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

9155180610

main91551-80610

91551A0622

main91551-A0622

16 parts on this diagram · 2 diagrams in section
