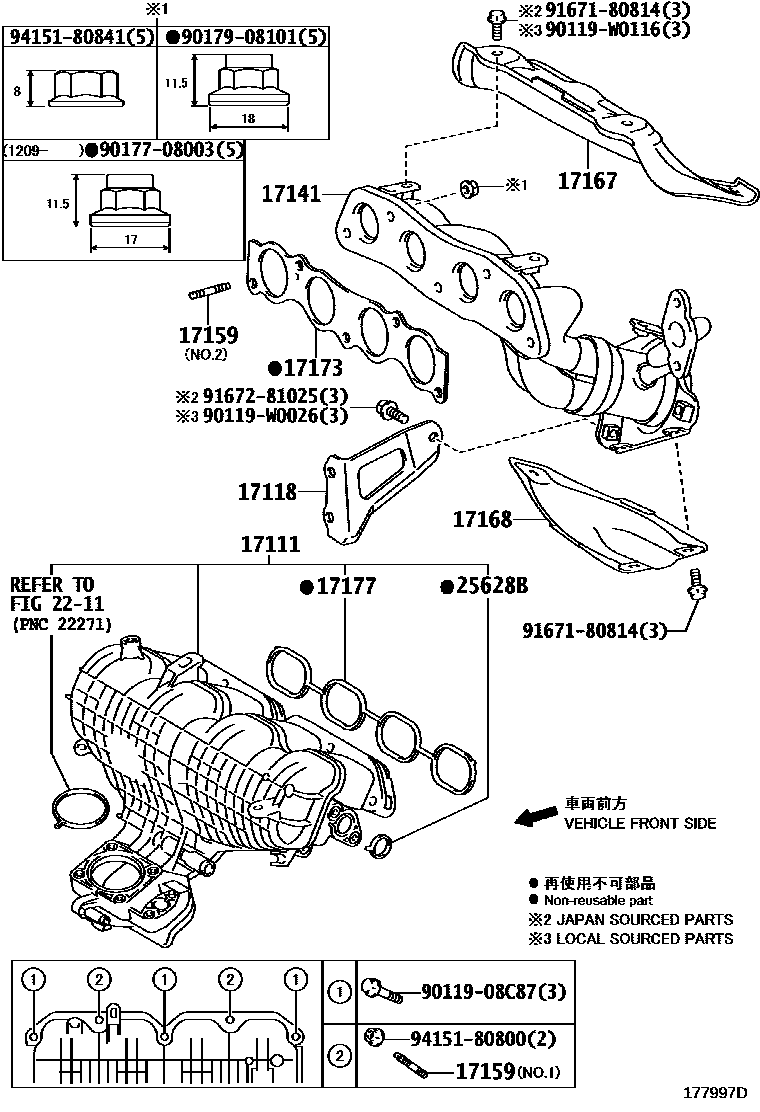

MANIFOLD

17111MANIFOLD, INTAKE

main17120-37052i2ZRFXE..ZVW40201203-201210

sub17120-37053

main17120-37053i2ZRFXE..ZVW40201210-201211

sub17120-37054

main17120-37054i2ZRFXE..ZVW40201211-201411

main17120-37054i2ZRFXE..ZVW40201411-202109

*119

17118STAY, MANIFOLD

main17118-37080i2ZRFXE..ZVW40201203-202109

17141MANIFOLD, EXHAUST

main17141-37150i2ZRFXE..ZVW40201203-202109

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08026i2ZRFXE..ZVW40201203-202109

NO.1

main90126-08052i2ZRFXE..ZVW40201203-202109

NO.2

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-37080i2ZRFXE..ZVW40201203-202109

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-37110i2ZRFXE..ZVW40201203-202109

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-37010i2ZRFXE..ZVW40201203-201411

main17173-37010i2ZRFXE..ZVW40201411-202109

*149

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-37030i2ZRFXE..ZVW40201203-201411

main17177-37030i2ZRFXE..ZVW40201411-202109

*119

2211

25628BGASKET, EGR INLET

main25628-28010i2ZRFXE..ZVW40201203-202109

9011908C87

main90119-08C87

90119W0026

main90119-W0026

90119W0116

main90119-W0116

9017708003

main90177-08003

9017908101

main90179-08101

9167180814

main91671-80814

9167281025

main91672-81025

9415180800

main94151-80800

9415180841

main94151-80841

19 parts on this diagram · 1 diagram in section
