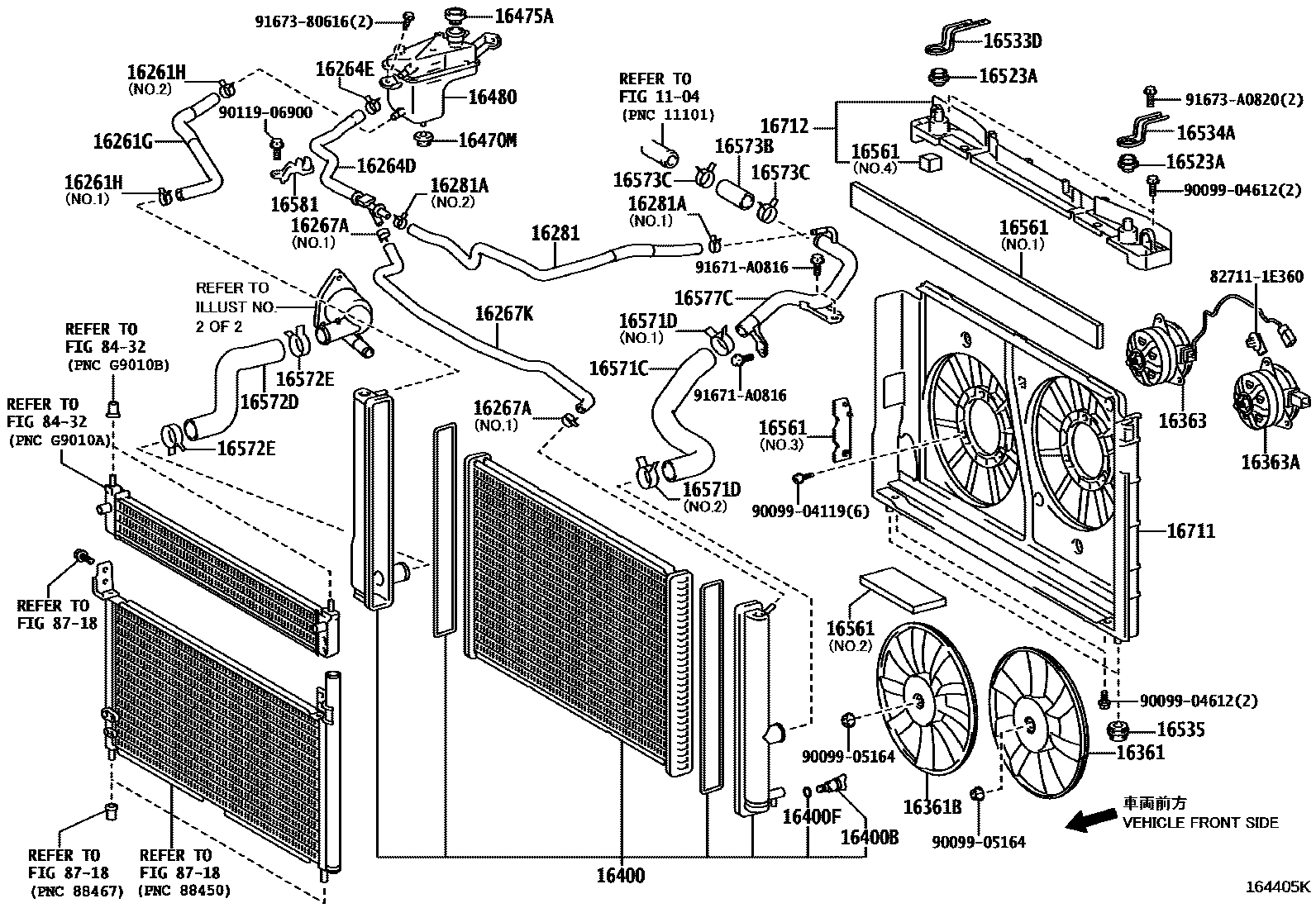

RADIATOR & WATER OUTLET
1104
16261HOSE, WATER BY-PASS
main16261-37070
main16261-37081
main16261-37170
main96136-42201
main96136-42501
main96137-41501
16261GHOSE, WATER BY-PASS, NO.1
16261HCLIP(FOR WATER BY-PASS HOSE NO.1)
NO.1
NO.2
16264HOSE, WATER BY-PASS, NO.2
main16264-37050
main16264-37060
main16264-37080
main96136-42101
main16264-37170
main96137-41501
16264DHOSE, WATER BY-PASS, NO.2
16264ECLIP(FOR WATER BY-PASS HOSE NO.2)
16267HOSE, WATER BY-PASS, NO.3
main90466-W0007
main90467-15022
main16267-37030
main16267-37050
main16267-37110
main96136-42501
main96136-41901
16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
NO.1
NO.3
NO.2
*119,NO.2
ENGINE-2ZRFXE(MADE IN UK),(L),NO.2
16267KHOSE, WATER BY-PASS, NO.3
16281HOSE, WATER BY-PASS, NO.4
16281ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
NO.2
NO.1
16361FAN
16361BFAN, NO.2
16363MOTOR, COOLING FAN
16363AMOTOR, COOLING FAN, NO.2
16400RADIATOR ASSY
LABEL=422136-082*
LABEL=422136-778*
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470MGROMMET
16480RESERVE TANK ASSY, RADIATOR W/O CAP
16523ACUSHION, RADIATOR SUPPORT
16533DSUPPORT, RADIATOR, RH
16534ASUPPORT, RADIATOR, LH
16535SUPPORT, RADIATOR, LOWER
16561SEAL, RADIATOR TO SUPPORT, NO.1
NO.3
NO.2
NO.1
NO.4
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
NO.1
NO.2
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16573BHOSE, RADIATOR, NO.3
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
16577CPIPE, RADIATOR
16581CLAMP, HOSE(FOR WATER HOSE)
16711SHROUD, FAN
LABEL=422136-082*
LABEL=422136-778*
8432
8718
827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E360
9009904119
main90099-04119
9009904612
main90099-04612
9009905164
main90099-05164
9011906900
main90119-06900
91671A0816
main91671-A0816
9167380616
main91673-80616
91673A0820
main91673-A0820
47 parts on this diagram · 3 diagrams in section
