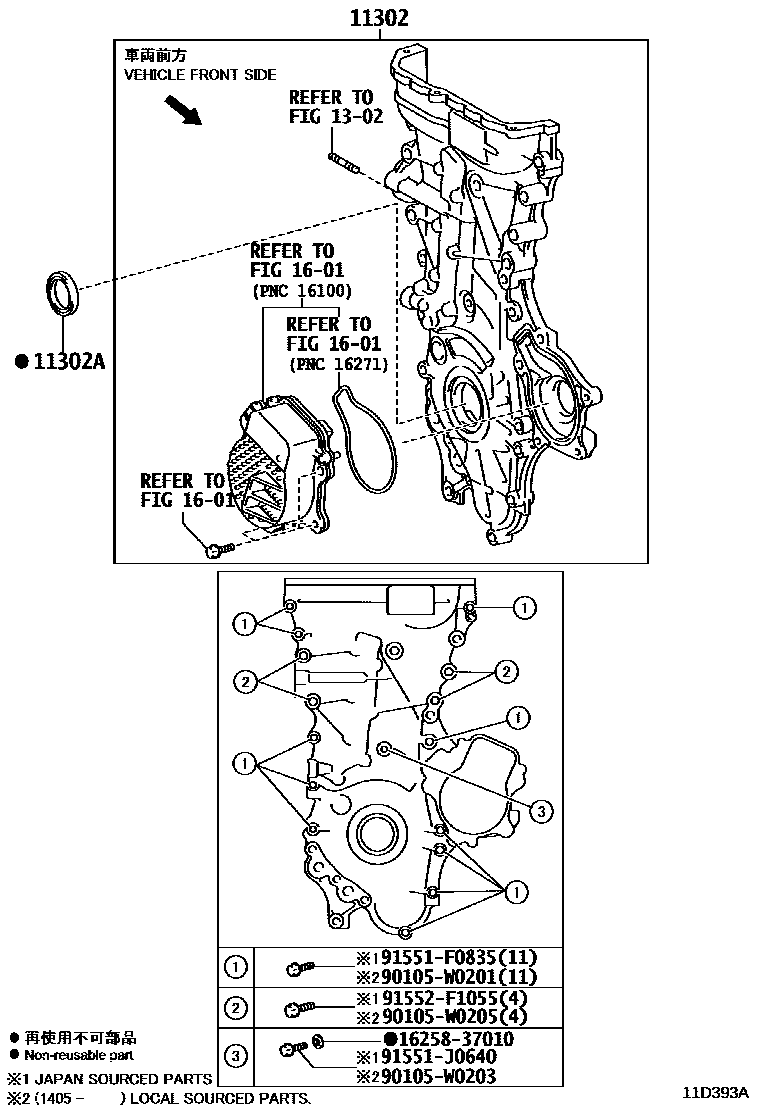

TIMING GEAR COVER & REAR END PLATE

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-0T100i2ZRFXE..ZVW40201411-202008

ENGINE-2ZR-FXE(MADE IN UK),(L),*149

main11310-0T100i2ZRFXE..ZVW40201210-201411

ENGINE-2ZRFXE(MADE IN UK),(L)

main11310-37060i2ZRFXE..ZVW40201203-201204

sub11310-37062

main11310-37062i2ZRFXE..ZVW40201411-202109

*119

main11310-37062i2ZRFXE..ZVW40201411-202008

ENGINE-2ZR-FXE(MADE IN UK),(J),*149

main11310-37062i2ZRFXE..ZVW40201204-201411

main11310-37062i2ZRFXE..ZVW40201210-201411

ENGINE-2ZRFXE(MADE IN UK),(J)

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-38089i2ZRFXE..ZVW40201204-201406

ENGINE-2ZRFXE(MADE IN UK),(J)

main90311-38096i2ZRFXE..ZVW40201203-202109

main90311-W0012i2ZRFXE..ZVW40201204-201406

ENGINE-2ZRFXE(MADE IN UK),(L)

1302

1601

1625837010GASKET(FOR HEATER RETURN)

main16258-37010

90105W0201

main90105-W0201

90105W0203

main90105-W0203

90105W0205

main90105-W0205

91551F0835

main91551-F0835

91551J0640

main91551-J0640

91552F1055

main91552-F1055

11 parts on this diagram · 1 diagram in section
