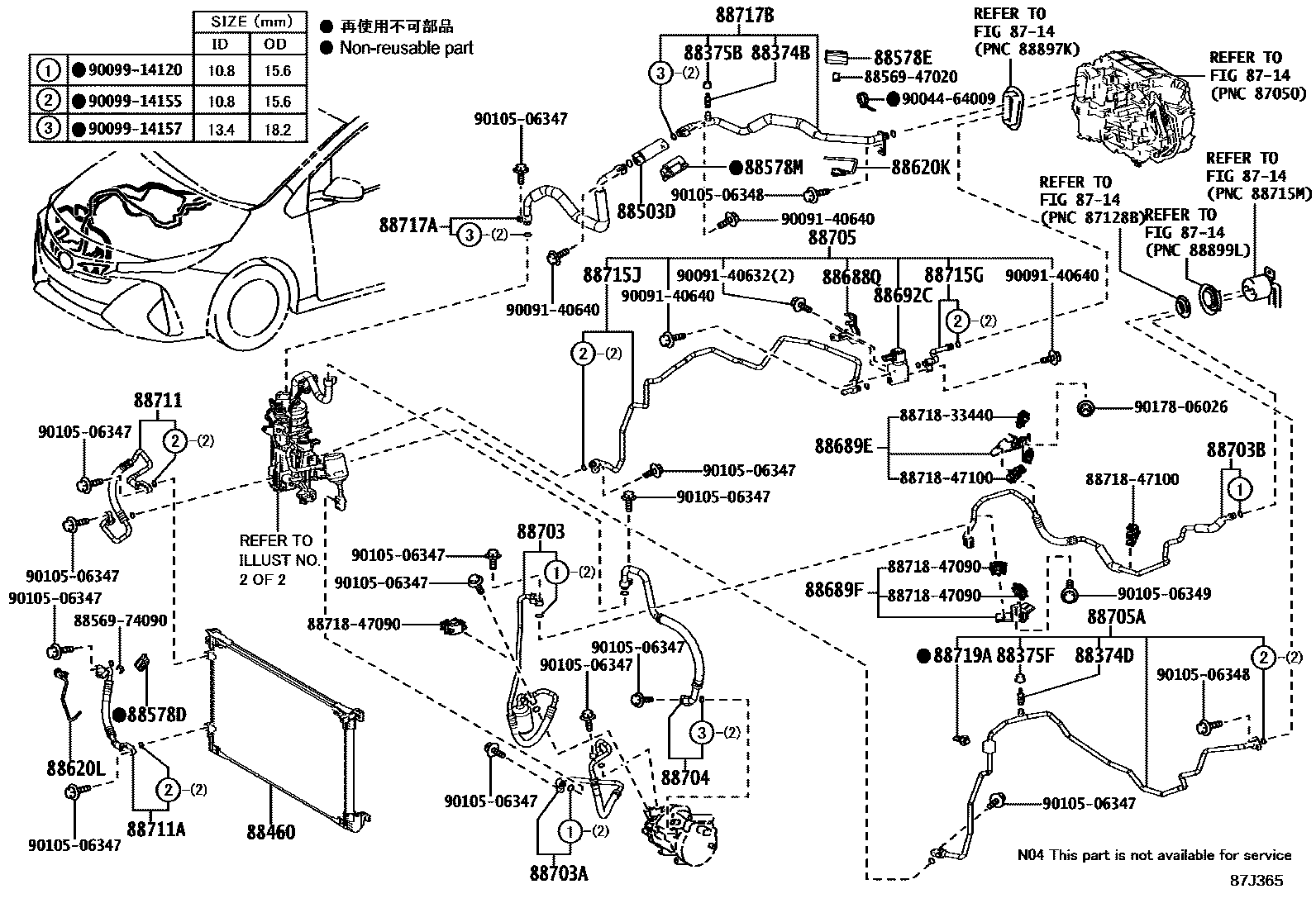

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1TAIWAN SPEC 0002 1TAIWAN SPEC 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

8714

88374BVALVE, SERVICE, NO.1

main88374-74010iZVW52201609-201904

88374DVALVE, SERVICE NO.3

main88374-30010iZVW52201609-201904

88375BCAP, SERVICE VALVE, NO.1

main88375-30310iZVW52201609-201904

88375FCAP, SERVICE VALVE, NO.3

main88375-30320iZVW52201609-201904

88460CONDENSER ASSY, COOLER

main88460-47180iZVW52201609-201904

88503DREGULATOR, EVAPORATOR PRESSURE

main88503-47020iZVW52201609-201904

88578DPACKING, COOLER PIPE, NO.1

main88578-47070iZVW52201609-201904

88578EPACKING, COOLER PIPE, NO.2

main88578-47060iZVW52201609-201904

88578MPACKING, COOLING PIPE, NO.3

main88578-47090iZVW52201609-201904

88620KSENSOR, EVAPORATOR PIPE TEMPERATURE

main88620-47060iZVW52201609-201904

88620LSENSOR, HEAT EXCHANGER TEMPERATURE

main88620-47070iZVW52201609-201904

88688QBRACKET (FOR MAGNET VALVE)

main88688-47860iZVW52201609-201904

88689EBRACKET, COOLER, NO.1

main88688-47720iZVW52201609-201904

88689FBRACKET, COOLER, NO.2

main88688-47730iZVW52201609-201904

88692CVALVE, ELECTRIC EXPANSION(COOLING)

main88690-47040iZVW52201609-201904

88703HOSE SUB-ASSY, DISCHARGE

main88703-47090iZVW52201609-201904

88703AHOSE SUB-ASSY, DISCHARGE, NO.1

main88703-47100iZVW52201609-202107

sub88703-47101

main88703-47101iZVW52202108

88703BHOSE SUB-ASSY, DISCHARGE, NO.2

main88703-47110iZVW52201609-201904

88704HOSE SUB-ASSY, SUCTION

main88704-47110iZVW52201609-202002

sub88704-47130

main88704-47111iZVW52202007

main88704-47130iZVW52202003-202007

88705PIPE SUB-ASSY, DISCHARGE

main88705-47010iZVW52..LHD201609-201904

main88705-47020iZVW52..RHD201609-201904

88705ATUBE SUB-ASSY, DISCHARGE

main88705-47040iZVW52201609-202007

main88705-47041iZVW52202007

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-47060iZVW52201609-201904

88711AHOSE, COOLER REFRIGERANT DISCHARGE, NO.2

main88711-47080iZVW52201609-201904

88715GTUBE, DISCHARGE, G

main88715-47050iZVW52..LHD201609-201904

main88715-47070iZVW52..RHD201609-201904

88715JTUBE, DISCHARGE, J

main88715-47060iZVW52..LHD201609-201904

main88715-47080iZVW52..RHD201609-201904

88717PIPE, COOLER REFRIGERANT SUCTION, NO.1

main88717-47040iZVW52201609-202007

main88717-47041iZVW52202007

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-47050iZVW52201609-201904

88717BPIPE, COOLER REFRIGERANT SUCTION, B

main88717-47080iZVW52..LHD201609-201904

main88717-47090iZVW52..RHD201609-201904

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-47010iZVW52201609-201904

8856947020CLAMP (FOR COOLER RELAY)

main88569-47020

8856974090CLAMP (FOR COOLER RELAY)

main88569-74090

8871833440PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-33440

8871847090PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-47090

8871847100PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-47100

9004464009

main90044-64009

9009140632

main90091-40632

9009140640

main90091-40640

9009914120

main90099-14120

9009914155

main90099-14155

9009914157

main90099-14157

9010506347

main90105-06347

9010506348

main90105-06348

9010506349

main90105-06349

9017806026

main90178-06026

45 parts on this diagram · 8 diagrams in section
