HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL PANEL 0002 1AIR DUCT 0003 1AIR DUCT 0004 1SENSOR 0005 1SENSOR 0006 1SENSOR

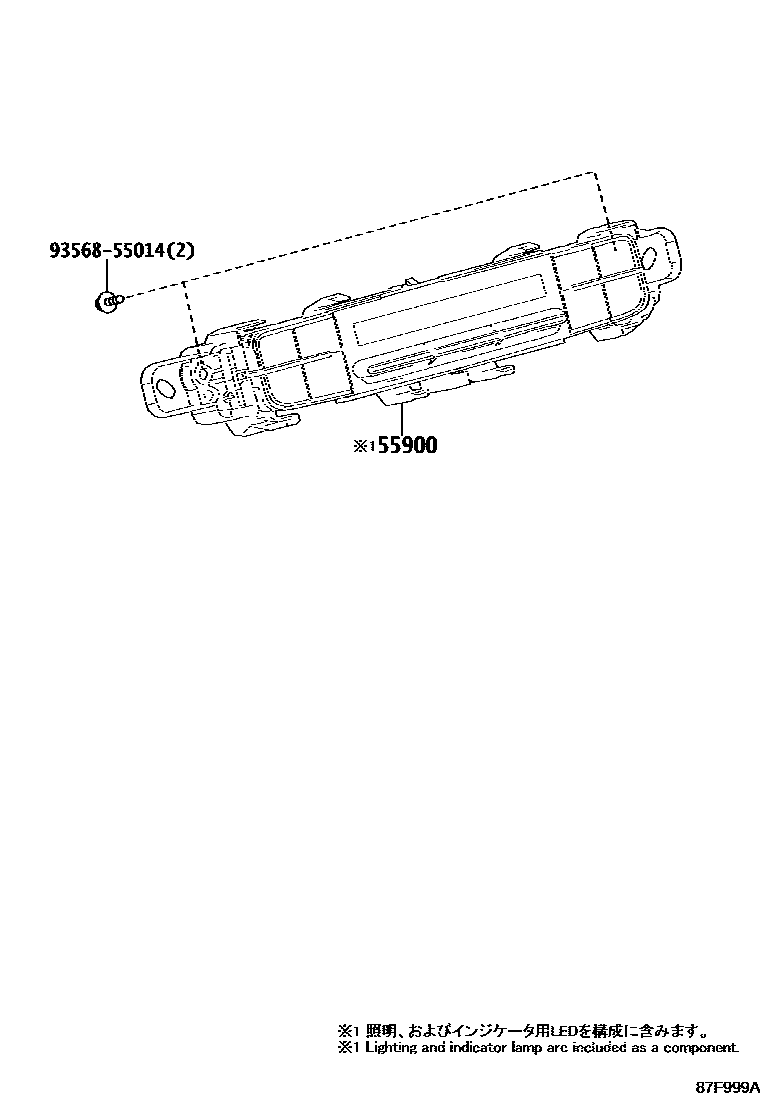

55900CONTROL ASSY, AIR CONDITIONER

main55900-47230iZVW52..RHD201609-201610

main55900-47231iZVW52..RHD201610-201904

main55900-47191supersedes 55900-47221iZVW52..LHD202106

TAIWAN SPEC&BACK MONITOR-*BGM(NAVI READY PACKAGE)

9356855014

main93568-55014

2 parts on this diagram · 6 diagrams in section
