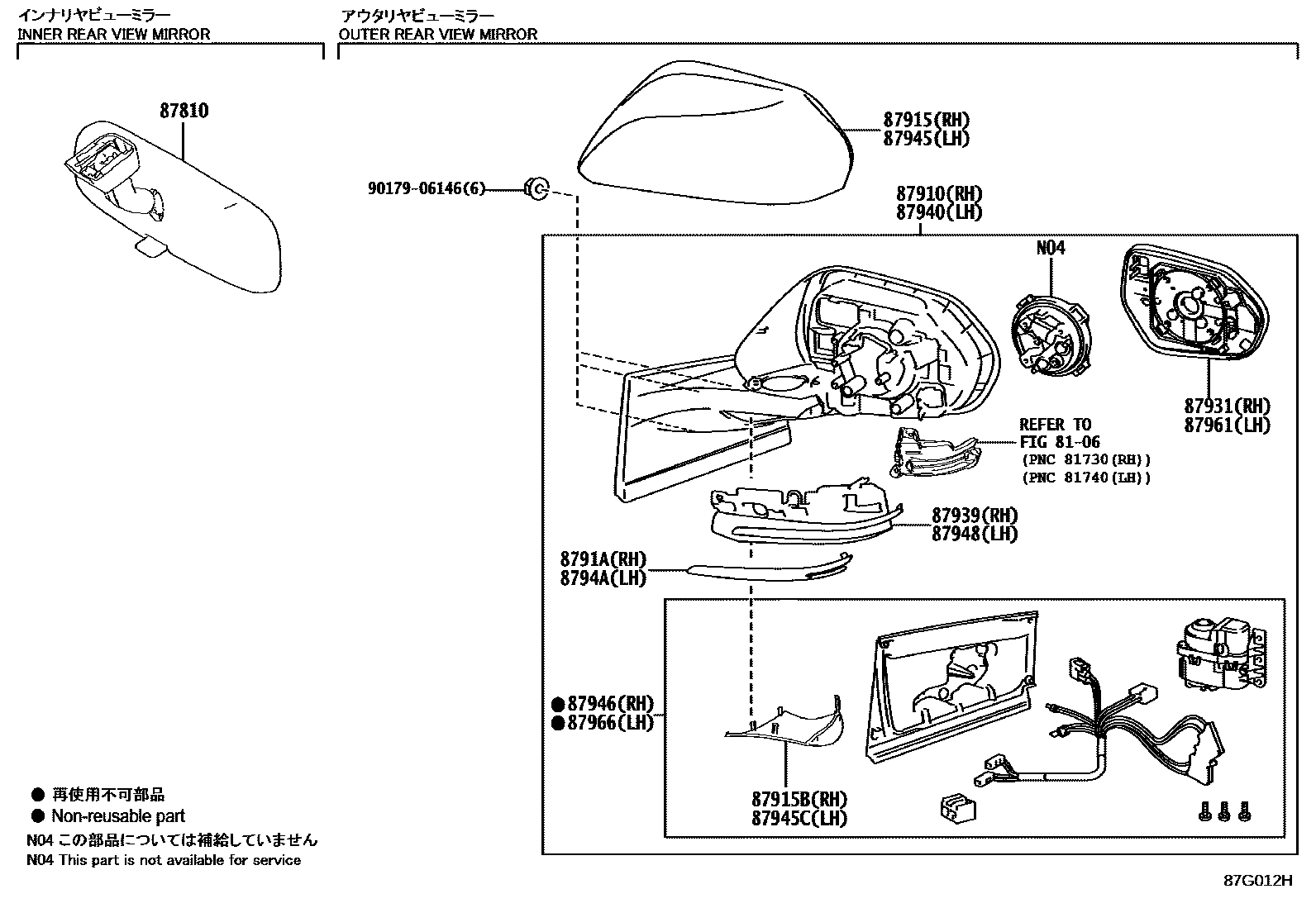

MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
TAIWAN SPEC
87910MIRROR ASSY, OUTER REAR VIEW, RH
TAIWAN SPEC&WITH(HEAD UP DISPLAY)&AUDIO-TAIWAN SPEC T2 & JBLSPEAKER
PLATED,WITH(HEAD UP DISPLAY)
NO PAINT REQ.,WITH(HEAD UP DISPLAY)
NO PAINT REQ.,WITH(HEAD UP DISPLAY)&AUDIO-8INCH & JBL&BACK MONITOR-PANORAMIC VIEWMONITOR
NO PAINT REQ.,WITH(HEAD UP DISPLAY)&AUDIO-8INCH & JBL&BACK MONITOR-PANORAMIC VIEWMONITOR
87915COVER, OUTER MIRROR, RH
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
GRAY ME.,1G3
ATTITUDE BLACK MC.,218
EMOTIONAL RED 2,3U5
SPIRITED AQUA ME.,791
SUPER WHITE 2,040
TAIWAN SPEC&WITH(HEAD UP DISPLAY)&AUDIO-TAIWAN SPEC AVN & *BT & USB & JBLSPEAKER,WHITE PEARL CS.,070
WHITE PEARL CS.,070
TAIWAN SPEC&WITH(HEAD UP DISPLAY)&AUDIO-TAIWAN SPEC AVN & *BT & USB & JBLSPEAKER,GRAY ME.,1G3
GRAY ME.,1G3
ATTITUDE BLACK MC.,218
EMOTIONAL RED,3T7
EMOTIONAL RED 2,3U5
STEEL BLONDE,4X1
SPIRITED AQUA ME.,791
87915BCOVER, OUTER MIRROR, LOWER RH
WITH(HEAD UP DISPLAY)&AUDIO-8INCH & JBL&BACK MONITOR-PANORAMIC VIEW MONITOR
WITH(HEAD UP DISPLAY)
8791ACOVER, OUTER MIRROR, RH NO.2
87931OUTER MIRROR, RH
WITH(HEAD UP DISPLAY)&AUDIO-8INCH & JBL&BACK MONITOR-PANORAMIC VIEW MONITOR
WITH(HEAD UP DISPLAY)&AUDIO-8INCH & JBL&BACK MONITOR-PANORAMIC VIEW MONITOR
87939COVER, OUTER MIRROR HOLE, RH
WITH(HEAD UP DISPLAY)
WITH(HEAD UP DISPLAY)&AUDIO-8INCH & JBL&BACK MONITOR-PANORAMIC VIEW MONITOR
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.,WITH(HEAD UP DISPLAY)&AUDIO-8INCH & JBL&BACK MONITOR-PANORAMIC VIEWMONITOR
TAIWAN SPEC&WITH(HEAD UP DISPLAY)&AUDIO-AUDIO LESS & 6SPEAKER&BACK MONITOR-*BGM(NAVI READY PACKAGE)
NO PAINT REQ.,WITH(HEAD UP DISPLAY)&AUDIO-8INCH & JBL&BACK MONITOR-PANORAMIC VIEWMONITOR
PLATED,WITH(HEAD UP DISPLAY)
NO PAINT REQ.,WITH(HEAD UP DISPLAY)
87945COVER, OUTER MIRROR, LH
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
GRAY ME.,1G3
ATTITUDE BLACK MC.,218
EMOTIONAL RED 2,3U5
SPIRITED AQUA ME.,791
SUPER WHITE 2,040
TAIWAN SPEC&WITH(HEAD UP DISPLAY)&AUDIO-TAIWAN SPEC AVN & *BT & USB & JBLSPEAKER,WHITE PEARL CS.,070
WHITE PEARL CS.,070
TAIWAN SPEC&WITH(HEAD UP DISPLAY)&AUDIO-TAIWAN SPEC AVN & *BT & USB & JBLSPEAKER,GRAY ME.,1G3
GRAY ME.,1G3
ATTITUDE BLACK MC.,218
EMOTIONAL RED,3T7
EMOTIONAL RED 2,3U5
STEEL BLONDE,4X1
SPIRITED AQUA ME.,791
87945CCOVER, OUTER MIRROR, LOWER LH
WITH(HEAD UP DISPLAY)&AUDIO-8INCH & JBL&BACK MONITOR-PANORAMIC VIEW MONITOR
WITH(HEAD UP DISPLAY)&AUDIO-8INCH & JBL&BACK MONITOR-PANORAMIC VIEW MONITOR
87946RETRACTOR, OUTER MIRROR, RH
TAIWAN SPEC&WITH(HEAD UP DISPLAY)&AUDIO-TAIWAN SPEC T2 & JBLSPEAKER
WITH(HEAD UP DISPLAY)
WITH(HEAD UP DISPLAY)
WITH(HEAD UP DISPLAY)&AUDIO-8INCH & JBL&BACK MONITOR-PANORAMIC VIEW MONITOR
WITH(HEAD UP DISPLAY)&AUDIO-8INCH & JBL&BACK MONITOR-PANORAMIC VIEW MONITOR
87948COVER, OUTER MIRROR HOLE, LH
WITH(HEAD UP DISPLAY)&AUDIO-8INCH & JBL&BACK MONITOR-PANORAMIC VIEW MONITOR
WITH(HEAD UP DISPLAY)
8794ACOVER, OUTER MIRROR, LH NO.2
87961MIRROR OUTER, LH
WITH(HEAD UP DISPLAY)&AUDIO-8INCH & JBL&BACK MONITOR-PANORAMIC VIEW MONITOR
WITH(HEAD UP DISPLAY)&AUDIO-8INCH & JBL&BACK MONITOR-PANORAMIC VIEW MONITOR
87966RETRACTOR, OUTER MIRROR, LH
WITH(HEAD UP DISPLAY)&AUDIO-8INCH & JBL&BACK MONITOR-PANORAMIC VIEW MONITOR
TAIWAN SPEC&WITH(HEAD UP DISPLAY)&AUDIO-AUDIO LESS & 6SPEAKER&BACK MONITOR-*BGM(NAVI READY PACKAGE)
WITH(HEAD UP DISPLAY)&AUDIO-8INCH & JBL&BACK MONITOR-PANORAMIC VIEW MONITOR
WITH(HEAD UP DISPLAY)
WITH(HEAD UP DISPLAY)
9017906146
main90179-06146
17 parts on this diagram · 3 diagrams in section
