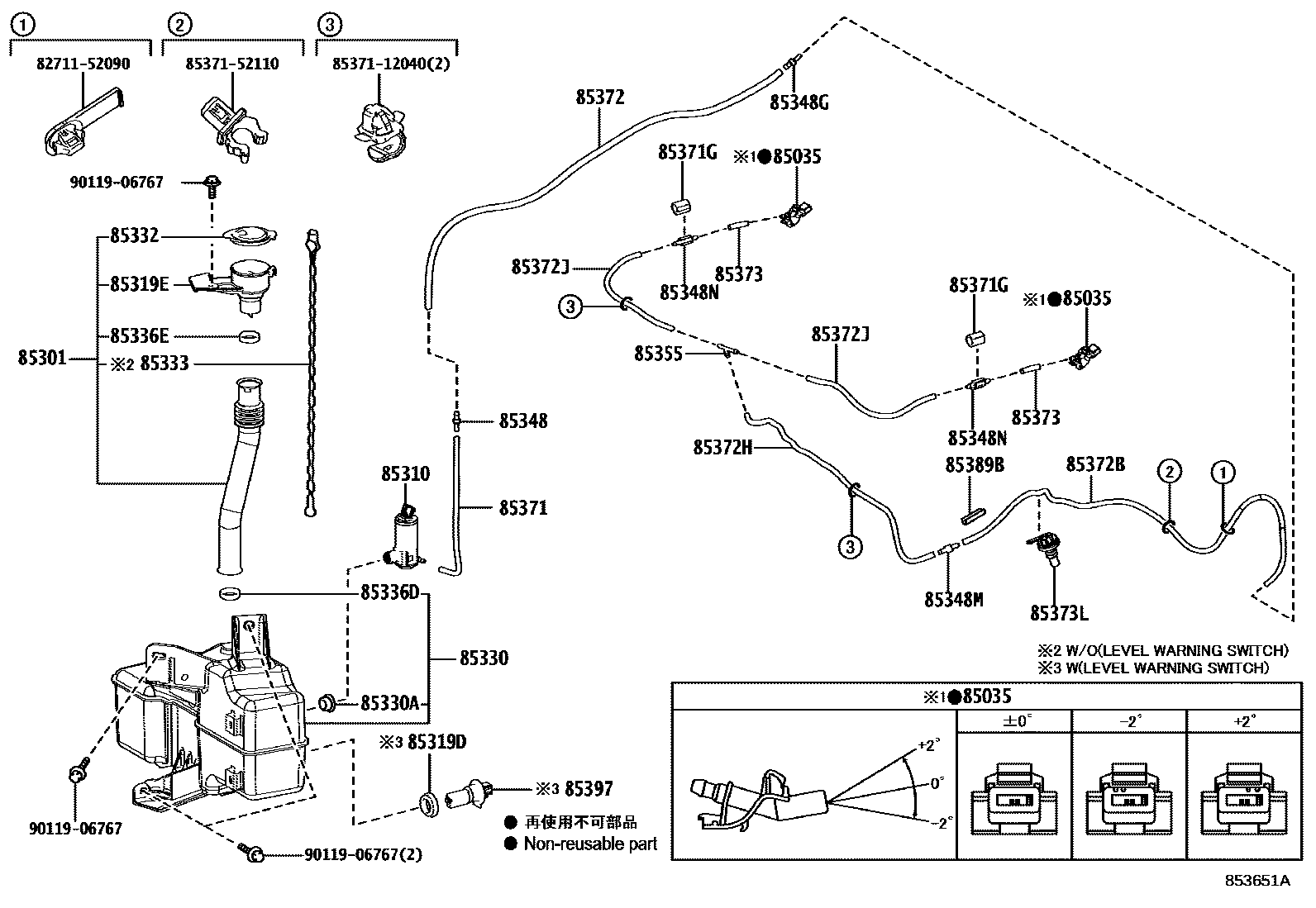

WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE 0
ANGLE -2
ANGLE +2
85301INLET SUB-ASSY, WASHER
WASHER FLUID LEVEL WARNING SENSOR-WITH
WASHER FLUID LEVEL WARNING SENSOR-WITH
85319DPACKING, FRONT WASHER
WASHER FLUID LEVEL WARNING SENSOR-WITH
85319EINLET WASHER
85330JAR ASSY, WINDSHIELD WASHER
WASHER FLUID LEVEL WARNING SENSOR-WITH
85330ABUSH, WINDSHIELD WASHER JAR
85333FILTER, WINDSHIELD WASHER JAR
85336DPACKING, WINDSHIELD WASHER JAR
85336EPACKING, WINDSHIELD WASHER INLET HOSE
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
85355VALVE, WINDSHIELD WASHER HOSE
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=250)
L=1450(*H,L=250),WASHER FLUID LEVEL WARNING SENSOR-WITH
85371GPROTECTOR, FRONT WASHER
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=900
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=740)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1450(*H,L=570)
L=1450(*H,L=515)
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
L=1450(*H,L=250)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=60)
85373LGROMMET, WASHER
85389BPROTECTOR, WINDSHIELD WASHER
85397SWITCH ASSY,LEVEL WARNING
WASHER FLUID LEVEL WARNING SENSOR-WITH
8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-52090
8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-12040
8537152110HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-52110
9011906767
main90119-06767
30 parts on this diagram · 1 diagram in section
