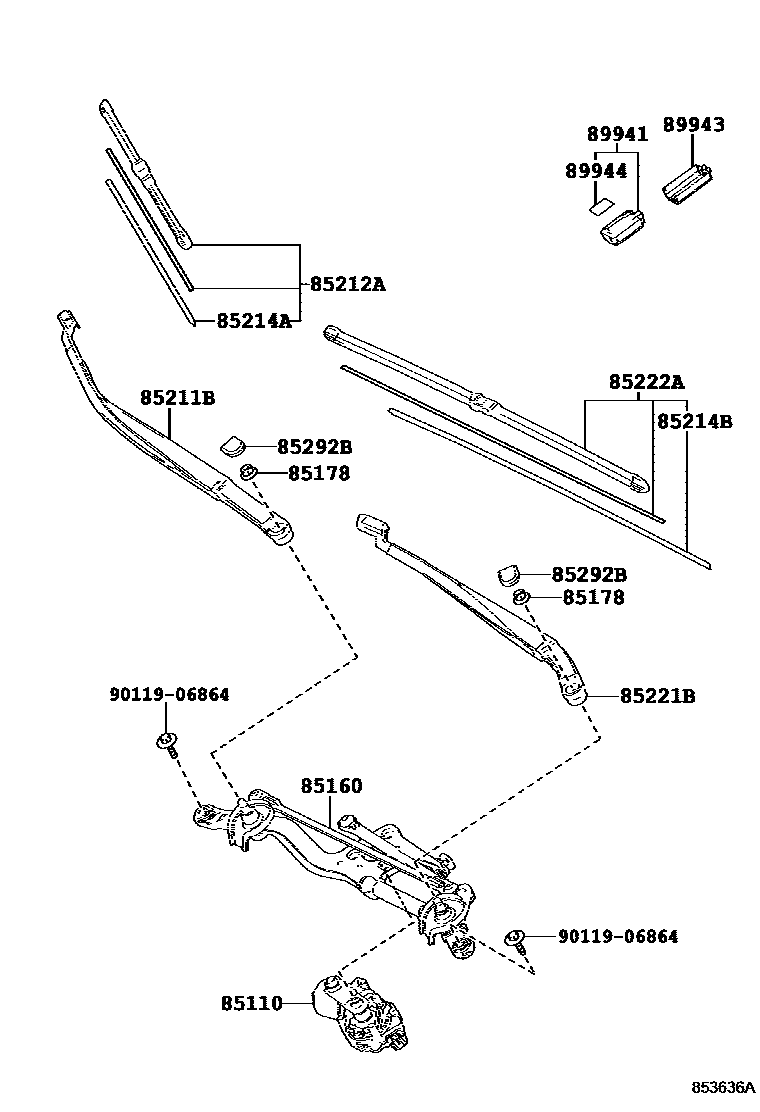

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-47290iZVW52..LHD201609-201904

main85110-47360iZVW52..RHD201609-201904

85160LINK ASSY, WINDSHIELD WIPER

main85150-47210iZVW52..RHD201609-201904

main85150-47220iZVW52..LHD201609-201904

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iZVW52201609-201904

85211BARM, FRONT WIPER, RH

main85211-47190iZVW52..LHD201609-201904

main85211-47200iZVW52..RHD201609-201904

85212ABLADE, FR WIPER, RH

main85212-47130iZVW52..LHD201609-201904

main85212-47160iZVW52..RHD201609-201904

85214ARUBBER, WIPER, RH

main85214-47110iZVW52..RHD201609-201904

main85214-78010iZVW52..LHD201609-201904

85214BRUBBER, WIPER, LH

main85214-47110iZVW52..LHD201609-201904

main85214-78010iZVW52..RHD201609-201904

85221BARM, FRONT WIPER, LH

main85221-47170iZVW52..LHD201609-201904

main85221-47180iZVW52..RHD201609-201904

85222ABLADE, FR WIPER, LH

main85222-47110iZVW52..RHD201609-201904

main85222-47120iZVW52..LHD201609-201904

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iZVW52201609-201904

89941SENSOR, RAIN

main89941-47020iZVW52201609-201904

sub89941-47021

main89941-47020iZVW52201905-201910

TAIWAN SPEC

sub89941-47021

main89941-47021iZVW52201911

89943COVER, RAIN SENSOR

main89943-47020iZVW52201609-201904

sub89943-47021

main89943-47020iZVW52201905-201910

TAIWAN SPEC

sub89943-47021

main89943-47021iZVW52201911

89944TAPE, RAIN SENSOR

main89944-42020iZVW52201806-201904

main89944-48010iZVW52201609-201805

9011906864

main90119-06864

14 parts on this diagram · 2 diagrams in section
