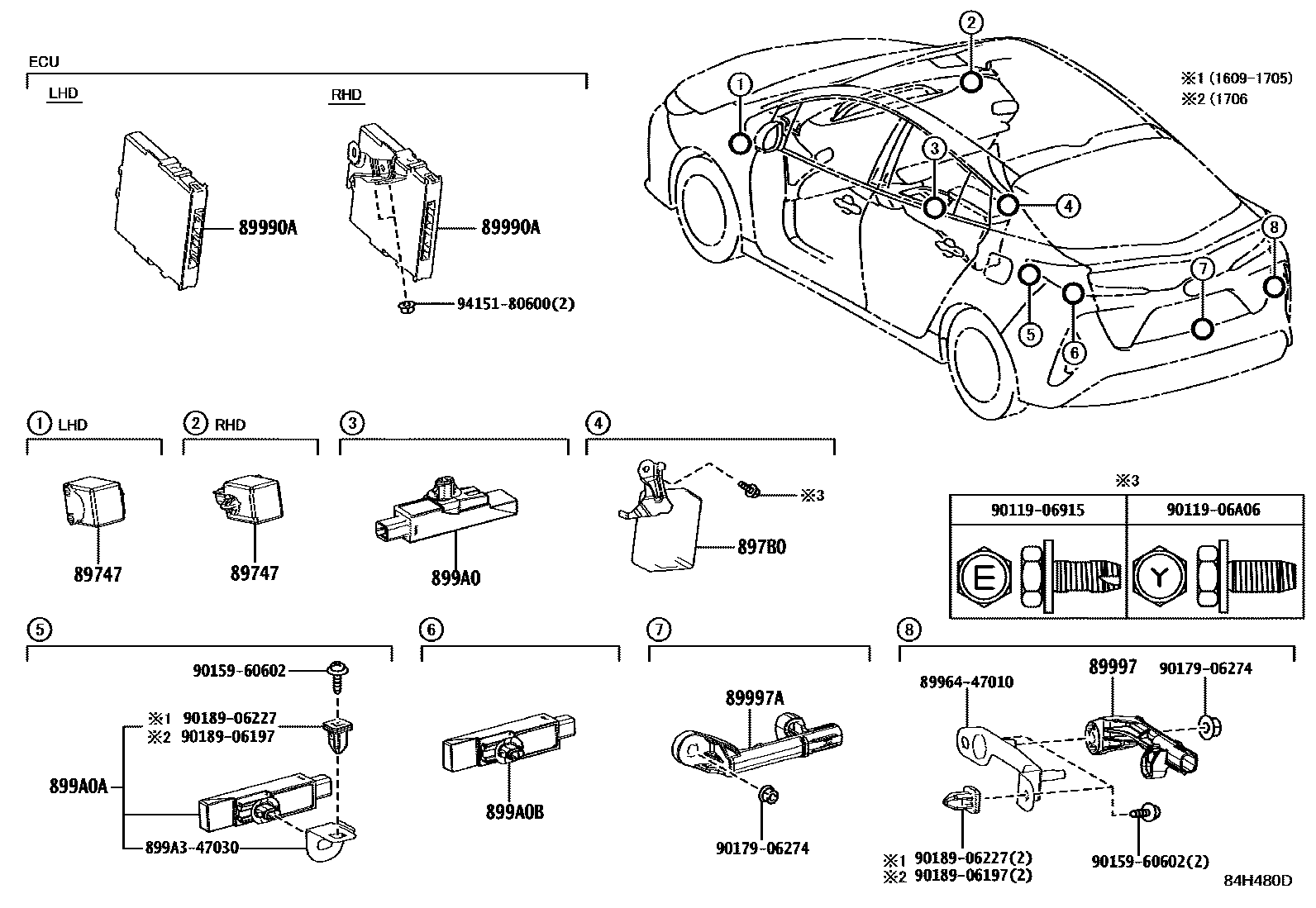

WIRELESS DOOR LOCK
89747BUZZER, WIRELESS DOOR LOCK
897B0RECEIVER ASSY, ELECTRICAL KEY & TPMS
REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN)&ID PLATE&TAIWAN SPEC&WITH(HEAD UP DISPLAY)
REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN)&ID PLATE&TAIWAN SPEC&WITH(HEAD UP DISPLAY)
89990ACOMPUTER ASSY, SMART KEY
89997ANTENNA, ELECTRICAL KEY
89997AANTENNA, ELECTRICAL KEY, NO.2
899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
8996447010BRACKET, ELECTRICAL KEY ANTENNA
main89964-47010
899A347030BRACKET, INDOOR ELECTRICAL KEY
main899A3-47030
9011906915
main90119-06915
9011906A06
main90119-06A06
9015960602
main90159-60602
9017906274
main90179-06274
9018906197
main90189-06197
9018906227
main90189-06227
9415180600
main94151-80600
17 parts on this diagram · 1 diagram in section
