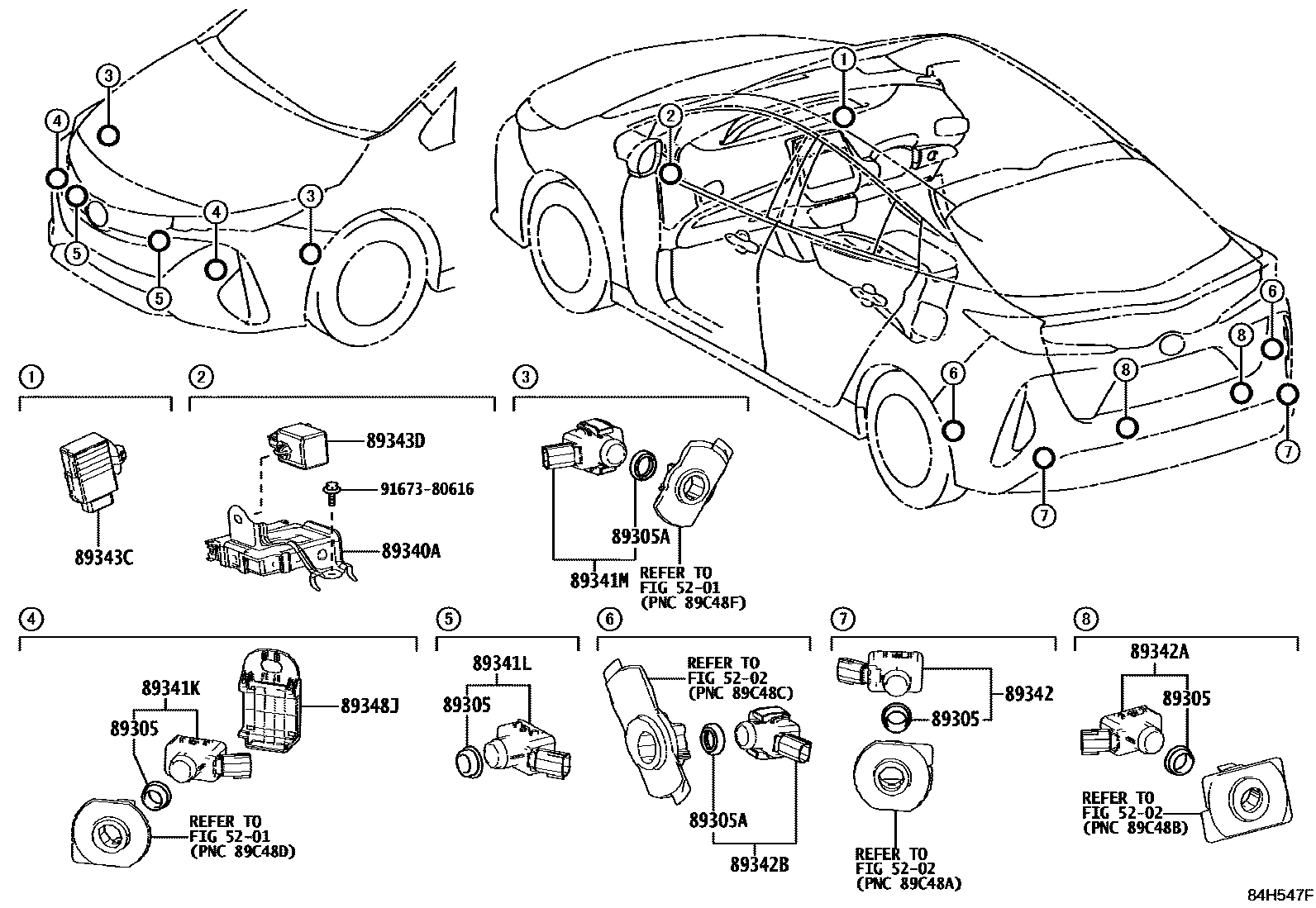

CLEARANCE & BACK SONAR
5201
5202
89305CUSHION SET, ULTRASONIC SENSOR
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA)
89305ACUSHION SET, ULTRASONIC SENSOR, NO.2
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA)
89340ACOMPUTER ASSY, CLEARANCE WARNING
CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR & *ICS & *IPA)
CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR & *ICS & *IPA)
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA)
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA)
89341KSENSOR, ULTRASONIC, FRONT CORNER
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA),SUPER WHITE 2,040
CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR & *ICS & *IPA),WHITE PEARL CS.,070
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA),PLATINUM WHITE PEARL MC.,089
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA),GRAY ME.,1G3
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA),DUMMY-MAT BLACK
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA),ATTITUDE BLACK MC.,218
CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR & *ICS & *IPA),EMOTIONAL RED,3T7
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA),EMOTIONAL RED 2,3U5
CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR & *ICS & *IPA),STEEL BLONDE,4X1
CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR & *ICS & *IPA),SPIRITED AQUA ME.,791
89341LSENSOR, ULTRASONIC, FRONT CENTER
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA),SUPER WHITE 2,040
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA),WHITE PEARL CS.,070
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA),PLATINUM WHITE PEARL MC.,089
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA),GRAY ME.,1G3
CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR & *ICS & *IPA),DUMMY-MAT BLACK
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA),ATTITUDE BLACK MC.,218
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA),EMOTIONAL RED 2,3U5
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA),SPIRITED AQUA ME.,791
89341MSENSOR, ULTRASONIC, FRONT SIDE
CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR & *ICS & *IPA),WHITE PEARL CS.,070
CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR & *ICS & *IPA),SUPER WHITE 2,040
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA),PLATINUM WHITE PEARL MC.,089
CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR & *ICS & *IPA),GRAY ME.,1G3
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA),ATTITUDE BLACK MC.,218
CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR & *ICS & *IPA),EMOTIONAL RED,3T7
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA),EMOTIONAL RED 2,3U5
CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR & *ICS & *IPA),STEEL BLONDE,4X1
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA),SPIRITED AQUA ME.,791
89342SENSOR, ULTRASONIC, REAR CORNER
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA),SUPER WHITE 2,040
CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR & *ICS & *IPA),WHITE PEARL CS.,070
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA),PLATINUM WHITE PEARL MC.,089
CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR & *ICS & *IPA),GRAY ME.,1G3
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA),DUMMY-MAT BLACK
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA),ATTITUDE BLACK MC.,218
CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR & *ICS & *IPA),EMOTIONAL RED,3T7
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA),EMOTIONAL RED 2,3U5
CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR & *ICS & *IPA),STEEL BLONDE,4X1
CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR & *ICS & *IPA),SPIRITED AQUA ME.,791
89342ASENSOR, ULTRASONIC, REAR CENTER
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA),SUPER WHITE 2,040
CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR & *ICS & *IPA),WHITE PEARL CS.,070
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA),PLATINUM WHITE PEARL MC.,089
CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR & *ICS & *IPA),GRAY ME.,1G3
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA),DUMMY-MAT BLACK
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA),ATTITUDE BLACK MC.,218
CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR & *ICS & *IPA),EMOTIONAL RED,3T7
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA),EMOTIONAL RED 2,3U5
CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR & *ICS & *IPA),STEEL BLONDE,4X1
CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR & *ICS & *IPA),SPIRITED AQUA ME.,791
89342BSENSOR, ULTRASONIC, REAR SIDE
CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR & *ICS & *IPA),WHITE PEARL CS.,070
CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR & *ICS & *IPA),SUPER WHITE 2,040
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA),PLATINUM WHITE PEARL MC.,089
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA),GRAY ME.,1G3
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA),ATTITUDE BLACK MC.,218
CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR & *ICS & *IPA),EMOTIONAL RED,3T7
PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA),EMOTIONAL RED 2,3U5
CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR & *ICS & *IPA),STEEL BLONDE,4X1
CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR & *ICS & *IPA),SPIRITED AQUA ME.,791
89343CBUZZER, CLEARANCE WARNING, NO.1
CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR & *ICS & *IPA)
89343DBUZZER, CLEARANCE WARNING, NO.2
CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR & *ICS & *IPA)
89348JCLIP, ULTRASONIC SENSOR
CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR & *ICS & *IPA)
9167380616
main91673-80616
15 parts on this diagram · 2 diagrams in section
