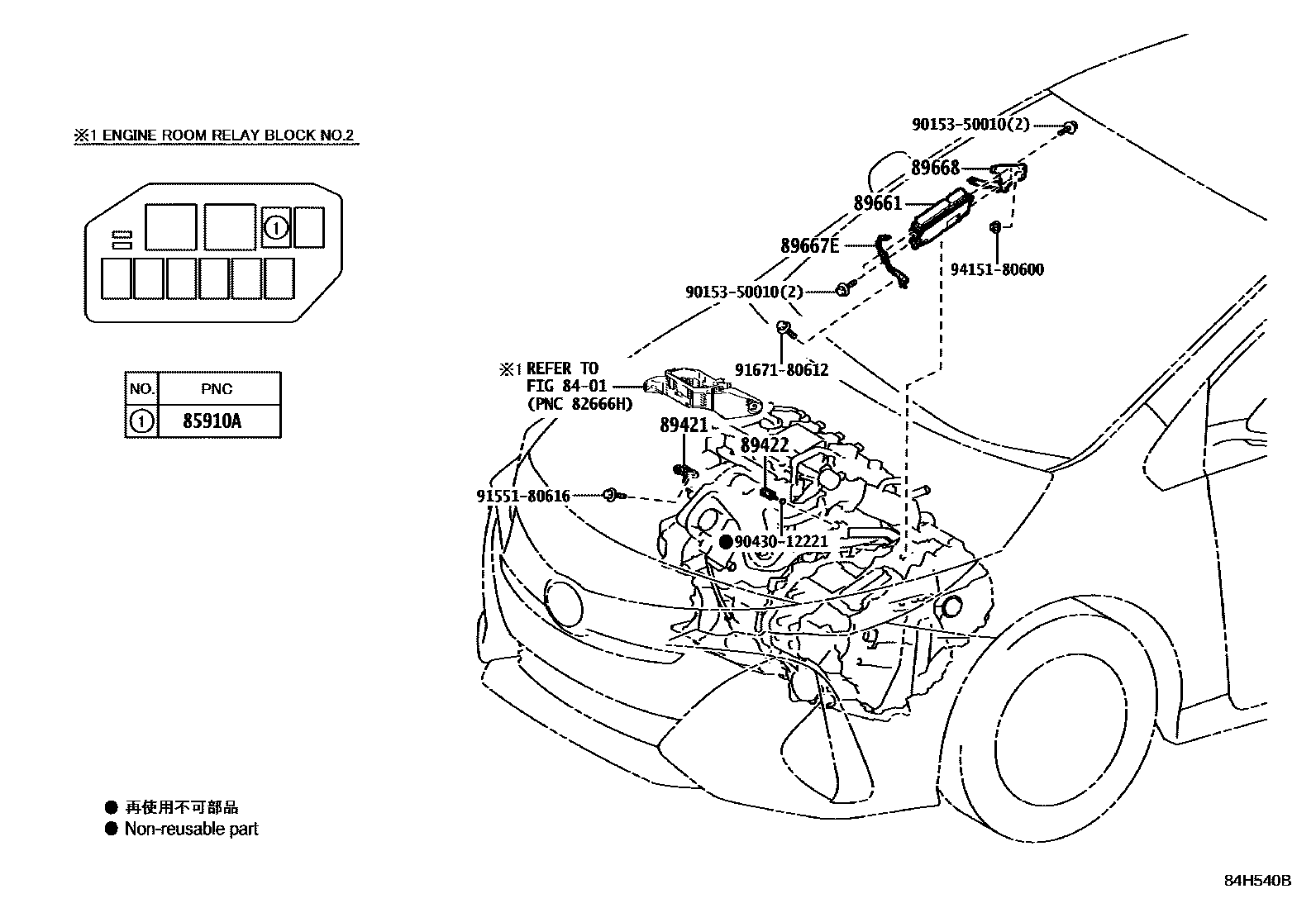

ELECTRONIC FUEL INJECTION SYSTEM

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02027iZVW52201609-201904

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iZVW52201609-201904

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iZVW52201609-201904

89661COMPUTER, ENGINE CONTROL

main89661-47770iZVW52201609-201801

sub89661-47771

main89661-47890iZVW52201801-201808

DENSO

sub89661-47891

main89661-47891iZVW52201809-201812

DENSO TEN

main89661-47B60iZVW52201812-201904

DENSO TEN

main89661-47C00iZVW52201905-202007

DENSO TEN

main89661-47D40iZVW52202007

DENSO TEN

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-47100iZVW52201609-201904

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-47050iZVW52201609-201904

9015350010

main90153-50010

9043012221

main90430-12221

9155180616

main91551-80616

9167180612

main91671-80612

9415180600

main94151-80600

12 parts on this diagram · 1 diagram in section
