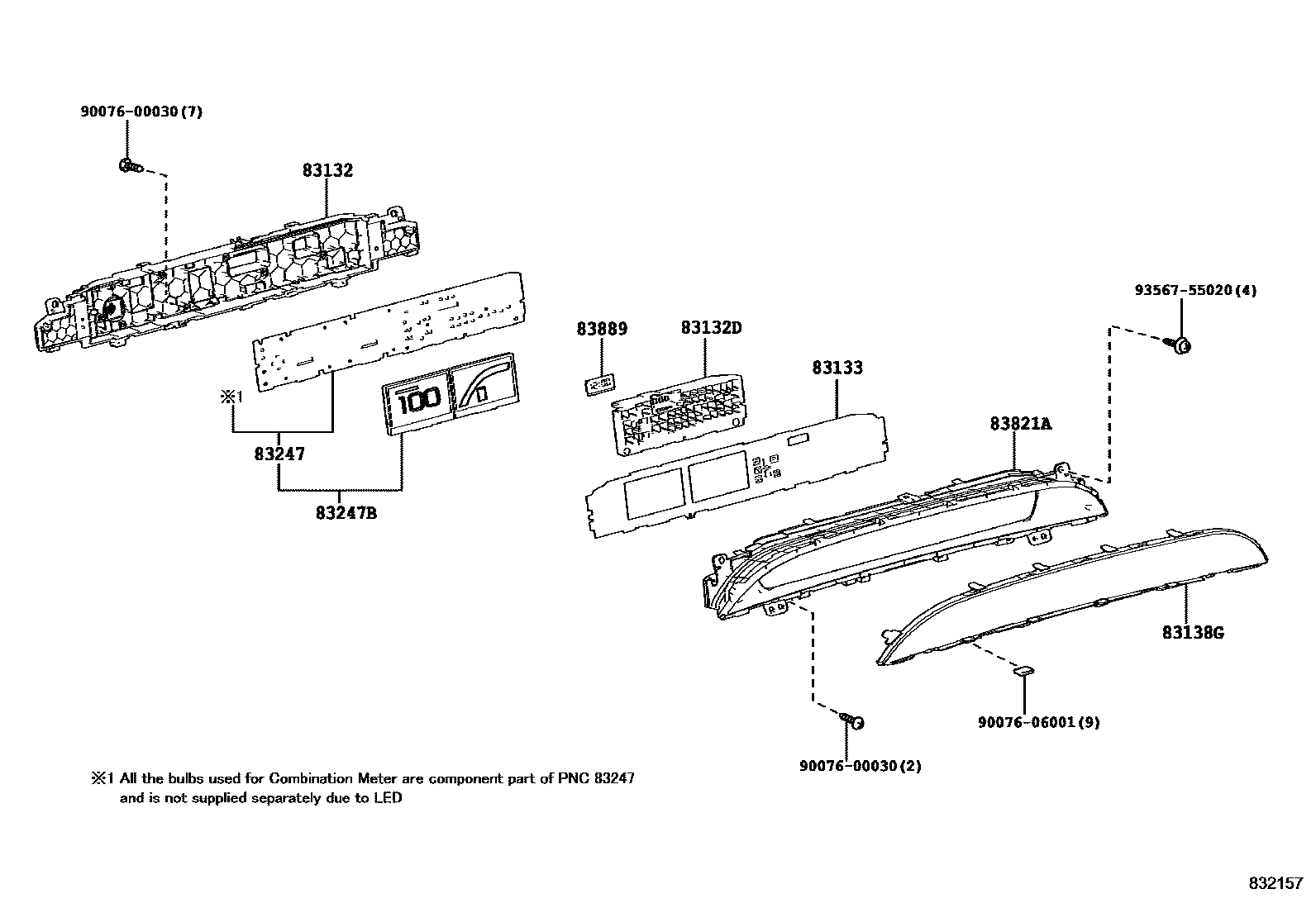

METER

83132CASE, COMBINATION METER

main83841-47L00i201905

main83841-47L20i201609-201904

83132DCASE, COMBINATION METER, NO.2

main83842-47L00i201905

main83842-47L20i201905

83133PLATE, COMBINATION METER, NO.1

main83811-47G30i202007

main83811-47L50i201905-202007

main83811-47L60i201905-202007

main83811-47N90i201609-201904

main83811-47P60i201609-201904

main83811-47Z70i202007

83138GGLASS, COMBINATION METER

main83852-47L00i201905

83247PLATE, METER CIRCUIT

main83861-47G30supersedes 83861-47G40i202007-202106

ENGLAND SPEC

main83861-47P20supersedes 83861-4E391i201609-201611

ENGLAND SPEC

main83861-47P21supersedes 83861-47N91i201611-201801

ENGLAND SPEC

main83861-47P80supersedes 83861-4E421i201609-201611

TAIWAN SPEC&WITH(HEAD UP DISPLAY)&PRE-COLLISION SYSTEM-WITH(HIGH SPEED ACC)&AUDIO-TAIWAN SPEC AVN & *BT & USB & JBLSPEAKER

main83861-47P81supersedes 83861-47P61i201611-201801

TAIWAN SPEC&WITH(HEAD UP DISPLAY)&PRE-COLLISION SYSTEM-WITH(HIGH SPEED ACC)&AUDIO-TAIWAN SPEC AVN & *BT & USB & JBLSPEAKER

main83861-47T40supersedes 83861-47T50i201801-201812

ENGLAND SPEC

main83861-47T90supersedes 83861-47T80i201801-201812

TAIWAN SPEC&WITH(HEAD UP DISPLAY)&PRE-COLLISION SYSTEM-WITH(HIGH SPEED ACC)&AUDIO-TAIWAN SPEC AVN & *BT & USB & JBLSPEAKER

main83861-47W10supersedes 83861-47W20i201905-202007

ENGLAND SPEC

main83861-47W60supersedes 83861-47W50i201905-202007

REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN)&ID PLATE&TAIWAN SPEC&WITH(HEAD UP DISPLAY)&AUDIO-TAIWAN SPEC T2 & JBLSPEAKER

main83861-47X00supersedes 83861-47X10i201812-201904

ENGLAND SPEC

main83861-47X50supersedes 83861-47X40i201812-201904

TAIWAN SPEC&WITH(HEAD UP DISPLAY)&PRE-COLLISION SYSTEM-WITH(HIGH SPEED ACC)&AUDIO-TAIWAN SPEC AVN & *BT & USB & JBLSPEAKER

main83861-47Z80supersedes 83861-47Z70i202007-202106

REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN)&ID PLATE&TAIWAN SPEC&WITH(HEAD UP DISPLAY)&AUDIO-AUDIO LESS & 6SPEAKER

main83861-4E380supersedes 83861-4E390i202106-202111

ENGLAND SPEC

main83861-4E381supersedes 83861-4E391i202111

ENGLAND SPEC

main83861-4E430supersedes 83861-4E420i202106-202111

REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN)&ID PLATE&TAIWAN SPEC&AUDIO-AUDIO LESS & 6SPEAKER

main83861-4E431supersedes 83861-4E421i202111

REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN)&ID PLATE&TAIWAN SPEC&AUDIO-AUDIO LESS & 6SPEAKER

83247BPLATE, METER CIRCUIT, NO.2

main83862-47G30supersedes 83862-47G40i202007-202106

ENGLAND SPEC

main83862-47P20supersedes 83862-4E391i201609-201611

ENGLAND SPEC

main83862-47P21supersedes 83862-47N91i201611-201801

ENGLAND SPEC

main83862-47P80supersedes 83862-4E421i201609-201611

TAIWAN SPEC&WITH(HEAD UP DISPLAY)&PRE-COLLISION SYSTEM-WITH(HIGH SPEED ACC)&AUDIO-TAIWAN SPEC AVN & *BT & USB & JBLSPEAKER

main83862-47P81supersedes 83862-47P61i201611-201801

TAIWAN SPEC&WITH(HEAD UP DISPLAY)&PRE-COLLISION SYSTEM-WITH(HIGH SPEED ACC)&AUDIO-TAIWAN SPEC AVN & *BT & USB & JBLSPEAKER

main83862-47T40supersedes 83862-47T50i201801-201812

ENGLAND SPEC

main83862-47T90supersedes 83862-47T80i201801-201812

TAIWAN SPEC&WITH(HEAD UP DISPLAY)&PRE-COLLISION SYSTEM-WITH(HIGH SPEED ACC)&AUDIO-TAIWAN SPEC AVN & *BT & USB & JBLSPEAKER

main83862-47W10supersedes 83862-47W20i201905-202007

ENGLAND SPEC

main83862-47W60supersedes 83862-47W50i201905-202007

REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN)&ID PLATE&TAIWAN SPEC&WITH(HEAD UP DISPLAY)&AUDIO-TAIWAN SPEC T2 & JBLSPEAKER

main83862-47X00supersedes 83862-47X10i201812-201904

ENGLAND SPEC

main83862-47X50supersedes 83862-47X40i201812-201904

TAIWAN SPEC&WITH(HEAD UP DISPLAY)&PRE-COLLISION SYSTEM-WITH(HIGH SPEED ACC)&AUDIO-TAIWAN SPEC AVN & *BT & USB & JBLSPEAKER

main83862-47Z80supersedes 83862-47Z70i202007-202106

REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN)&ID PLATE&TAIWAN SPEC&WITH(HEAD UP DISPLAY)&AUDIO-AUDIO LESS & 6SPEAKER

main83862-4E380supersedes 83862-4E390i202106-202111

ENGLAND SPEC

main83862-4E381supersedes 83862-4E391i202111

ENGLAND SPEC

main83862-4E430supersedes 83862-4E420i202106-202111

REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN)&ID PLATE&TAIWAN SPEC&AUDIO-AUDIO LESS & 6SPEAKER

main83862-4E431supersedes 83862-4E421i202111

REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN)&ID PLATE&TAIWAN SPEC&AUDIO-AUDIO LESS & 6SPEAKER

83821ACOVER, COMBINATION METER, NO.1

main83821-47L00i201609-201904

main83821-47L20i201609-201904

83889MULTI-DISPLAY, COMBINATION METER

main83889-62010i201609-201904

9007600030

main90076-00030

9007606001

main90076-06001

9356755020

main93567-55020

11 parts on this diagram · 4 diagrams in section
