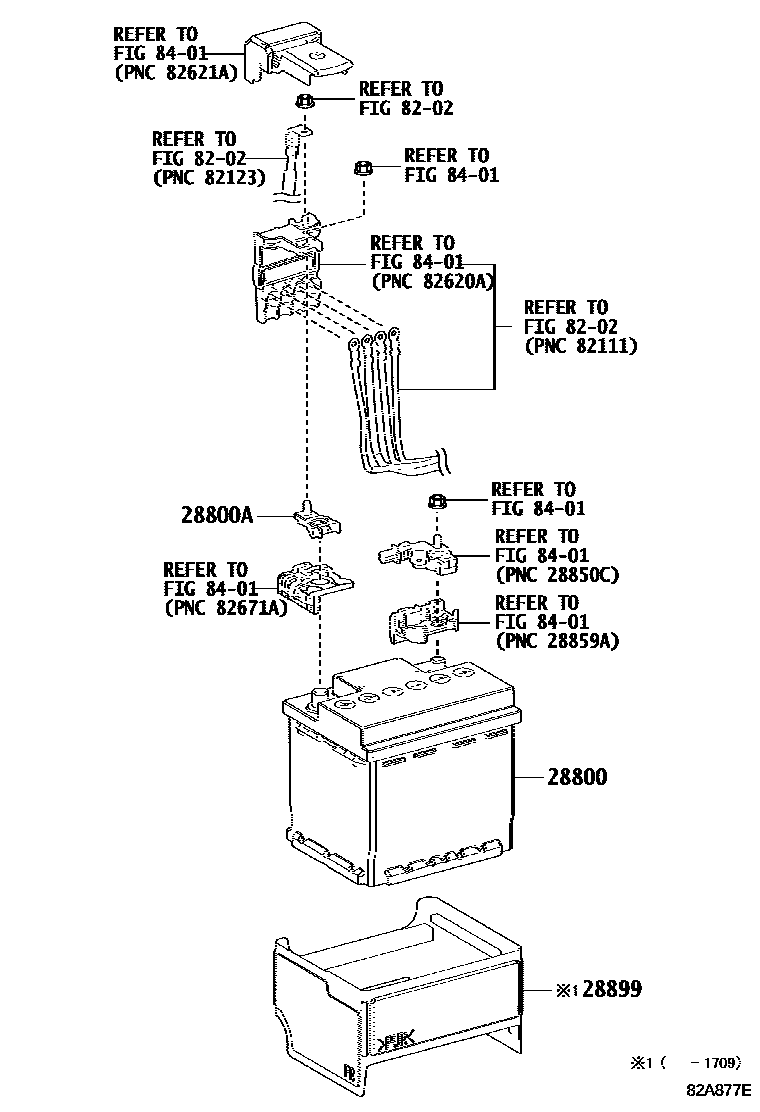

BATTERY & BATTERY CABLE

0001 112V BATTERY 0002 1HV BATTERY (1/2) 0003 1HV BATTERY (2/2) 0004 1SOLAR BATTERY

28800BATTERY

main28800-37130i2ZRFXE..ZVW52201609-202302

LN1

sub28800-37131

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i2ZRFXE..ZVW52201609-201904

28899INSULATOR, BATTERY

main28899-37060i2ZRFXE..ZVW52201609-201709

8202

8401

5 parts on this diagram · 4 diagrams in section
