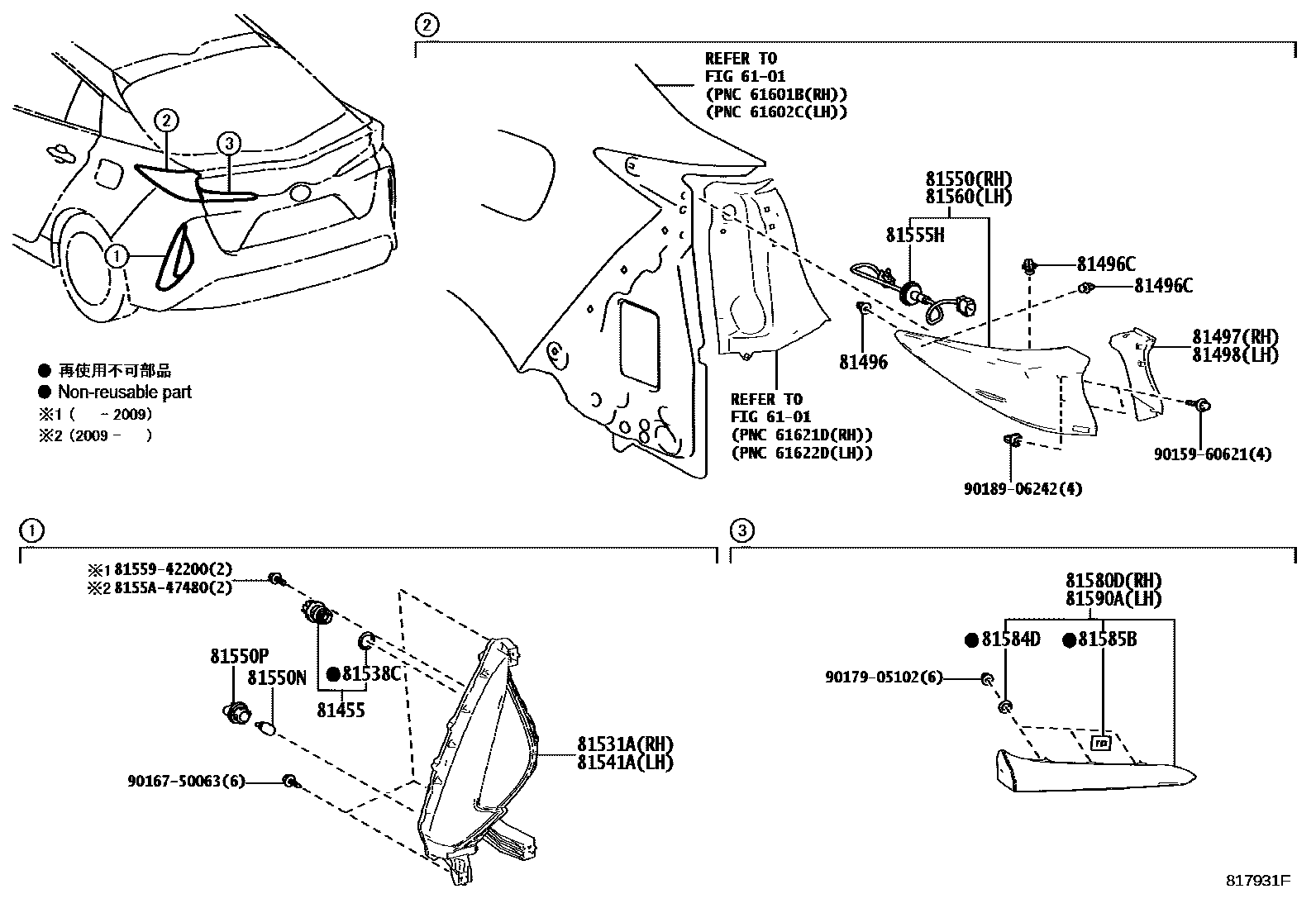

REAR COMBINATION LAMP

6101

81455LED, REAR FOG LAMP

main81455-42060iZVW52201609-201904

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iZVW52201609-201904

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-48010iZVW52201609-202211

81497COVER, REAR COMBINATION LAMP, RH

main81497-47030iZVW52201609-201904

81498COVER, REAR COMBINATION LAMP, LH

main81498-47030iZVW52201609-201904

81531ALENS & BODY, REAR TURN SIGNAL LAMP, RH

main81531-47030iZVW52201609-201904

81538CGASKET, REAR FOG LAMP

main81538-42200iZVW52201609-201904

81541ALENS & BODY, REAR TURN SIGNAL LAMP, LH

main81541-47030iZVW52201609-201904

81550LAMP ASSY, REAR COMBINATION, RH

main81550-47330iZVW52201609-201904

81550NBULB, BACK UP LAMP

main90981-11059iZVW52201609-201904

12V 16W

81550PSOCKET, BACK UP LAMP

main81615-12590iZVW52201609-201904

81555HSOCKET & WIRE, REAR COMBINATION LAMP

main81555-47330iZVW52201609-202005

sub81555-47331

main81555-47331iZVW52202005

81560LAMP ASSY, REAR COMBINATION, LH

main81560-47320iZVW52201609-201904

81580DLAMP ASSY, REAR, RH

main81580-47030iZVW52201609-201904

81584DGASKET, REAR LAMP

main81584-47030iZVW52201609-201904

81585BPACKING, REAR CONBINATION

main81582-47030iZVW52201609-201904

81590ALAMP ASSY, REAR, LH

main81590-47030iZVW52201609-201904

8155942200MOULDING, REAR COMBINATION LAMP, RH

main81559-42200

8155A47480

main8155A-47480

9015960621

main90159-60621

9016750063

main90167-50063

9017905102

main90179-05102

9018906242

main90189-06242

24 parts on this diagram · 1 diagram in section
