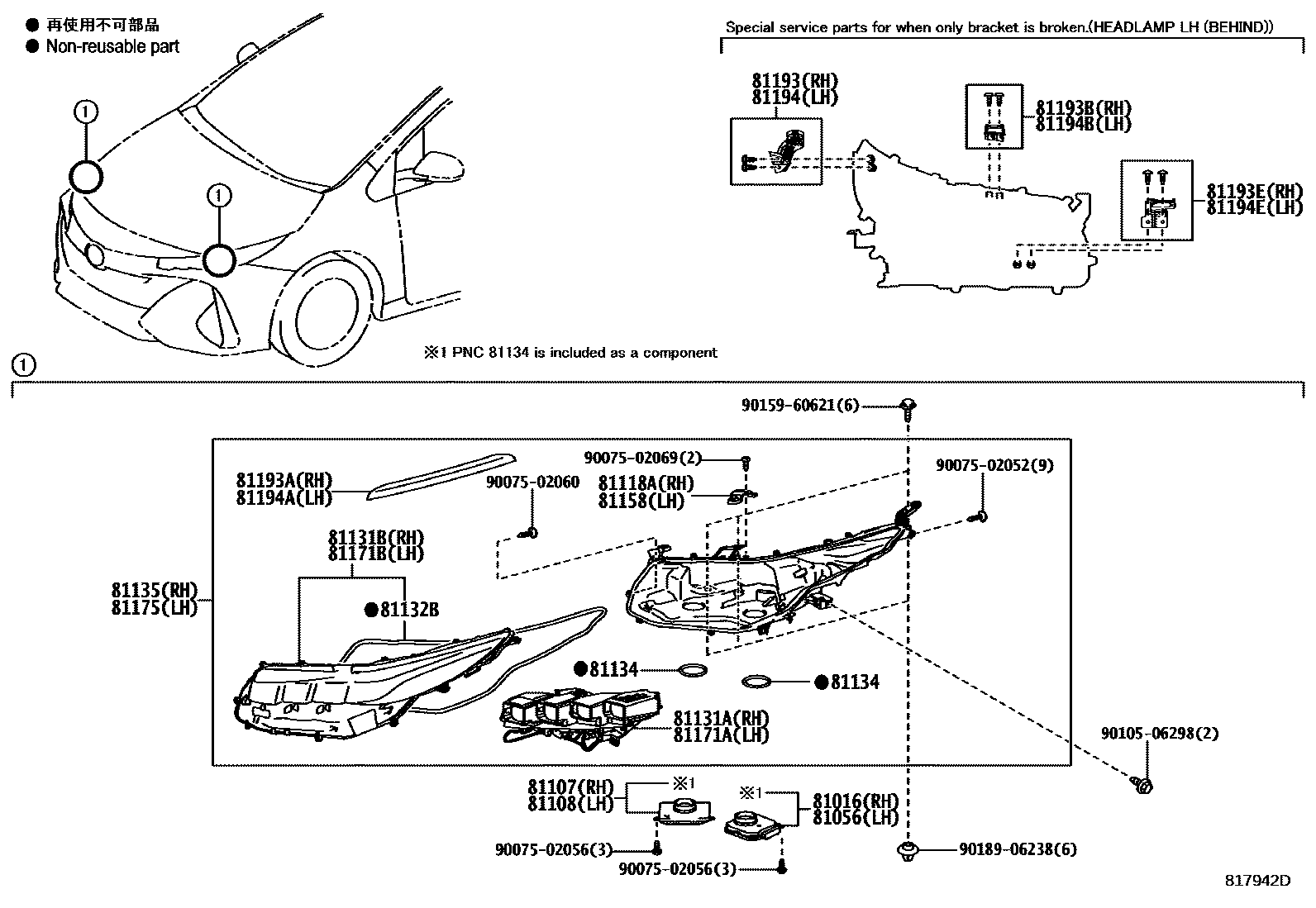

HEADLAMP
81016COMPUTER SUB-ASSY, HEADLAMP, RH NO.1
TAIWAN SPEC
81056COMPUTER SUB-ASSY, HEADLAMP, LH NO.1
TAIWAN SPEC
81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81118ABRACKET, HEADLAMP, RH
81131AUNIT, HEADLAMP, RH
TAIWAN SPEC
81131BHEAD LAMP LENS, RH
TAIWAN SPEC
81132BGASKET, HEADLAMP LENS
81134GASKET, HEADLAMP
81135UNIT ASSY, HEADLAMP, RH
TAIWAN SPEC
81158BRACKET, HEADLAMP, LH
81171AUNIT, HEADLAMP, LH
TAIWAN SPEC
81171BHEAD LAMP LENS, LH
TAIWAN SPEC
81175UNIT ASSY, HEADLAMP, LH
TAIWAN SPEC
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193APROTECTOR, HEADLAMP, RH
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81193ERETAINER, HEADLAMP PROTECTOR, UPPER RH NO.3
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194APROTECTOR, HEADLAMP, LH
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81194ERETAINER, HEADLAMP PROTECTOR, UPPER LH NO.3
9007502052
main90075-02052
9007502056
main90075-02056
9007502060
main90075-02060
9007502069
main90075-02069
9010506298
main90105-06298
9015960621
main90159-60621
9018906238
main90189-06238
29 parts on this diagram · 1 diagram in section
