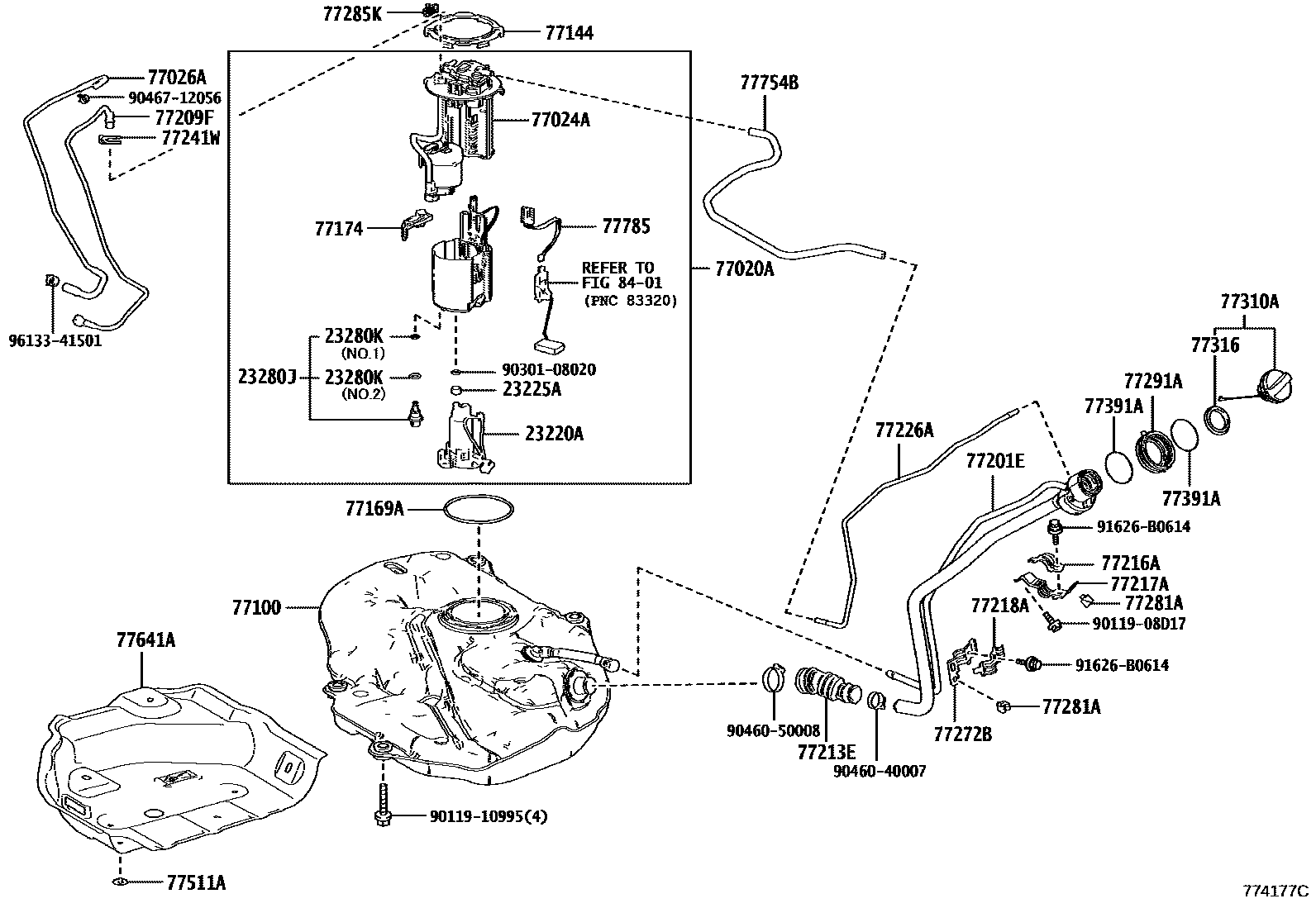

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TUBE 0005 1FUEL TUBE 0006 1FUEL LID OPENER

23220APUMP ASSY, FUEL W/FILTER

main23220-21211i2ZRFXE..ZVW52¥26,400201609-201812

23225ASPACER, FUEL PUMP

main23225-21020i2ZRFXE..ZVW52¥120201609-202007

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i2ZRFXE..ZVW52¥6,000201609-201904

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i2ZRFXE..ZVW52¥140201609-201904

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-12A60iZVW52¥42,900201812-202007

main77020-12A80iZVW52202007

main77020-47140iZVW52¥62,100201609-201812

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-10030iZVW52¥11,100201709-201812

main77024-12340iZVW52202007

main77024-47080iZVW52¥8,400201609-201708

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-47040iZVW52¥1,540201609-202007

77100TANK ASSY, FUEL

main77001-47130iZVW52201905-202007

main77001-47220iZVW52¥30,900201609-201904

main77001-47230iZVW52202007

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iZVW52¥1,270201609-201904

77169AGASKET, FUEL SUCTION TUBE SET

main77169-47030iZVW52¥220201609-201904

main77169-47040iZVW52¥700201905-202007

77174SUPPORT, FUEL SUCTION, NO.1

main77174-75010iZVW52¥410201609-201812

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-47180iZVW52201609-201812

main77210-47360iZVW52¥10,200201812-201904

main77210-47370iZVW52201905-202007

main77210-47380iZVW52202007

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-12340iZVW52202007

main77209-47100iZVW52¥1,180201609-201904

main77209-76050iZVW52¥1,520201905-202007

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-12360iZVW52¥1,090201812-201904

main77213-47120iZVW52¥1,410201609-201812

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-53020iZVW52¥480201609-201812

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-47090iZVW52¥570201609-201812

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-47070iZVW52201609-201812

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-47110iZVW52201609-201812

77241WCLIP, TUBE JOINT

main77241-33011iZVW52¥80201609-202109

main77241-60550iZVW52¥50202110

77272BSUPPORT, BREATHER TUBE, NO.1

main77272-47020iZVW52201609-201812

77281ACLAMP, FUEL FILLER PIPE

main77281-30110iZVW52¥190201609-201812

77285KCLAMP, FUEL TUBE, NO.1

main77285-30350iZVW52¥200201609-201904

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-47040iZVW52¥1,020201609-201904

77310ACAP ASSY, FUEL TANK

main77300-12020iZVW52¥1,660201609-201904

main77300-33040iZVW52¥2,370202007

main77300-48020iZVW52¥1,960201905-202007

77316GASKET, FUEL TANK CAP

main77316-52040iZVW52¥230201609-201904

main77316-75020iZVW52¥200201905

77391ARING, FUEL INLET BOX

main77391-12020iZVW52¥180201609-201904

77511ABRACKET, FUEL TANK

main77512-35140iZVW52¥230201609-201904

77641APROTECTOR, FUEL TANK, NO.1

main77641-47060iZVW52¥3,230202007

main77641-47070iZVW52¥4,860201609-202007

77754BHOSE, CHARCOAL CANISTER OUTLET

main77754-47090iZVW52¥1,760201609-202007

77785HARNESS, FUEL PUMP

main77785-12010iZVW52¥870201609-202007

main77785-12050iZVW52202007

8401

9011908D17

main90119-08D17¥100

9011910995

main90119-10995¥190

9030108020

main90301-08020¥250

9046040007

main90460-40007¥190

9046050008

main90460-50008¥240

9046712056

main90467-12056¥70

91626B0614

main91626-B0614¥60

9613341501

main96133-41501¥90

39 parts on this diagram · 6 diagrams in section
