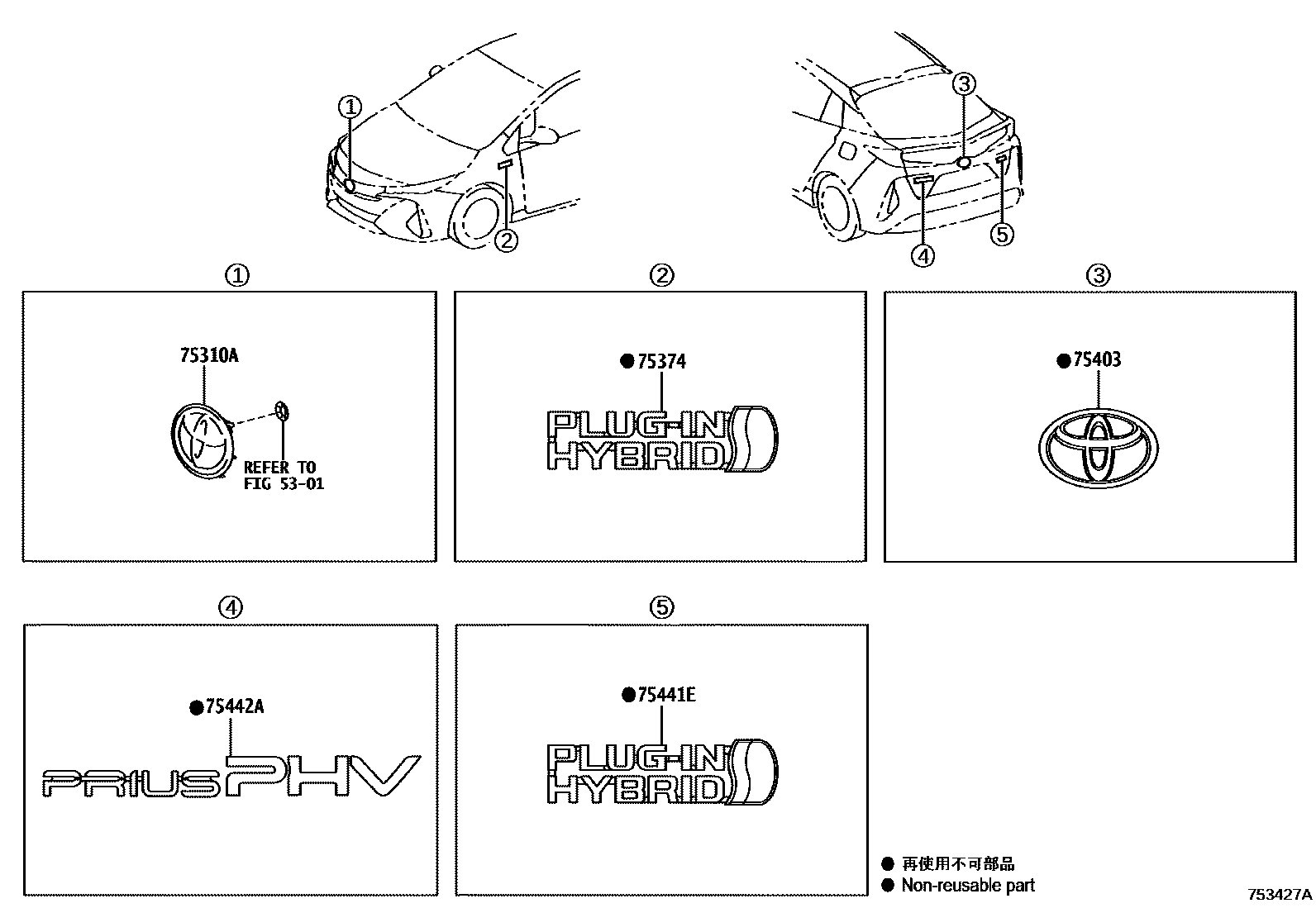

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

5301

75310AEMBLEM ASSY, RADIATOR GRILLE

main53141-47030iZVW52201609-202103

sub53141-47031

main53141-47031iZVW52202104

75374EMBLEM, SIDE PANEL

main75374-47130iZVW52201609-201904

RH

main75374-47190iZVW52201609-201904

LH

75403ORNAMENT SUB-ASSY, BACK DOOR

main75403-12040iZVW52201609-201904

75441EPLATE, BACK DOOR NAME, NO.1

main75441-47140iZVW52201609-201904

PLUG-IN HYBRID

75442APLATE, BACK DOOR NAME, NO.2

main75442-47170iZVW52201609-201904

PRIUS PHV

6 parts on this diagram · 1 diagram in section
