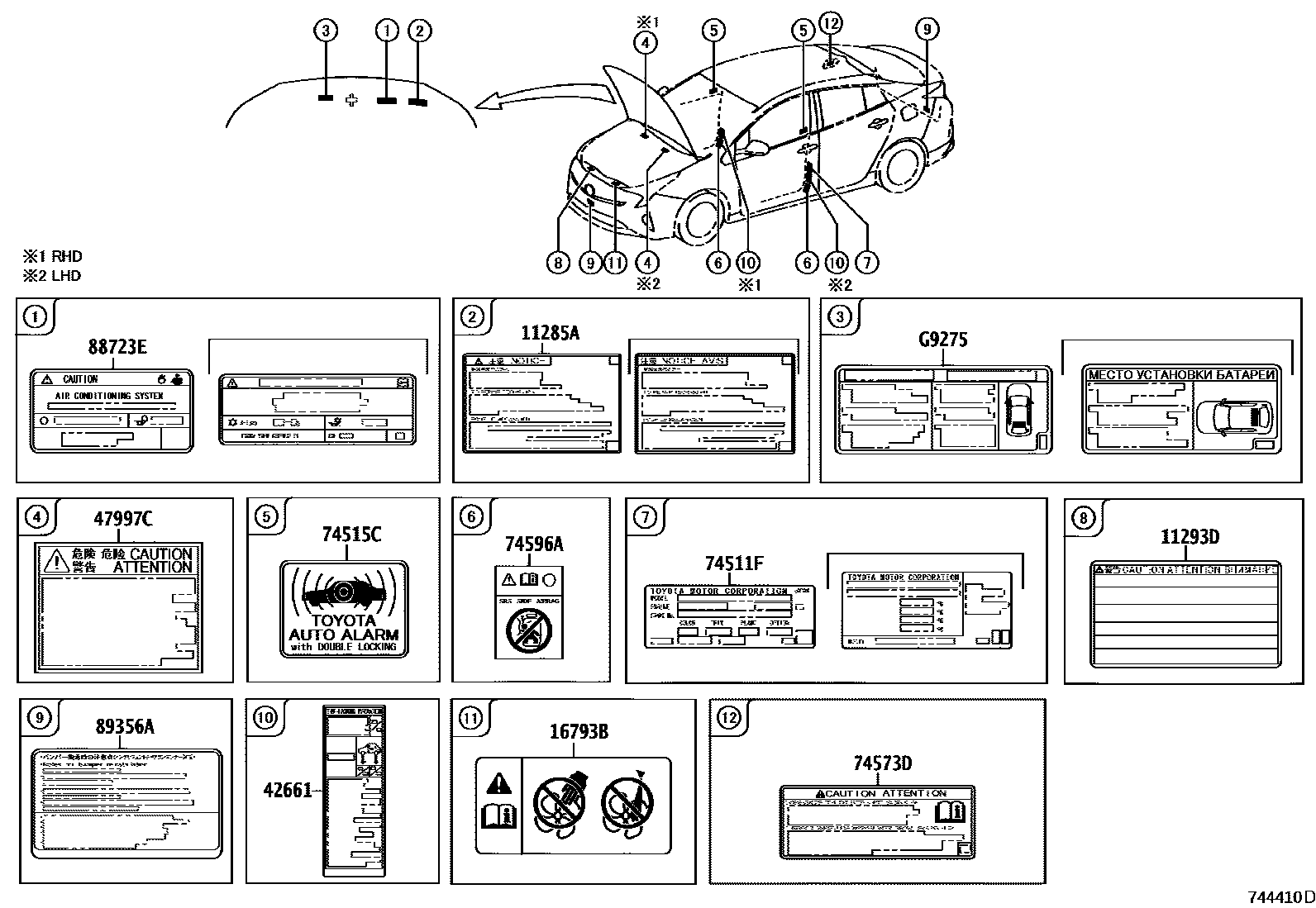

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

11285ALABEL, COOLANT SYSTEM NOTICE

main11285-33030i2ZRFXE..ZVW52201609-202007

main11285-36010i2ZRFXE..ZVW52..LHD201609-201904

TAIWAN SPEC

11293DLABEL, ENGINE CAUTION

main11293-36070i2ZRFXE..ZVW52201609-201904

16793BLABEL, COOLING FAN INFORMATION

main16793-36030i2ZRFXE..ZVW52201609-201904

42661LABEL, TIRE PRESSURE INFORMATION

main42661-47A20iZVW52201905

TIRE & DISC WHEEL-215/45R17 JAPAN/EU 7J ALUMINUM

47997CLABEL, ACCUMULATOR CAUTION, NO.1

main47997-76010iZVW52201609-201904

74511FLABEL, NAME (IDENTIFICATION LASER LABEL)

main74511-33070iZVW52202103

*111

main74511-60480iZVW52201609-202102

*111

sub74511-33070

main74511-2B300iZVW52..LHD201905

*111,TAIWAN SPEC

74515CLABEL, THEFT WARNING INFORMATION

main74515-42010iZVW52..RHD201609-201904

74573DLABEL, ELECTRIC VEHICLE BATTERY CAUTION

main74573-47070iZVW52201609-202007

main74573-47100iZVW52202007

74596ALABEL, SIDE AIRBAG CAUTION

main74596-53012iZVW52201609-201707

main74596-74020iZVW52201708-201904

88723ELABEL, COOLER SERVICE CAUTION

main88723-47220iZVW52201609-202007

main88723-47240iZVW52202007

main88723-47230iZVW52..LHD201609-201904

REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL LABEL(TAIWAN)&ID PLATE&TAIWAN SPEC

89356ALABEL, CLEARANCE WARNING INFORMATION

main89356-47020iZVW52201609-201904

CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR & *ICS & *IPA)

G9275LABEL, BATTERY CAUTION, NO.1

mainG927547190iZVW52..LHD201905

SOLAR ROOF-WITH

12 parts on this diagram · 2 diagrams in section
