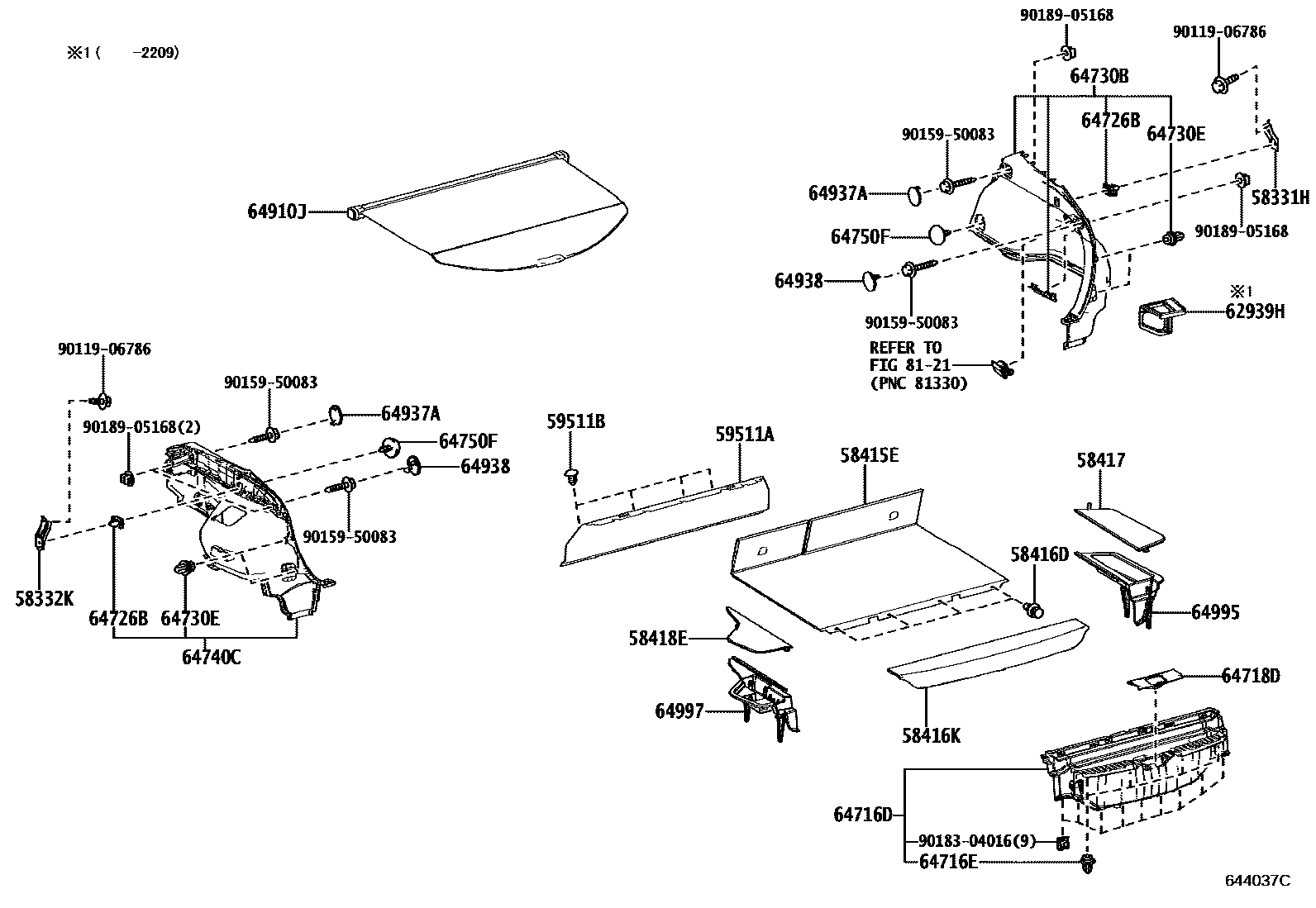

DECK BOARD & DECK TRIM COVER
58331HBRACKET, LUGGAGE COMPARTMENT TRIM, NO.1
58332KBRACKET, LUGGAGE COMPARTMENT TRIM, NO.2
58415EBOARD, REAR FLOOR, NO.1
BLACK,TRIM1#,2#
58416DCLIP, REAR FLOOR BOARD
58416KBOARD, REAR FLOOR, NO.2
BLACK,TRIM1#,2#
58417BOARD, REAR FLOOR, NO.3
BLACK,TRIM1#,2#
58418EBOARD, REAR FLOOR, NO.4
BLACK,TRIM1#,2#
59511ABOARD, REAR FLOOR BATTERY COVER, FRONT
59511BCLIP, REAR FLOOR BATTERY COVER BOARD
62939HSILENCER, QUARTER VENT
64716DCOVER, DECK TRIM, REAR
BLACK,TRIM1#,2#
64716ECLIP(FOR DECK TRIM REAR COVER)
64718DCOVER, DECK TRIM SERVICE HOLE
BLACK,TRIM1#,2#
64726BCLIP, DECK REAR TRIM
64730BPANEL ASSY, DECK TRIM SIDE, RH
64730ECLIP(FOR DECK TRIM SIDE BOARD)
64740CPANEL ASSY, DECK TRIM SIDE, LH
BLACK,TRIM1#,2#
64750FCLIP(FOR DECK SIDE TRIM PANEL)
BLACK,TRIM1#,2#
64910JCOVER ASSY, TONNEAU
BLACK,TRIM1#,2#
64937ACAP, TONNEAU COVER HOLDER, NO.1
BLACK,TRIM1#,2#
64938HOOK, TONNEAU COVER, A
BLACK,TRIM1#,2#
64995BOX, DECK FLOOR, RH
64997BOX, DECK FLOOR, LH
8121
9011906786
main90119-06786
9015950083
main90159-50083
9018304016
main90183-04016
9018905168
main90189-05168
28 parts on this diagram · 1 diagram in section
