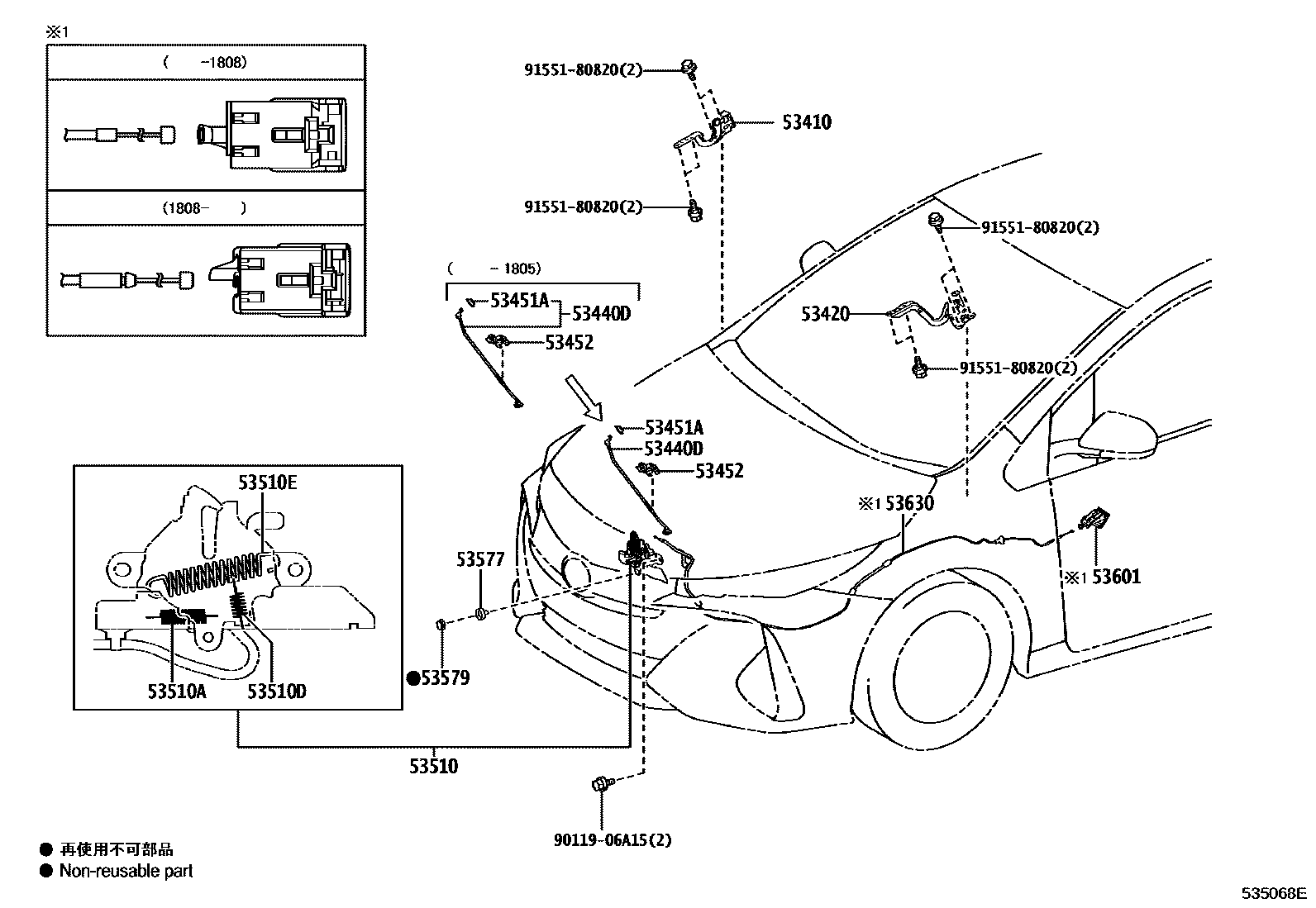

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-47130iZVW52201609-201904

53420HINGE ASSY, HOOD, LH

main53420-47130iZVW52201609-201904

53440DSUPPORT ASSY, HOOD

main53440-47060iZVW52201609-201805

main53440-47070iZVW52201805-201904

main53440-47080iZVW52..LHD202009

TAIWAN SPEC

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15025iZVW52201905

53452HOLDER, HOOD STAY

main53452-47050iZVW52201905

53510LOCK ASSY, HOOD

main53510-47160iZVW52..RHD201905

main53510-47170iZVW52..LHD201609-201904

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iZVW52201609-201904

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iZVW52201905

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-14085iZVW52201609-201904

WD=1.4,CW=12

53577BOLT, HOOD LOCK

main53577-33010iZVW52201609-201904

53579CAP, HOOD LOCK NUT

main53579-50010iZVW52201609-201904

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30100-C0iZVW52201905

BLACK,TRIM1#,2#

main53601-52010-C0iZVW52201609-201612

BLACK,TRIM1#,2#

main53601-52010-C1iZVW52201612-201808

BLACK,TRIM1#,2#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-47100iZVW52..LHD201609-201808

main53630-47101iZVW52..LHD201905

main53630-47110iZVW52..RHD201609-201808

main53630-47111iZVW52..RHD201808-201904

9011906A15

main90119-06A15

9155180820

main91551-80820

15 parts on this diagram · 2 diagrams in section
