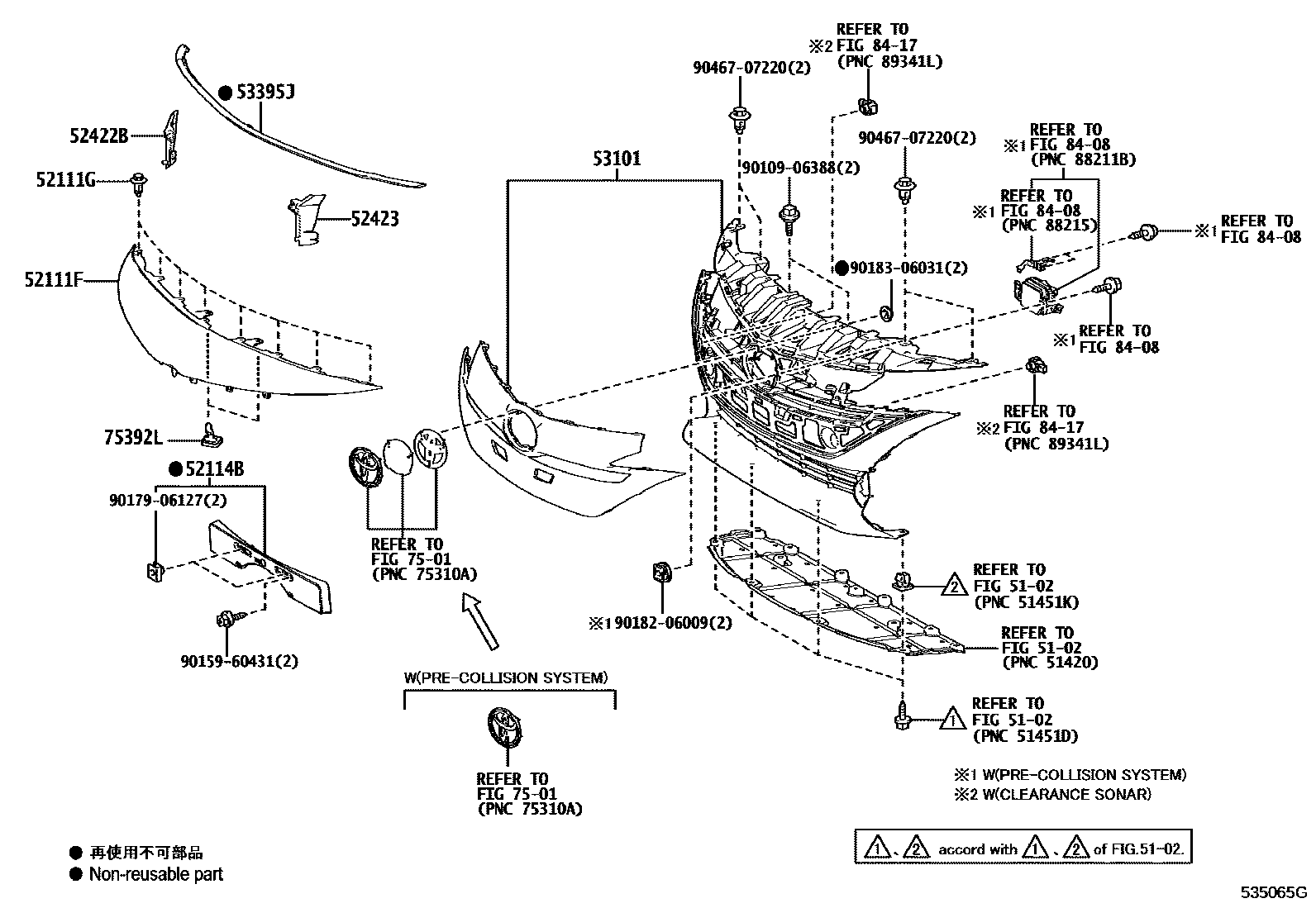

RADIATOR GRILLE
5102
52111FBAR, FRONT BUMPER, CENTER
52111GCLIP, FRONT BUMPER BAR
52114BBRACKET, FRONT BUMPER EXTENSION MOUNTING
52422BPAD, FRONT BUMPER, RH
52423PAD, FRONT BUMPER, LH
53101GRILLE SUB-ASSY, RADIATOR
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR & *ICS & *IPA)
sub53101-47051
NO PAINT REQ.,PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA)
sub53101-47052
NO PAINT REQ.,PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA)
NO PAINT REQ.,BACK MONITOR-PANORAMIC VIEW MONITOR
NO PAINT REQ.,PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA)&BACKMONITOR-PANORAMIC VIEW MONITOR
sub53101-47071
NO PAINT REQ.,PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA)&BACKMONITOR-PANORAMIC VIEW MONITOR
NO PAINT REQ.,PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA)
NO PAINT REQ.,BACK MONITOR-PANORAMIC VIEW MONITOR
NO PAINT REQ.,PARKING SUPPORT ALART/BRAKE-WITH(CLEARANCE SONAR & *ICS & *IPA)&BACKMONITOR-PANORAMIC VIEW MONITOR
53395JSEAL, HOOD TO FRONT END PANEL
7501
75392LRETAINER, OUTSIDE MOULDING
8408
8417
9010906388
main90109-06388
9015960431
main90159-60431
9017906127
main90179-06127
9018206009
main90182-06009
9018306031
main90183-06031
9046707220
main90467-07220
18 parts on this diagram · 3 diagrams in section
