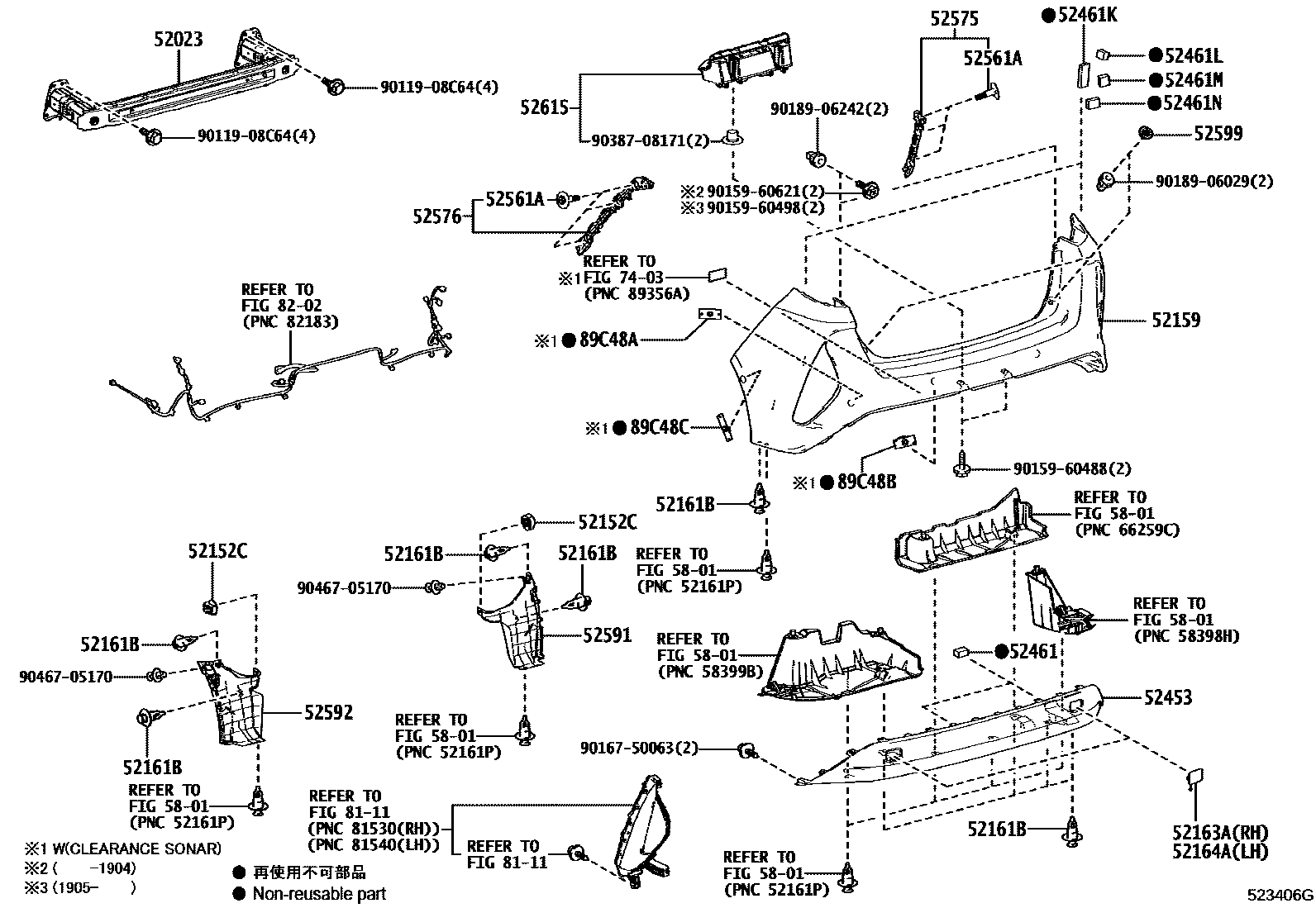

REAR BUMPER & BUMPER STAY

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-47040iZVW52¥15,500201609-201904

52152CCLIP, REAR BUMPER SIDE

main90467-06206-C0iZVW52201609-201904

BLACK

52159COVER, REAR BUMPER

main52159-47917iZVW52¥29,500201609-201904

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-16010iZVW52¥120201609-201904

sub52161-0K040¥120

52163APLATE, REAR BUMPER, RH

main52163-47070iZVW52¥410201609-201904

52164APLATE, REAR BUMPER, LH

main52164-47060iZVW52¥410201609-201904

52453GUARD, REAR BUMPER, CENTER

main52453-47030iZVW52¥12,200201609-201904

52461PAD, REAR BUMPER, CENTER

main52461-47030iZVW52¥220201609-201904

52461KPAD, REAR BUMPER, NO.1

main52462-47020iZVW52¥140201609-201904

52461LPAD, REAR BUMPER, NO.2

main52462-47030iZVW52¥180201609-201712

main52462-47040iZVW52¥230201905

52461MPAD, REAR BUMPER, NO.3

main52462-47040iZVW52¥230201609-201904

main52462-47070iZVW52¥330201905

52461NPAD, REAR BUMPER, NO.4

main52462-47070iZVW52¥330201609-201904

52561ACLIP(FOR REAR BUMPER RETAINER)

main90467-09237iZVW52¥80201609-201904

52575RETAINER, REAR BUMPER SIDE, RH

main52575-47050iZVW52¥3,310201609-201904

52576RETAINER, REAR BUMPER SIDE, LH

main52576-47050iZVW52¥3,310201609-201904

52591SEAL, REAR BUMPER SIDE, RH

main52591-47060iZVW52¥2,400201609-201904

52592SEAL, REAR BUMPER SIDE, LH

main52592-47050iZVW52¥2,400201609-201904

52599STOPPER, REAR BUMPER, UPPER

main52599-68030iZVW52¥130201609-201904

52615ABSORBER, REAR BUMPER ENERGY

main52615-47090iZVW52¥3,970201609-201904

5801

7403

8111

8202

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

89C48CRETAINER, ULTRASONIC SENSOR, REAR SIDE

9011908C64

main90119-08C64¥90

9015960488

main90159-60488¥70

9015960498

main90159-60498¥70

9015960621

main90159-60621¥60

9016750063

main90167-50063¥60

9018906029

main90189-06029¥100

9018906242

main90189-06242¥70

9038708171

main90387-08171¥70

9046705170

main90467-05170¥80

35 parts on this diagram · 1 diagram in section
