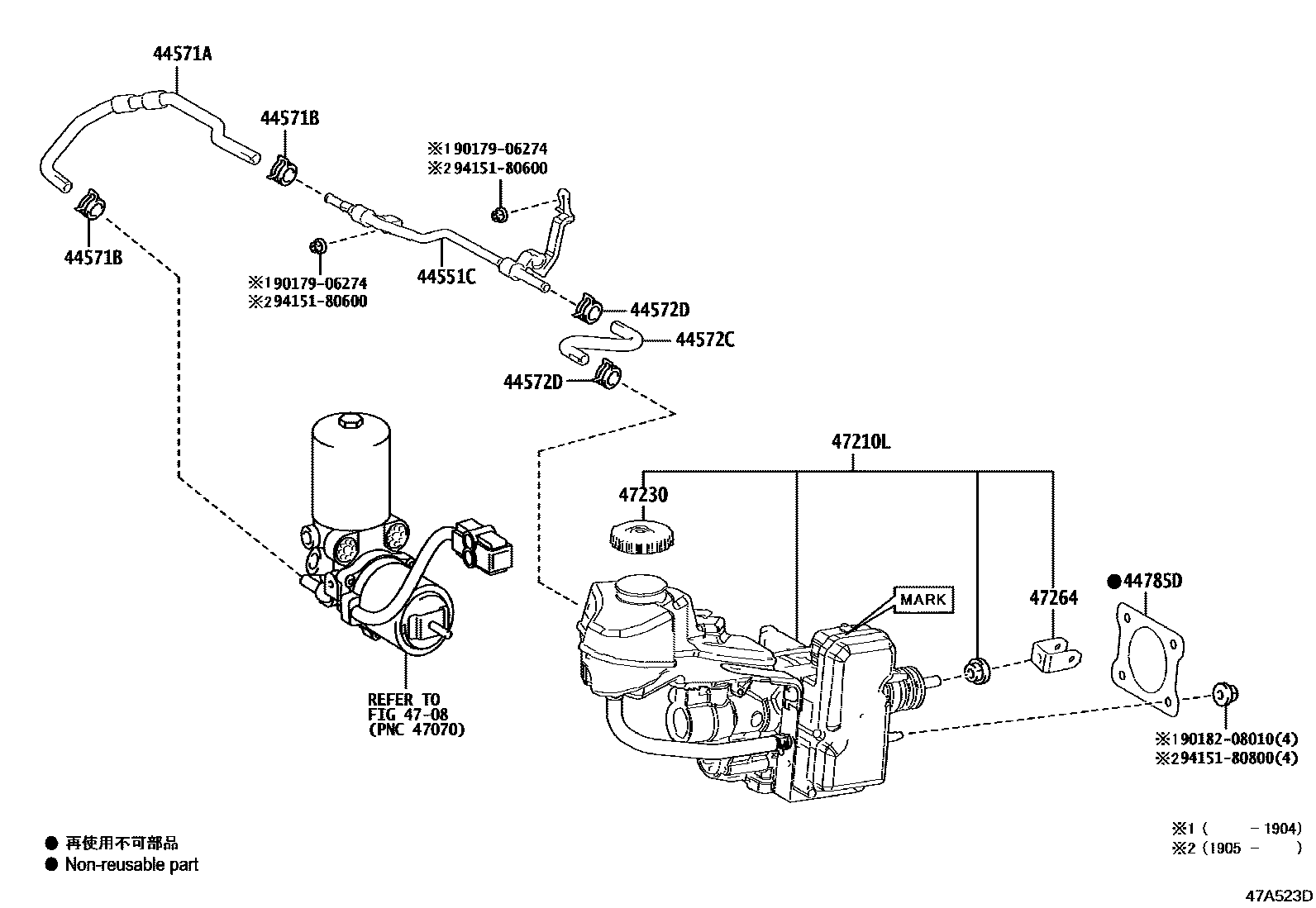

BRAKE MASTER CYLINDER

44551CTUBE, BRAKE ACTUATOR, NO.1

main44551-47050i201609-201904

main44551-47060i201609-201904

44571AHOSE, BRAKE ACTUATOR, NO.1

main44571-47070i201609-201904

main44571-47080i201609-201904

44571BCLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1)

main96137-41501i201609-201904

44572CHOSE, BRAKE ACTUATOR, NO.2

main44572-47050i201609-201904

main44572-47060i201609-201904

44572DCLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2)

main96137-41501i201609-201904

44785DGASKET, BRAKE MASTER CYLINDER

main44785-12040i201609-201904

4708

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-47790i201609-201703

sub47050-47791

main47050-47791i201704-201904

main47050-47860i201609-201703

sub47050-47861

main47050-47861i201704-201904

main47050-47D30i201905-202007

MARK=47210-47D10

main47050-47D70i201905-202007

MARK=47210-47D20

main47050-47F40i202007

MARK=47210-47D40

main47050-47F80i202007

MARK=47210-47D50

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090i201609-201904

main47230-47090i201905

ROUGH ROAD AREA SPEC-WITH

main47230-47090i201905

ROUGH ROAD AREA SPEC-WITH&TIRE & DISC WHEEL-215/45R17 JAPAN/EU 7J ALUMINUM

main47230-47090i201905

TIRE & DISC WHEEL-215/45R17 JAPAN/EU 7J ALUMINUM

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-47010i201609-201904

9017906274

main90179-06274

9018208010

main90182-08010

9415180600

main94151-80600

9415180800

main94151-80800

14 parts on this diagram · 2 diagrams in section
