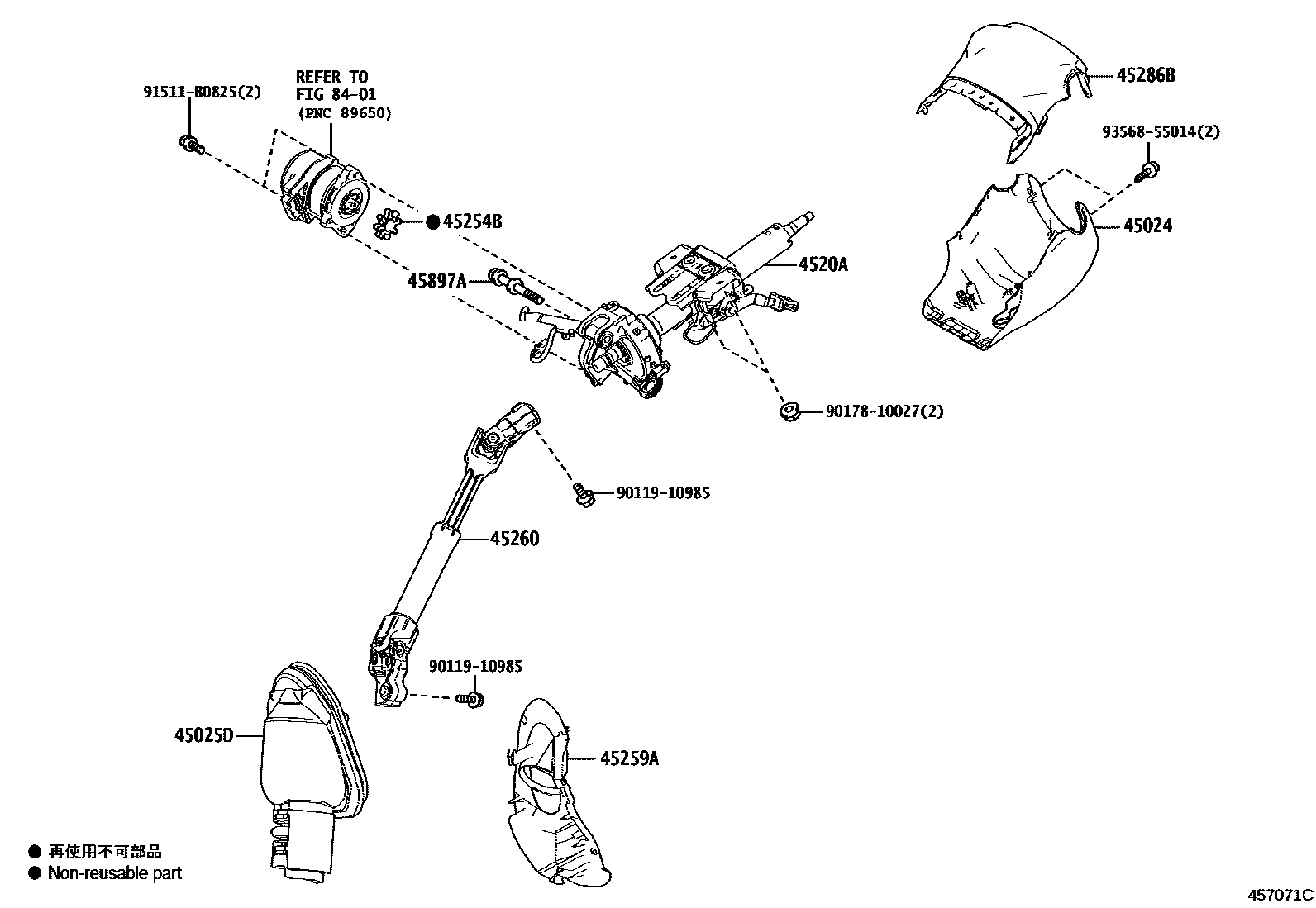

STEERING COLUMN & SHAFT

0001 1 0002 1

45024COVER SUB-ASSY, STEERING COLUMN, LOWER

main45024-47020-C0iZVW52201905

BLACK,TRIM1#,2#

main45024-47020-C0iZVW52201609-201904

BLACK,TRIM1#,2#,4#

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-47030iZVW52..RHD201609-201706

sub45025-47050

main45025-47040iZVW52..LHD201609-201706

sub45025-47060

main45025-47050iZVW52..RHD201707-201904

main45025-47060iZVW52..LHD201707-201904

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-47050iZVW52..RHD201609-201807

sub4520A-47051

main4520A-47051iZVW52..RHD201808-201904

main4520A-47070iZVW52..LHD201609-201807

sub4520A-47071

main4520A-47071iZVW52..LHD201808-201904

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iZVW52201609-201904

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-47040iZVW52..RHD201609-202109

sub45259-47041

main45259-47041iZVW52..RHD202110

main45259-47050iZVW52..LHD201609-202109

sub45259-47051

main45259-47051iZVW52..LHD202110

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-47090iZVW52..LHD201609-201904

main45260-47100iZVW52..RHD201609-201904

45286BCOVER, STEERING COLUMN, UPR

main45286-47050-C0iZVW52201609-201904

BLACK,TRIM1#,2#,4#

main45286-47050-C0iZVW52201905

BLACK,TRIM1#,2#

45897ABOLT, TILT STEERING PAWL SET

main90119-10981iZVW52201609-201904

8401

9011910985

main90119-10985

9017810027

main90178-10027

91511B0825

main91511-B0825

9356855014

main93568-55014

13 parts on this diagram · 2 diagrams in section
